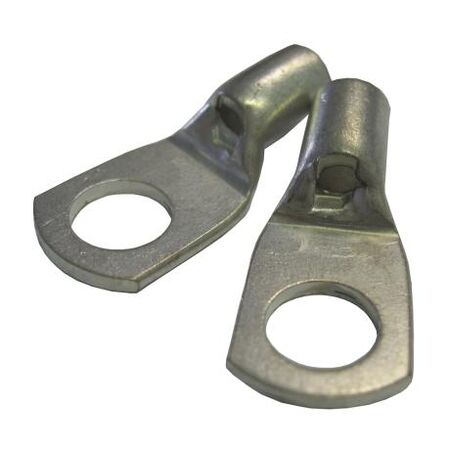

Crimp Lug Copper Standard Non Insulated | 185mm² | M12 Stud | Electro Tinned Finish | by Wattmaster
The Crimp Lug Copper Standard Non Insulated is designed for high conductivity in electrical wiring, featuring 99.9% pure copper and an electro tinned finish for corrosion resistance. Ideal for industrial and commercial applications, this lug ensures secure connections with stranded to fine stranded copper cables, making it a reliable choice for electricians and professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Copper Standard Non Insulated | 185mm² | M12 Stud | Electro Tinned Finish | by Wattmaster
Brand: Wattmaster
SKU: ALCL185M12/6
Alternatively Known As: Copper Crimp Lug, Non-Insulated Copper Lug, Electrical Copper Terminal, Copper Cable Lug
Technical Specifications
- Material: 99.9% pure copper
- Finish: Electro tinned for corrosion resistance
- Stud Size: M12
- Cable Size: 185mm²
- Operating Temperature: –55°C to +155°C
- Suitable for stranded to fine stranded copper cable
- Includes inspection port
- Dimensions (H x L x W): 10mm x 90mm x 40mm
- Weight: 0.15 kg
Key Features
- Non–insulated electro grade copper crimp lugs
- Electro tinned finish for corrosion resistance
- 99.9% copper for high conductivity
- Includes inspection port
- Independently tested and conforms to Australian Standards
- Operating temperature range from –55°C to +155°C
Professional Installation Requirements
- Installation by a qualified electrician or trained professional is recommended to ensure proper crimping and secure electrical connections.
Applications
- Electrical wiring and connections in industrial and commercial installations
- Suitable for use with stranded to fine stranded copper cables
- Electrical panel and switchboard connections requiring high conductivity lugs
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for cable lugs >10mm²
Environmental Benefits
- High purity copper ensures efficient electrical conductivity reducing energy loss
- Electro tinned finish extends product life reducing waste and replacement frequency
Warranty Information
Warranty coverage as per Wattmaster standard terms and conditions.
Available Now
The Wattmaster Crimp Lug Copper Standard Non Insulated 185mm² M12 Stud is available for immediate purchase, ideal for electrical wiring and industrial applications.
