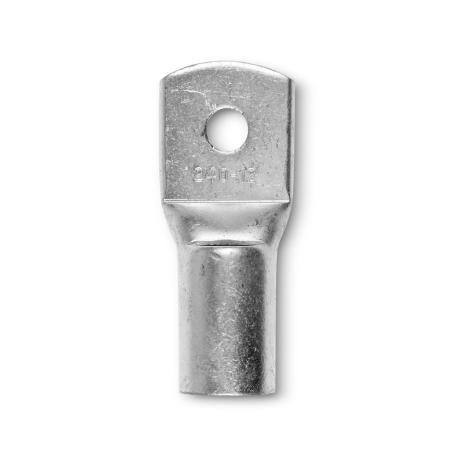

Crimp Lug Copper Standard Non Insulated 240mm² M12 Stud | 99.9% Copper | Electro Tinned Finish | @Each by Wattmaster
The Crimp Lug Copper Standard Non Insulated 240mm² M12 Stud is designed for reliable electrical connections, featuring 99.9% copper for high conductivity and an electro tinned finish for corrosion resistance. Ideal for industrial and commercial electrical installations, this lug ensures optimal performance in a wide range of applications, including stranded to fine stranded copper cables.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Copper Standard Non Insulated 240mm² M12 Stud | 99.9% Copper | Electro Tinned Finish | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCL240M12/6
Alternatively Known As: Copper Crimp Lug, Non-Insulated Copper Lug, Electrical Crimp Terminal, Copper Cable Lug
Technical Specifications
- Material: 99.9% copper with electro tinned finish
- Stud Size: M12
- Cable Size: 240mm²
- Operating Temperature: –55°C to +155°C
- Suitable for stranded to fine stranded copper cable
- Includes inspection port for quality assurance
- Complies with AS/NZS 4325.1:1995 (cl7) for cable lugs >10mm²
- Dimensions (H x L x W): 10mm x 100mm x 40mm
- Weight: 0.15 kg
Key Features
- Non–insulated electro grade copper crimp lugs
- Electro tinned finish for corrosion resistance
- 99.9% copper for high conductivity
- Includes inspection port
- Independently tested and conforms to Australian Standards
- Operating temperature range from –55°C to +155°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and electrical safety.
Applications
- Electrical wiring and cabling connections
- Industrial and commercial electrical installations
- Suitable for stranded to fine stranded copper cables
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for cable lugs >10mm²
Environmental Benefits
- High conductivity reduces energy loss in electrical systems
- Durable electro tinned finish extends product life, reducing waste
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Wattmaster Crimp Lug Copper Standard Non Insulated 240mm² M12 Stud is available for immediate purchase, ideal for electrical wiring and industrial applications.
