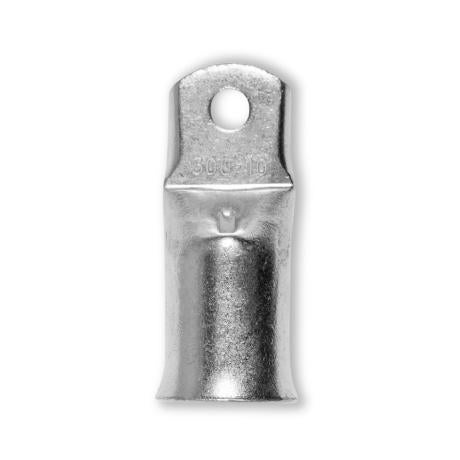

Crimp Lug Copper Standard Non Insulated 300mm² M10 Stud | 99.9% Electro Grade Copper | Electro Tinned Finish | by Wattmaster
The Crimp Lug Copper Standard Non Insulated 300mm² M10 Stud is designed for reliable electrical connections, featuring 99.9% electro grade copper for high conductivity and an electro tinned finish for corrosion resistance. Ideal for industrial and commercial power distribution, this lug ensures secure connections with its inspection port and is suitable for stranded to fine stranded copper cables.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Copper Standard Non Insulated 300mm² M10 Stud | 99.9% Electro Grade Copper | Electro Tinned Finish | by Wattmaster
Brand: Wattmaster
SKU: ALCL300M10/3
Alternatively Known As: Copper Crimp Lug, Non-Insulated Copper Lug, 300mm² Copper Terminal, M10 Stud Lug
Technical Specifications
- Material: 99.9% Electro grade copper
- Finish: Electro tinned for corrosion resistance
- Stud Size: M10
- Cable Size: 300mm²
- Operating Temperature: –55°C to +155°C
- Suitable for stranded to fine stranded copper cable
- Includes inspection port for secure connections
- Dimensions (H x L x W): 10mm x 120mm x 40mm
- Weight: 0.15 kg
Key Features
- Non–insulated electro grade copper crimp lugs
- Electro tinned finish for corrosion resistance
- 99.9% copper for high conductivity
- Includes inspection port
- Independently tested and conforms to Australian Standards
- Operating temperature range from –55°C to +155°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical wiring connections for industrial and commercial power distribution
- Suitable for use with stranded to fine stranded copper cables
- Ideal for electrical panel wiring and grounding applications
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for cable lugs >10mm²
Environmental Benefits
- High conductivity reduces energy loss in electrical systems
- Durable electro tinned finish extends product life, reducing waste
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Wattmaster Crimp Lug Copper Standard Non Insulated 300mm² M10 Stud is available for immediate purchase, ideal for electrical wiring and power distribution applications.
