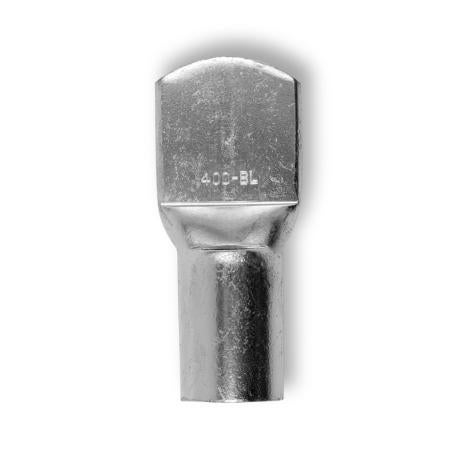

Crimp Lug Copper Standard Non Insulated 400mm² | 99.9% Electro Grade Copper | Electro Tinned Finish | by Wattmaster
The Crimp Lug Copper Standard Non Insulated 400mm² is designed for reliable electrical connections, featuring 99.9% electro grade copper for high conductivity and an electro tinned finish for corrosion resistance. Ideal for industrial and commercial power distribution, this lug is suitable for stranded to fine stranded copper cables, ensuring secure connections with its built-in inspection port.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Copper Standard Non Insulated 400mm² | 99.9% Electro Grade Copper | Electro Tinned Finish | by Wattmaster
Brand: Wattmaster
SKU: ALCL400MB/3
Alternatively Known As: Copper Crimp Lug, Non-Insulated Copper Lug, 400mm² Copper Terminal, Electrical Crimp Connector
Technical Specifications
- Material: 99.9% Electro grade copper
- Finish: Electro tinned for corrosion resistance
- Operating Temperature: –55°C to +155°C
- Compliance: AS/NZS 4325.1:1995 (cl7) for >10mm² cables
- Includes inspection port for secure connections
- Suitable for stranded to fine stranded copper cable
- Dimensions (H x L x W): 10mm x 100mm x 40mm
- Weight: 0.15 kg
Key Features
- Non–insulated electro grade copper crimp lugs
- Electro tinned finish for corrosion resistance
- 99.9% copper for high conductivity
- Includes inspection port
- Suitable for stranded to fine stranded copper cable
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and secure electrical connections.
Applications
- Electrical wiring and connections for industrial and commercial power distribution
- Suitable for use with stranded to fine stranded copper cables
- Ideal for electrical panel wiring, switchboards, and grounding applications
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for cable lugs
Environmental Benefits
- High purity copper ensures efficient electrical conductivity reducing energy loss
- Electro tinned finish extends product life reducing waste and replacement frequency
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Wattmaster Crimp Lug Copper Standard Non Insulated 400mm² Blank is available for immediate purchase, ideal for electrical wiring and power distribution applications.
