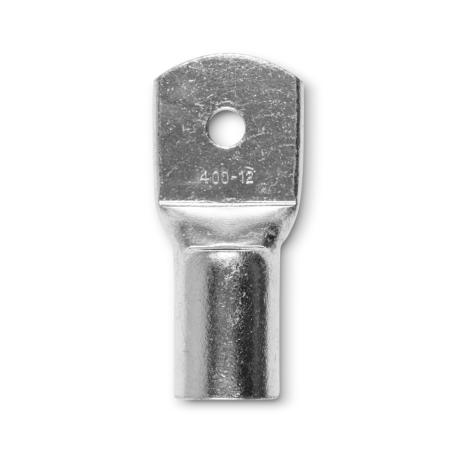

Crimp Lug Copper Standard Non Insulated | 400mm² M12 Stud | Electro Tinned Finish | High Conductivity | @Each by Wattmaster
The Crimp Lug Copper Standard Non Insulated is designed for reliable electrical connections, featuring 99.9% electro grade copper for high conductivity and an electro tinned finish for corrosion resistance. Ideal for industrial and commercial wiring applications, this lug supports stranded to fine stranded copper cables and includes an inspection port for added convenience.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Copper Standard Non Insulated | 400mm² M12 Stud | Electro Tinned Finish | High Conductivity | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCL400M12/3
Alternatively Known As: Copper Crimp Lug, Non-Insulated Copper Lug, 400mm² Copper Lug, M12 Stud Lug
Technical Specifications
- Material: 99.9% Electro grade copper
- Finish: Electro tinned for corrosion resistance
- Stud Size: M12
- Cable Size: 400mm²
- Operating Temperature: –55°C to +155°C
- Suitable for stranded to fine stranded copper cable
- Includes inspection port
- Dimensions (H x L x W): 15mm x 120mm x 50mm
- Weight: 0.15 kg
Key Features
- Non–insulated electro grade copper crimp lugs
- Electro tinned finish for corrosion resistance
- 99.9% copper for high conductivity
- Includes inspection port
- Independently tested and conforms to Australian Standards
- Operating temperature range from –55°C to +155°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical wiring and connections in industrial and commercial installations
- Suitable for use with stranded to fine stranded copper cables
- Electrical grounding and bonding applications
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for crimp lugs >10mm²
Environmental Benefits
- High purity copper ensures efficient electrical conductivity reducing energy loss
- Durable electro tinned finish extends product life reducing waste
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Wattmaster Crimp Lug Copper Standard Non Insulated 400mm² M12 Stud is available for immediate purchase, ideal for electrical wiring and grounding applications in industrial and commercial settings.
