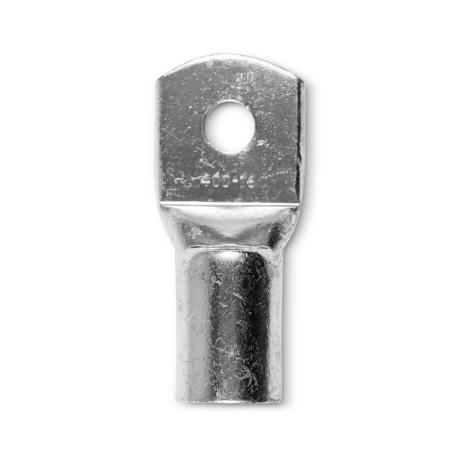

Crimp Lug Copper Standard Non Insulated | 400mm² M16 Stud | Electro Tinned Finish | 99.9% Copper | @Each by Wattmaster
The Crimp Lug Copper Standard Non Insulated is designed for reliable electrical connections, featuring a 400mm² size and M16 stud compatibility. Made from 99.9% pure electro grade copper with an electro tinned finish, it ensures high conductivity and corrosion resistance. Ideal for industrial and commercial wiring applications, this lug includes an inspection port for quality assurance and operates effectively in temperatures ranging from –55°C to +155°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Copper Standard Non Insulated | 400mm² M16 Stud | Electro Tinned Finish | 99.9% Copper | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCL400M16/3
Alternatively Known As: Copper Crimp Lug, Non-Insulated Copper Lug, 400mm² Copper Lug, M16 Stud Lug
Technical Specifications
- Material: Electro grade copper, 99.9% purity
- Finish: Electro tinned for corrosion resistance
- Stud Size: M16
- Cable Size Compatibility: 400mm² stranded to fine stranded copper cable
- Operating Temperature: –55°C to +155°C
- Includes inspection port for quality assurance
- Standard Compliance: AS/NZS 4325.1:1995 (cl7) for cable sizes >10mm²
- Dimensions (H x L x W): 15mm x 100mm x 40mm
- Weight: 0.15 kg
Key Features
- Non–insulated electro grade copper crimp lugs
- Electro tinned finish for corrosion resistance
- 99.9% copper for high conductivity
- Includes inspection port
- Independently tested and conforms to Australian Standards
- Operating temperature range from –55°C to +155°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical wiring and connections in industrial and commercial installations
- Suitable for use with stranded to fine stranded copper cables
- Electrical grounding and bonding applications
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for cable lugs and connectors
Environmental Benefits
- High conductivity reduces energy loss in electrical systems
- Durable electro tinned finish extends product life, reducing waste
Warranty Information
Warranty coverage as per Wattmaster standard terms and conditions.
Available Now
The Wattmaster Crimp Lug Copper Standard Non Insulated 400mm² M16 Stud is available for immediate purchase, ideal for electrical wiring and grounding applications in industrial and commercial settings.
