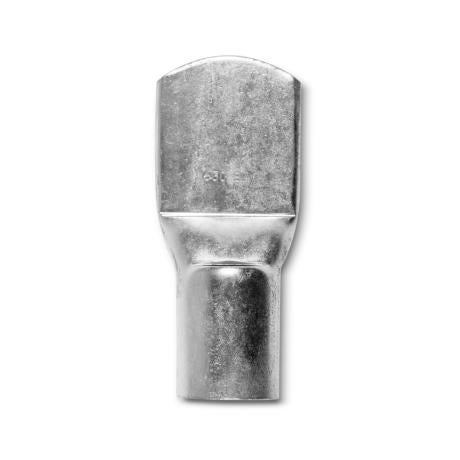

Crimp Lug Copper Standard Non Insulated 630mm² | Electro Tinned Finish | 99.9% Pure Copper | by Wattmaster
The Crimp Lug Copper Standard Non Insulated 630mm² is designed for reliable electrical connections, featuring 99.9% pure copper for high conductivity and an electro tinned finish for corrosion resistance. Ideal for industrial and commercial electrical installations, this lug is suitable for stranded to fine stranded copper cables, ensuring secure and compliant connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Copper Standard Non Insulated 630mm² | Electro Tinned Finish | 99.9% Pure Copper | by Wattmaster
Brand: Wattmaster
SKU: ALCL630MB/3
Alternatively Known As: Copper Crimp Lug, Non-Insulated Copper Lug, Standard Copper Crimp Terminal
Technical Specifications
- Material: 99.9% pure copper
- Finish: Electro tinned for corrosion resistance
- Type: Non-insulated crimp lug
- Cable Size: 630mm²
- Operating Temperature: –55°C to +155°C
- Includes inspection port
- Suitable for stranded to fine stranded copper cable
- Complies with AS/NZS 4325.1:1995 (cl7) (>10mm²)
- Dimensions (H x L x W): 20mm x 120mm x 50mm
- Weight: 0.5 kg
Key Features
- Non–insulated electro grade copper crimp lugs
- Electro tinned finish for corrosion resistance
- 99.9% copper for high conductivity
- Includes inspection port
- Suitable for stranded to fine stranded copper cable
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical connections for stranded to fine stranded copper cables
- Industrial and commercial electrical installations
- Power distribution and grounding systems
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) (>10mm²)
Environmental Benefits
- High purity copper ensures efficient electrical conductivity reducing energy loss
- Durable electro tinned finish extends product life reducing waste
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Wattmaster Crimp Lug Copper Standard Non Insulated 630mm² Blank Palm is available for immediate purchase, ideal for electrical and industrial cable termination applications.
