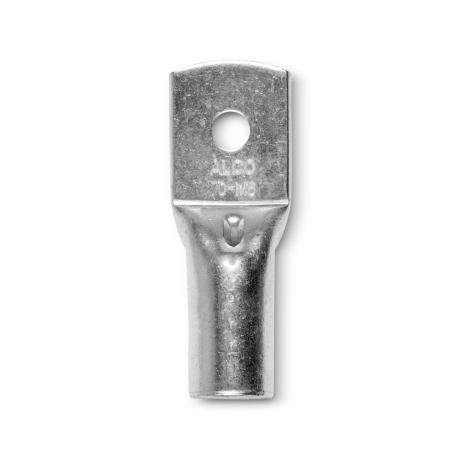

Crimp Lug Copper Standard Non Insulated 70mm² M6 Stud | 99.9% Electro Grade Copper | Electro Tinned Finish | by Wattmaster
The Crimp Lug Copper Standard Non Insulated 70mm² M6 Stud is designed for reliable electrical connections, featuring 99.9% electro grade copper for high conductivity and an electro tinned finish for corrosion resistance. Ideal for industrial and commercial electrical installations, this lug ensures secure connections for stranded to fine stranded copper cables, complying with Australian standards for safety and performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Copper Standard Non Insulated 70mm² M6 Stud | 99.9% Electro Grade Copper | Electro Tinned Finish | by Wattmaster
Brand: Wattmaster
SKU: ALCL70M6/10
Alternatively Known As: Copper Crimp Lug, Non-Insulated Copper Lug, Electrical Crimp Terminal, Copper Cable Lug
Technical Specifications
- Material: 99.9% Electro grade copper
- Finish: Electro tinned for corrosion resistance
- Stud Size: M6
- Cable Size: 70mm²
- Operating Temperature: –55°C to +155°C
- Includes inspection port
- Suitable for stranded to fine stranded copper cable
- Complies with AS/NZS 4325.1:1995 (cl7) for cable lugs >10mm²
- Dimensions (H x L x W): 10mm x 70mm x 20mm
- Weight: 0.1 kg
Key Features
- Non–insulated electro grade copper crimp lugs
- Electro tinned finish for corrosion resistance
- 99.9% copper for high conductivity
- Includes inspection port
- Independently tested and conforms to Australian Standards
- Operating temperature range from –55°C to +155°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical wiring and cabling connections
- Industrial and commercial electrical installations
- Suitable for stranded to fine stranded copper cables
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for cable lugs >10mm²
Environmental Benefits
- High purity copper ensures efficient electrical conductivity reducing energy loss
- Durable electro tinned finish extends product life reducing waste
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Wattmaster Crimp Lug Copper Standard Non Insulated 70mm² M6 Stud is available for immediate purchase, ideal for electrical wiring and industrial applications.
