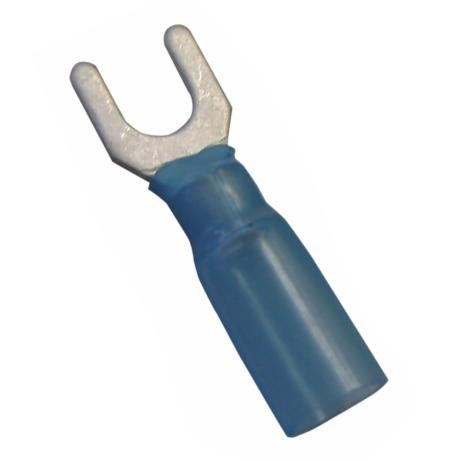

Crimp Terminal Heatshrink Blue Insulated Fork | 5mm Width | 1.5-2.5mm² Cable Compatibility | 600V Rated | by Wattmaster
The Crimp Terminal Heatshrink Blue Insulated Fork is designed for secure electrical connections, compatible with 1.5-2.5mm² cables. With a 5mm fork width and a maximum voltage rating of 600V, these terminals ensure reliable performance in automotive, industrial, and marine applications. The heatshrink insulation provides water resistance and corrosion protection, making them ideal for long-lasting use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Terminal Heatshrink Blue Insulated Fork | 5mm Width | 1.5-2.5mm² Cable Compatibility | 600V Rated | by Wattmaster
Brand: Wattmaster
SKU: ALCHSFB5.0/50
Alternatively Known As: Heatshrink Fork Terminal, Blue Insulated Crimp Terminal, Heat Shrink Fork Connector, 5mm Fork Terminal
Technical Specifications
- Cable size compatibility: 1.5-2.5mm²
- Fork width: 5mm
- Voltage rating: 600V max
- Shrink temperature: +150°C
- Operating temperature: -10°C to +105°C
- Material: Electro tin plated metal with heatshrink insulation
- Dimensions (H x L x W): 15mm x 25mm x 5mm
- Weight: 0.1 kg
Key Features
- Heatshrinkable fork terminals provide water resistant connections
- Single crimp insulation seal for secure attachment
- Electro tin plated for corrosion resistance
- Rated for 600V maximum voltage
- Shrink temperature: +150°C
- Operating temperature range: -10°C to +105°C
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper crimping and heatshrink application for safety and compliance.
Applications
- Electrical wiring connections requiring secure, insulated fork terminals
- Automotive wiring harnesses
- Industrial electrical equipment
- Marine and outdoor electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Heatshrink insulation reduces risk of electrical shorts and corrosion, extending product life and reducing waste
- Electro tin plating enhances corrosion resistance, minimizing replacement frequency
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Crimp Terminal Heatshrink Blue Insulated Fork 5mm Cable 1.5-2.5mm² is available for immediate purchase, ideal for electrical wiring and repair applications.
