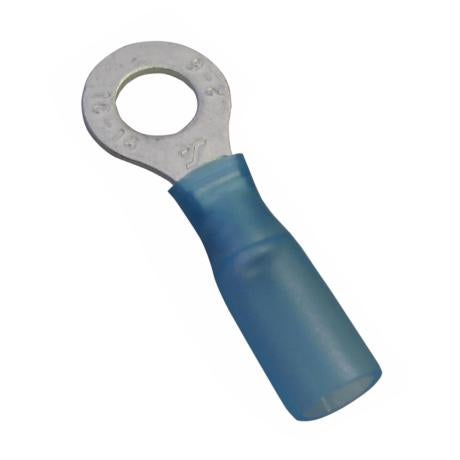

Crimp Terminal Heatshrink Blue Insulated Ring | 4mm Size | 600V Voltage Rating | Water Resistant | @Each by Wattmaster
Crimp Terminal Heatshrink Blue Insulated Ring is designed for secure electrical connections, compatible with 1.5-2.5mm² cables. With a 4mm ring size and a maximum voltage rating of 600V, these terminals ensure water-resistant connections, making them ideal for automotive, industrial, and marine applications. The heatshrink insulation provides added durability and corrosion resistance, ensuring long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Terminal Heatshrink Blue Insulated Ring | 4mm Size | 600V Voltage Rating | Water Resistant | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCHSRB4.0/50
Alternatively Known As: Heatshrink Ring Terminal, Blue Insulated Crimp Terminal, 4mm Ring Terminal, Heat Shrink Electrical Terminal
Technical Specifications
- Cable Size Compatibility: 1.5-2.5mm²
- Ring Size: 4mm
- Voltage Rating: 600V max
- Operating Temperature: -10°C to +105°C
- Shrink Temperature: +150°C
- Material: Electro tin plated copper
- Insulation: Heatshrink blue
- Dimensions (H x L x W): 5mm x 25mm x 10mm
- Weight: 0.1 kg
Key Features
- Heatshrinkable ring terminals provide water resistant connections
- Single crimp insulation seal for secure attachment
- Electro tin plated for corrosion resistance
- Colour coded blue for easy size identification
- Shrink temperature of +150°C
- Operating temperature range from -10°C to +105°C
- Maximum voltage rating of 600V
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper crimping and heatshrink application for safety and compliance.
Applications
- Electrical wiring connections requiring secure, insulated ring terminals
- Automotive wiring harnesses
- Industrial electrical installations
- Marine and outdoor electrical connections needing water resistance
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Heatshrink insulation reduces risk of corrosion and electrical faults, extending product lifespan and reducing waste
- Electro tin plating enhances durability, minimizing replacement frequency
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Crimp Terminal Heatshrink Blue Insulated Ring 4mm Cable 1.5-2.5mm² 50 Pack is available for immediate purchase, ideal for electrical, automotive, and industrial wiring applications.
