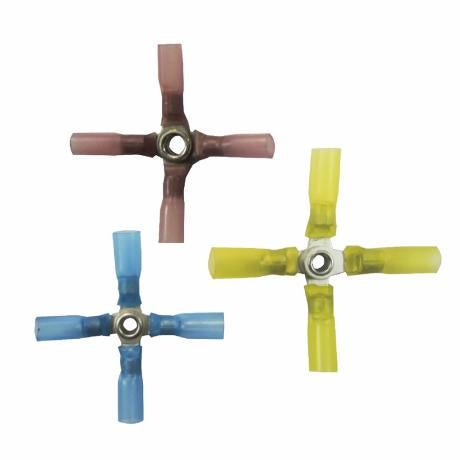

Crimp Terminal Heatshrink Red Insulated 4-Way Cable | 0.5-1.5mm² | 600V Max Voltage | Water Resistant | @Each by Wattmaster
Crimp Terminal Heatshrink Red Insulated 4-Way Cable is perfect for secure electrical connections, featuring a cable size of 0.5-1.5mm² and a maximum voltage of 600V. Designed for automotive and industrial applications, these terminals provide water-resistant connections and are electro tin plated for enhanced corrosion resistance, ensuring durability and reliability in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Terminal Heatshrink Red Insulated 4-Way Cable | 0.5-1.5mm² | 600V Max Voltage | Water Resistant | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCHS4WTR/15
Alternatively Known As: Heatshrink Ring Terminal, Insulated Crimp Terminal, 4-Way Heatshrink Terminal, Red Heatshrink Terminal
Technical Specifications
- Cable Size: 0.5-1.5mm²
- Maximum Voltage: 600V
- Stud Size: 4mm
- Shrink Temperature: +150°C
- Operating Temperature Range: -10°C to +105°C
- Material: Electro tin plated metal with heatshrink insulation
- Dimensions (H x L x W): 10mm x 40mm x 20mm
- Weight: 0.1 kg
Key Features
- Heatshrinkable 3 and 4-way ring terminals provide water resistant connections
- Single crimp insulation seal for secure connection
- Electro tin plated for corrosion resistance
- Colour coded to indicate cable size
- Stud size 4mm
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper crimping and heatshrink application for safety and compliance.
Applications
- Electrical wiring connections requiring secure, water-resistant terminals
- Automotive wiring harnesses
- Industrial and commercial electrical installations
- General electrical maintenance and repair
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Heatshrink insulation reduces risk of corrosion and electrical faults, extending product lifespan and reducing waste
- Electro tin plating enhances durability, minimizing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
The Wattmaster Crimp Terminal Heatshrink Red Insulated 4-Way Cable 0.5-1.5mm² 15 Pack is available for immediate purchase, ideal for electrical wiring and repair applications.
