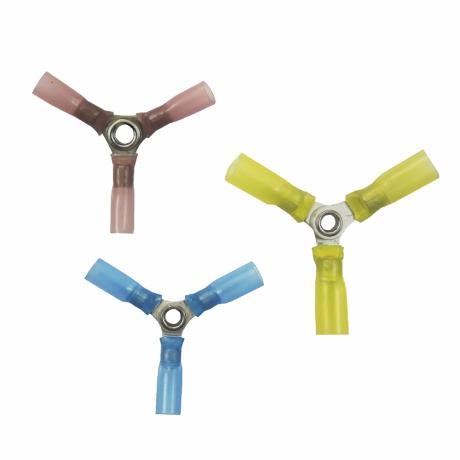

Crimp Terminal Heatshrink Yellow Insulated 3-Way Cable | 4-6mm² | Water Resistant & Corrosion Resistant | @Each by Wattmaster
Crimp Terminal Heatshrink Yellow Insulated 3-Way Cable is designed for secure, water-resistant electrical connections. With a cable size of 4-6mm² and electro tin plating for corrosion resistance, these terminals are perfect for automotive, industrial, and marine applications. Ideal for professional installations, they ensure reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Terminal Heatshrink Yellow Insulated 3-Way Cable | 4-6mm² | Water Resistant & Corrosion Resistant | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCHS3WTY/7
Alternatively Known As: Heatshrink Crimp Terminal, 3-Way Heat Shrink Terminal, Yellow Insulated Ring Terminal, Multi-Way Cable Terminal
Technical Specifications
- Cable Size: 4-6mm²
- Maximum Voltage: 600V
- Stud Size: 4mm
- Shrink Temperature: +150°C
- Operating Temperature Range: -10°C to +105°C
- Electro Tin Plated for corrosion resistance
- Single crimp insulation seal
- Dimensions (H x L x W): 10mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- Heatshrinkable 3 and 4-way ring terminals provide water resistant connections
- Single crimp insulation seal for secure connection
- Electro tin plated for corrosion resistance
- Colour coded to indicate cable size
- Stud size 4mm
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper crimping and electrical safety.
Applications
- Electrical wiring connections requiring secure, water-resistant terminals
- Automotive wiring harnesses
- Industrial and commercial electrical installations
- Marine and outdoor electrical applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Heatshrink insulation reduces risk of corrosion and electrical faults, extending product life and reducing waste
- Electro tin plating enhances durability, minimizing replacement frequency
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Crimp Terminal Heatshrink Yellow Insulated 3-Way Cable 4-6mm² 7 Pack is available now for immediate purchase. Ideal for electrical wiring and connection applications requiring secure, water-resistant terminals.
