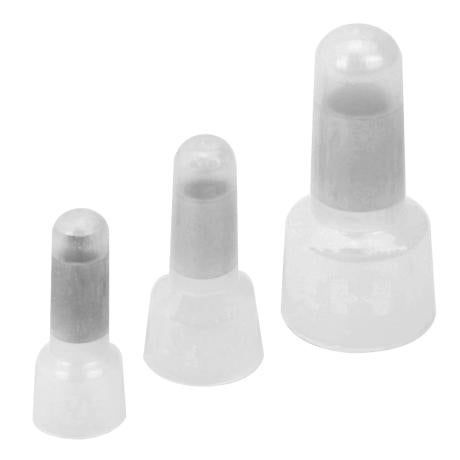

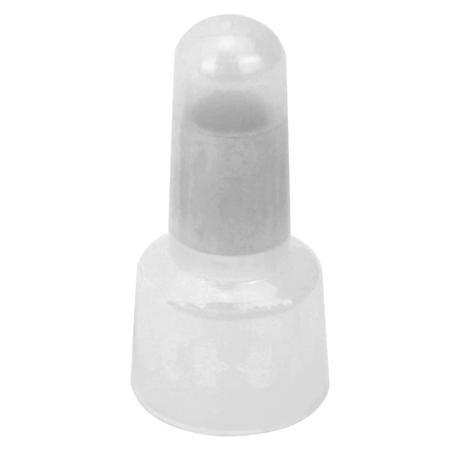

Crimp Terminal Insulated Closed End 10mm² | 300V Rated | Durable Nylon Insulation | @Each by Wattmaster
Crimp Terminal Insulated Closed End 10mm² is perfect for electrical wiring termination, featuring durable translucent nylon insulation and electrolytic copper construction. Rated for 300V and suitable for both industrial and residential applications, these terminals ensure reliable connections for copper cables, making them ideal for electricians and DIY enthusiasts alike.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Terminal Insulated Closed End 10mm² | 300V Rated | Durable Nylon Insulation | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCTCE5/25
Alternatively Known As: Insulated Closed End Crimp Terminal, 10mm² Crimp Terminal, Pre-Insulated Cable Terminal
Technical Specifications
- Material: Electrolytic copper with tin plating
- Insulation: Translucent nylon
- Voltage Rating: 300V
- Maximum Cable Size: 10mm²
- Maximum Operating Temperature: 105°C
- Pack Quantity: 25 terminals
- Dimensions (H x L x W): 5mm x 40mm x 15mm
- Weight: 0.1 kg
Key Features
- Insulated electrolytic copper crimp barrels tinned for corrosion protection
- Suitable for terminating copper cable ends together
- Connector rated 300V
- Durable translucent nylon insulation
- Max rated operating temperature 105°C
- Halogen free
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and electrical safety.
Applications
- Electrical wiring termination for copper cables
- Industrial and residential electrical installations
- Automotive and machinery wiring connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free materials reduce environmental impact and improve safety during disposal
- Durable construction extends product life, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
Wattmaster Crimp Terminal Insulated Closed End 10mm² 300V 25 Pack is available for immediate purchase, ideal for electrical wiring and cable termination applications.
