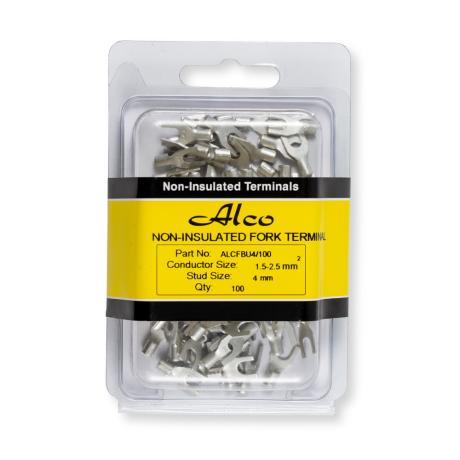

Crimp Terminal Non-Insulated Fork 4mm Cable | Copper with Electro Tinned Finish | 1.5-2.5mm² Compatibility | @Each of 100 | by Wattmaster
Crimp Terminal Non-Insulated Fork 4mm Cable is designed for reliable electrical connections, compatible with 1.5-2.5mm² cables. Made from copper with an electro tinned finish, these terminals ensure high conductivity and durability, making them ideal for both industrial and residential electrical installations. Perfect for use in control panels and switchboards, they provide a secure and easy connection for stranded and fine-stranded cables.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Terminal Non-Insulated Fork 4mm Cable | Copper with Electro Tinned Finish | 1.5-2.5mm² Compatibility | @Each of 100 | by Wattmaster
Brand: Wattmaster
SKU: ALCFBU4/100
Alternatively Known As: Non-Insulated Fork Terminal, Crimp Fork Terminal, Copper Fork Terminal, Electrical Fork Connector
Technical Specifications
- Terminal Type: Non-Insulated Fork
- Cable Size Compatibility: 1.5-2.5mm²
- Fork Stud Size: 4mm
- Material: Copper with electro tinned finish
- Pack Quantity: 100 terminals
- Suitable Cable Range: 0.5 - 6mm²
- Dimensions (H x L x W): 30mm x 40mm x 10mm
- Weight: 0.1 kg
Key Features
- Non-insulated copper terminals suitable for stranded to fine-stranded cable
- Electro tinned finish for high conductivity
- Easy to connect
- Available in either fork or ring
- Fork stud sizes from 3.7 - 6mm
- Suits cable from 0.5 - 6mm²
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Electrical wiring connections for stranded and fine-stranded cables
- Industrial and residential electrical installations
- Suitable for use in control panels, switchboards, and machinery wiring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Electro tinned finish enhances durability, reducing the need for frequent replacements and minimizing waste.
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
Wattmaster Crimp Terminal Non-Insulated Fork 4mm Cable 1.5-2.5mm² 100 Pack is available for immediate purchase, ideal for electrical wiring and connection applications.
