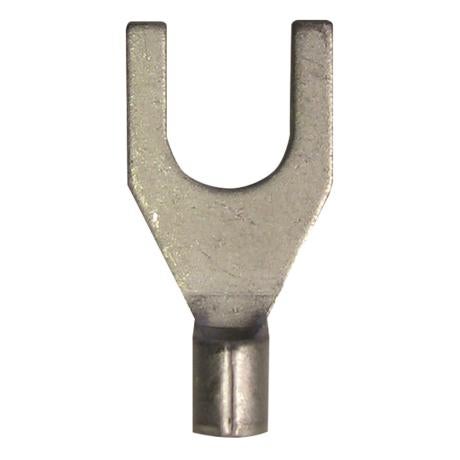

Crimp Terminal Non-Insulated Fork 5mm Cable | Copper with Electro Tinned Finish | 0.5-1.5mm² Compatibility | by Wattmaster
Crimp Terminal Non-Insulated Fork 5mm Cable is designed for reliable electrical connections, compatible with 0.5-1.5mm² stranded and fine-stranded cables. Made from copper with an electro tinned finish, these terminals ensure high conductivity and durability, making them ideal for automotive, industrial, and household electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Terminal Non-Insulated Fork 5mm Cable | Copper with Electro Tinned Finish | 0.5-1.5mm² Compatibility | by Wattmaster
Brand: Wattmaster
SKU: ALCFRU5/100
Alternatively Known As: Non-Insulated Fork Terminal, Crimp Fork Terminal, Copper Fork Terminal, Electrical Fork Connector
Technical Specifications
- Material: Copper with electro tinned finish
- Type: Non-insulated fork terminal
- Cable Size Compatibility: 0.5 - 1.5mm²
- Fork Stud Size: 5mm
- Pack Quantity: 100 terminals
- Dimensions (H x L x W): 20mm x 30mm x 10mm
- Weight: 0.1 kg
Key Features
- Non-insulated copper terminals suitable for stranded to fine-stranded cable
- Electro tinned finish for high conductivity
- Easy to connect

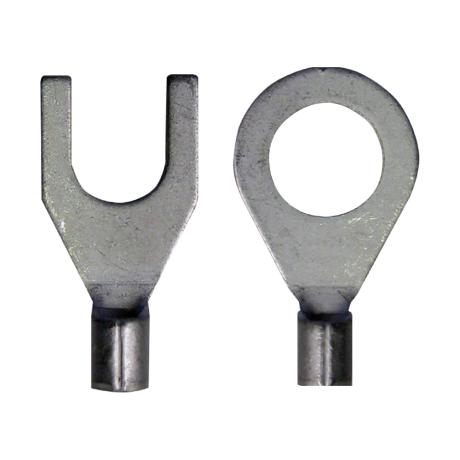

- Available in either fork or ring
- Fork stud sizes from 3.7 - 6mm
- Suits cable from 0.5 - 6mm²
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper crimping and electrical safety.
Applications
- Electrical wiring connections for stranded and fine-stranded cables
- Suitable for automotive, industrial, and household electrical installations
- Used in control panels, switchboards, and electrical equipment
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Electro tinned finish enhances durability, reducing the need for frequent replacements
- Supports efficient electrical connections, minimizing energy loss
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
Wattmaster Crimp Terminal Non-Insulated Fork 5mm Cable 0.5-1.5mm² 100 Pack is available for immediate purchase, ideal for electrical wiring and connection applications.
