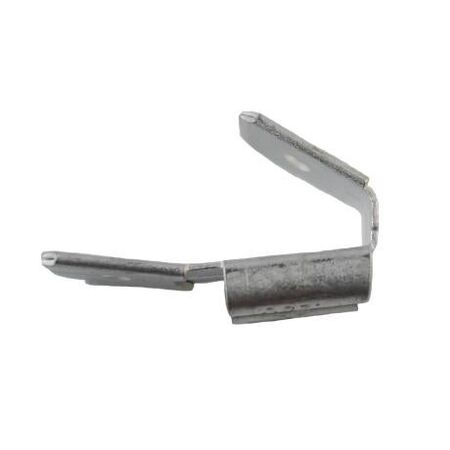

Crimp Terminal Non-Insulated Piggy Back | 6.35mm Width | 1.5-2.5mm² Cable Compatibility | Brass with Electro Tinned Finish | by Wattmaster
Crimp Terminal Non-Insulated Piggy Back is designed for reliable electrical connections, compatible with 1.5-2.5mm² cable sizes. Made from brass with an electro tinned finish, these terminals ensure excellent conductivity and corrosion resistance. Ideal for automotive, industrial, and household applications, they feature male and female configurations for quick disconnects, making them perfect for control panels and junction boxes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Terminal Non-Insulated Piggy Back | 6.35mm Width | 1.5-2.5mm² Cable Compatibility | Brass with Electro Tinned Finish | by Wattmaster
Brand: Wattmaster
SKU: ALCPBU/100
Alternatively Known As: Piggy Back Terminal, Quick Disconnect Terminal, Non-Insulated Crimp Terminal, Electrical Crimp Connector
Technical Specifications
- Terminal Type: Non-insulated piggy back
- Cable Size Compatibility: 1.5-2.5mm²
- Terminal Width: 6.35mm
- Material: Brass with electro tinned finish
- Configuration: Male and female terminals included
- Pack Quantity: 100 pieces
- Dimensions (H x L x W): 15mm x 20mm x 6.35mm
- Weight: 0.1 kg
Key Features
- Non-insulated brass terminals for reliable conductivity
- Suitable for stranded to fine-stranded cable sizes 1.5-2.5mm²
- Electro tinned finish enhances corrosion resistance and conductivity
- Easy to connect with male and female configurations for piggyback connections
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure secure and compliant electrical connections.
Applications
- Electrical wiring connections for automotive, industrial, and household applications
- Suitable for use in control panels and electrical junction boxes
- Ideal for quick disconnect and reconnect of electrical circuits
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Electro tinned finish extends product life reducing waste
- Reusable and recyclable brass material
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Available for immediate purchase, ideal for electrical wiring and connection tasks in residential, commercial, and industrial settings.
