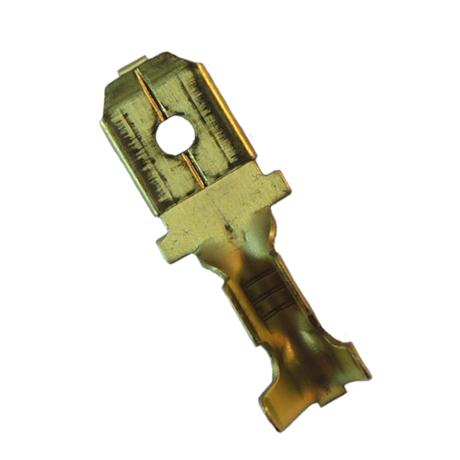

Crimp Terminal Non-Insulated Quick Disconnect | 6.35mm Male Tab | Brass with Electro Tinned Finish | by Wattmaster
Crimp Terminal Non-Insulated Quick Disconnect is designed for reliable electrical connections, featuring a 6.35mm male tab and compatibility with 1.5-2.5mm² cables. Made from durable brass with an electro tinned finish, these terminals ensure excellent conductivity and corrosion resistance, making them ideal for automotive, industrial, and household applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Terminal Non-Insulated Quick Disconnect | 6.35mm Male Tab | Brass with Electro Tinned Finish | by Wattmaster
Brand: Wattmaster
SKU: ALCMDTABU1/100
Alternatively Known As: Quick Disconnect Terminal, Non-Insulated Crimp Terminal, Male Tab Connector, Electrical Crimp Terminal
Technical Specifications
- Terminal Type: Non-insulated quick disconnect
- Tab Size: 6.35mm (0.25 inch) male tab
- Cable Size Compatibility: 1.5-2.5mm²
- Material: Brass with electro tinned finish
- Pack Quantity: 100 terminals
- Dimensions (H x L x W): 0.8mm x 15mm x 6.35mm
- Weight: 0.1 kg
Key Features
- Non-insulated brass terminals for durability and conductivity
- Electro tinned finish enhances corrosion resistance and conductivity
- Designed for easy and secure connection

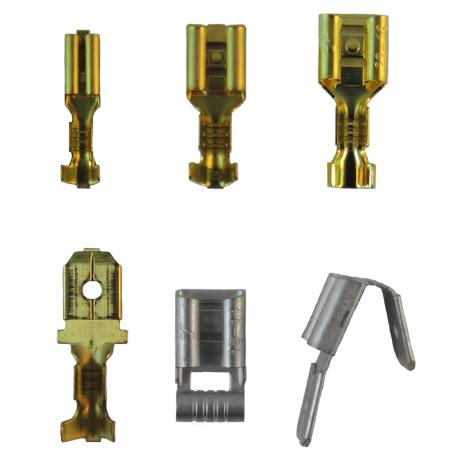

- Available in male and female configurations
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure secure and compliant electrical connections.
Applications
- Electrical wiring connections in automotive, industrial, and household applications
- Suitable for use with stranded to fine-stranded cables
- Quick disconnect applications requiring reliable electrical connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Electro tinned finish extends product life reducing waste
- Non-insulated design reduces use of additional materials
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
Available for immediate purchase, ideal for electrical wiring and quick disconnect applications.
