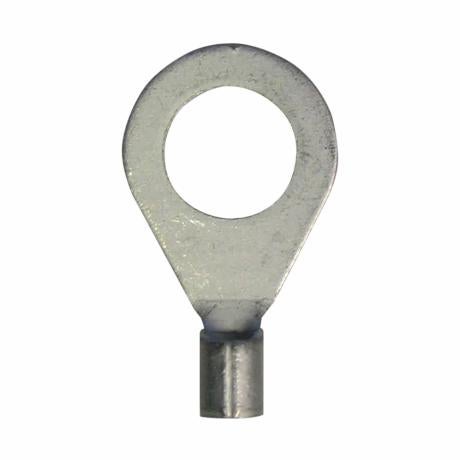

Crimp Terminal Non-Insulated Ring 4mm Cable | Copper with Electro Tinned Finish | 4-6mm² Compatibility | @Each by Wattmaster
Crimp Terminal Non-Insulated Ring 4mm Cable is designed for reliable electrical connections, compatible with 4-6mm² stranded to fine-stranded cables. Made from copper with an electro tinned finish, these terminals ensure high conductivity and durability, making them ideal for automotive, industrial, and household electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Terminal Non-Insulated Ring 4mm Cable | Copper with Electro Tinned Finish | 4-6mm² Compatibility | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCRYU4/100
Alternatively Known As: Non-Insulated Ring Terminal, Crimp Ring Terminal, Copper Ring Terminal, Electrical Ring Connector
Technical Specifications
- Material: Copper with electro tinned finish
- Terminal Type: Non-insulated ring
- Ring Stud Size: 4mm
- Cable Size Compatibility: 4-6mm²
- Pack Quantity: 100 terminals
- Suitable for stranded to fine-stranded cables
- Dimensions (H x L x W): 5mm x 20mm x 10mm
- Weight: 0.1 kg
Key Features
- Non-insulated copper terminals suitable for stranded to fine-stranded cable
- Electro tinned finish for high conductivity
- Easy to connect
- Available in either fork or ring
- Ring stud sizes from 3.7 - 12mm
- Suits cable from 0.5 - 6mm²
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure secure and compliant electrical connections.
Applications
- Electrical wiring connections for stranded to fine-stranded cables
- Suitable for automotive, industrial, and household electrical installations
- Used in electrical panels, machinery, and equipment requiring secure cable connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Electro tinned finish enhances durability, reducing the need for frequent replacements
- Supports efficient electrical connections, minimizing energy loss
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
Wattmaster Crimp Terminal Non-Insulated Ring 4mm Cable 4-6mm² 100 Pack is available now for immediate purchase. Ideal for electrical wiring and connection applications in residential, commercial, and industrial settings.
