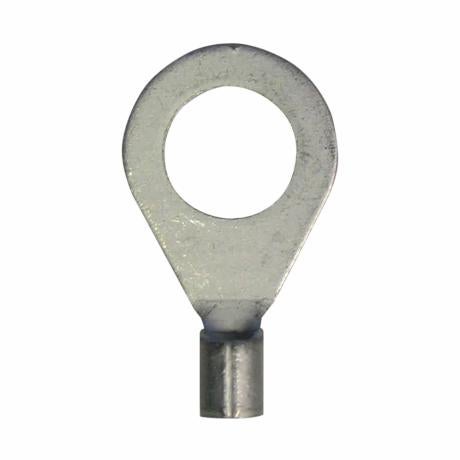

Crimp Terminal Non-Insulated Ring 4mm Cable | Copper with Electro Tinned Finish | 0.5-1.5mm² | @Each by Wattmaster
Crimp Terminal Non-Insulated Ring 4mm Cable is designed for reliable electrical connections, accommodating cable sizes from 0.5 to 1.5mm². Made from copper with an electro tinned finish, these terminals ensure high conductivity and durability, making them ideal for automotive, industrial, and household applications. Perfect for connecting stranded to fine-stranded cables securely, they are a must-have for any electrician's toolkit.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Terminal Non-Insulated Ring 4mm Cable | Copper with Electro Tinned Finish | 0.5-1.5mm² | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCRRU4/100
Alternatively Known As: Non-Insulated Ring Terminal, Copper Crimp Terminal, Electrical Ring Connector
Technical Specifications
- Terminal Type: Non-insulated ring
- Ring Stud Size: 4mm
- Cable Size Range: 0.5-1.5mm²
- Material: Copper with electro tinned finish
- Pack Quantity: 100 pieces
- Dimensions (H x L x W): 20mm x 30mm x 10mm
- Weight: 0.1 kg
Key Features
- Non-insulated copper terminals suitable for stranded to fine-stranded cable
- Electro tinned finish for high conductivity
- Easy to connect
- Available in either fork or ring
- Ring stud sizes from 3.7 - 12mm
- Suits cable from 0.5 - 6mm²
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper crimping and secure electrical connections.
Applications
- Electrical wiring connections for automotive, industrial, and household applications
- Suitable for use in electrical panels, control systems, and machinery
- Ideal for connecting stranded to fine-stranded cables securely
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Electro tinned finish enhances durability, reducing the need for frequent replacements
- Supports efficient electrical connections, minimizing energy loss
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
Wattmaster Crimp Terminal Non-Insulated Ring 4mm Cable 0.5-1.5mm² 100 Pack is available for immediate purchase, ideal for electrical wiring and connection applications.
