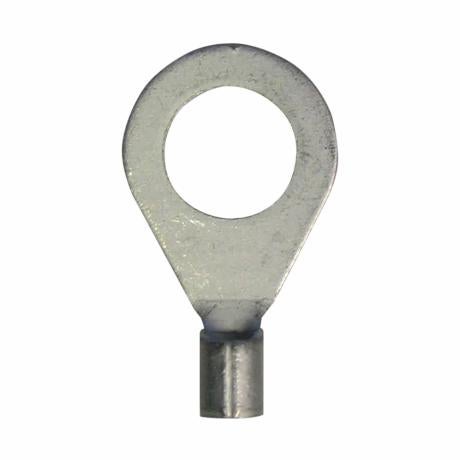

Crimp Terminal Non-Insulated Ring 5mm Cable | Copper with Electro Tinned Finish | Easy to Connect | by Wattmaster
Crimp Terminal Non-Insulated Ring 5mm Cable is designed for reliable electrical connections, compatible with 1.5-2.5mm² cables. Made from copper with an electro tinned finish, these terminals ensure high conductivity and are ideal for automotive, industrial, and household applications. Perfect for qualified electricians, they provide secure connections in electrical panels and machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Terminal Non-Insulated Ring 5mm Cable | Copper with Electro Tinned Finish | Easy to Connect | by Wattmaster
Brand: Wattmaster
SKU: ALCRBU5/100
Alternatively Known As: Non-Insulated Ring Terminal, Crimp Ring Terminal, Copper Ring Terminal, Electrical Ring Connector
Technical Specifications
- Terminal Type: Non-Insulated Ring
- Ring Size: 5mm
- Cable Size Compatibility: 1.5-2.5mm²
- Material: Copper with electro tinned finish
- Pack Quantity: 100 pieces
- Suitable for cable sizes from 0.5 to 6mm²
- Ring stud sizes supported: 3.7 - 12mm
- Dimensions (H x L x W): 20mm x 30mm x 10mm
- Weight: 0.1 kg
Key Features
- Non-insulated copper terminals suitable for stranded to fine-stranded cable
- Electro tinned finish for high conductivity
- Easy to connect

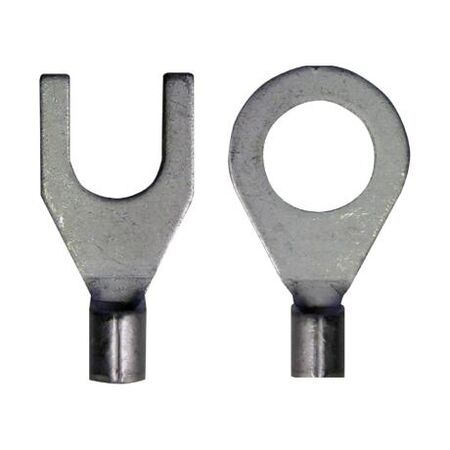

- Available in either fork or ring
- Ring stud sizes from 3.7 - 12mm
- Suits cable from 0.5 - 6mm²
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Electrical wiring connections for stranded to fine-stranded cables
- Suitable for automotive, industrial, and household electrical installations
- Used in electrical panels, machinery, and equipment requiring secure cable connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Electro tinned finish enhances durability, reducing the need for frequent replacements
- Supports efficient electrical connections, minimizing energy loss
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
Wattmaster Crimp Terminal Non-Insulated Ring 5mm Cable 1.5-2.5mm² 100 Pack is available for immediate purchase, ideal for electrical wiring and connection applications.
