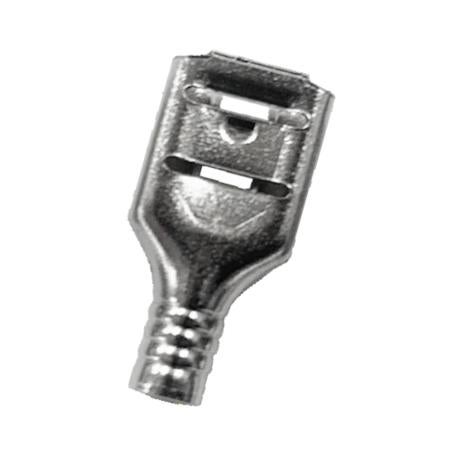

Crimp Terminal Non-Insulated Stove Female Disconnect | 1.5-2.5mm² | 300V Rated | Max Temp 482°C | by Wattmaster
The Crimp Terminal Non-Insulated Stove Female Disconnect is designed for high-temperature electrical connections, accommodating conductor sizes of 1.5-2.5mm² and rated for 300V. With a maximum temperature tolerance of 482°C, this nickel-plated steel terminal is perfect for stove element wiring and other heating appliances, ensuring durability and safety in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Terminal Non-Insulated Stove Female Disconnect | 1.5-2.5mm² | 300V Rated | Max Temp 482°C | by Wattmaster
Brand: Wattmaster
SKU: ALCTSE/20
Alternatively Known As: High Temperature Female Disconnect Terminal, Stove Element Terminal, Non-Insulated Crimp Terminal, Nickel Plated Female Connector
Technical Specifications
- Conductor Size: 1.5-2.5 mm²
- Voltage Rating: 300V
- Maximum Temperature: 482°C
- Material: Steel terminal with nickel plating
- Insulation: Non-insulated
- Halogen Free: Yes
- Dimensions (H x L x W): 25mm x 35mm x 10mm
- Weight: 0.1 kg
Key Features
- Steel terminal nickel plated for high temperature connections
- High temperature female disconnect for 1.5 to 2.5 mm² conductors
- Connector rated for 300V
- Non-insulated design
- Maximum operating temperature rating of 482°C
- Halogen free for safer use
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper connection.
Applications
- Electrical wiring connections in high temperature environments
- Stove element wiring and other heating appliances
- Industrial and domestic electrical installations requiring high temperature rated terminals
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen free construction reduces harmful emissions in case of fire
- Durable nickel plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Crimp Terminal Non-Insulated Stove Female Disconnect 1.5-2.5mm² 300V is available for immediate purchase, ideal for high temperature electrical connection applications.
