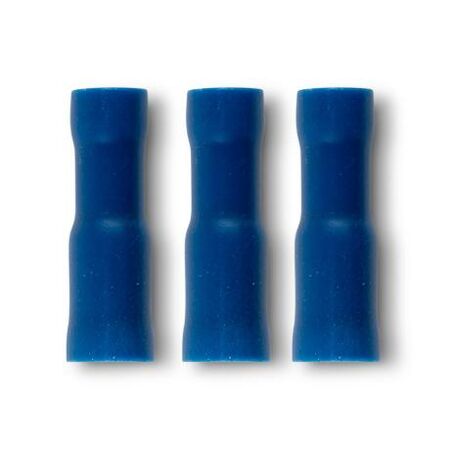

Crimp Terminal Pre-Insulated Bullet Receptacle 4mm | 1.5-2.5mm² Compatibility | Blue Color | by Wattmaster
Crimp Terminal Pre-Insulated Bullet Receptacle 4mm is designed for secure electrical connections, compatible with wire sizes of 1.5-2.5mm². Ideal for automotive, marine, and industrial applications, these terminals feature a durable three-piece construction and color-coded PVC insulation for easy identification. Rated for a maximum voltage of 300V and operating temperatures up to +105°C, they ensure reliable performance in low voltage circuits.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Terminal Pre-Insulated Bullet Receptacle 4mm | 1.5-2.5mm² Compatibility | Blue Color | by Wattmaster
Brand: Wattmaster
SKU: ALCBRB/50
Alternatively Known As: Pre-Insulated Bullet Terminal, Crimp Bullet Connector, Blue Bullet Terminal, Electrical Bullet Receptacle
Technical Specifications
- Terminal Type: Pre-insulated bullet receptacle
- Terminal Size: 4mm
- Wire Size Compatibility: 1.5-2.5mm²
- Insulation Material: PVC
- Voltage Rating: 300V max
- Operating Temperature: +105°C
- Construction: Three-piece design
- Colour: Blue
- Dimensions (H x L x W): 20mm x 30mm x 10mm
- Weight: 0.1 kg
Key Features
- Pre-insulated double crimp terminals for secure and reliable connections
- Three-piece construction enhances durability and performance
- Colour-coded PVC insulation for easy identification
- Easy entry design for quick and efficient installation
- Rated for a maximum voltage of 300V
- Operating temperature up to +105°C
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper connection integrity.
Applications
- Electrical wiring connections in automotive, marine, and industrial applications
- Suitable for use in electrical panels and equipment requiring secure terminal connections
- Ideal for use in low voltage electrical circuits
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Pre-insulated terminals reduce risk of electrical faults and improve safety, minimizing waste from faulty connections
- Durable materials extend product life, reducing replacement frequency
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now

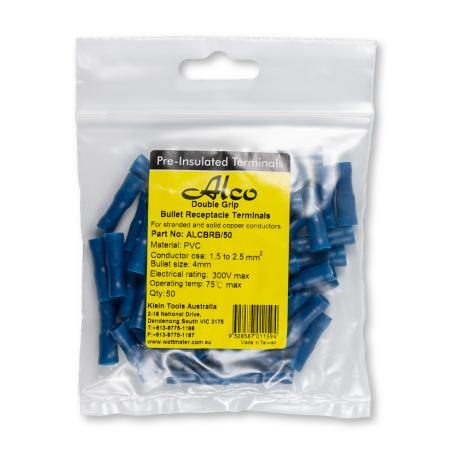

The Wattmaster Crimp Terminal Pre-Insulated Bullet Receptacle 4mm 1.5-2.5mm² Blue 50 Pack is available now for immediate purchase. Ideal for electrical wiring and connection applications in automotive, industrial, and residential settings.
