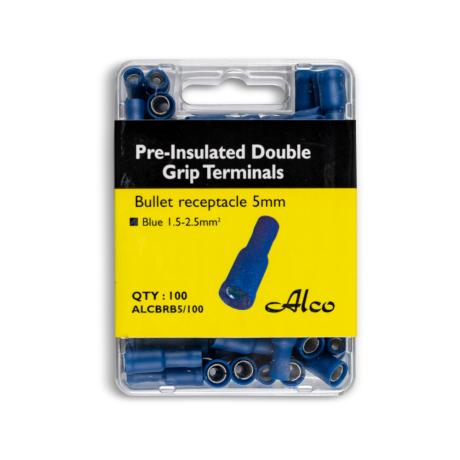

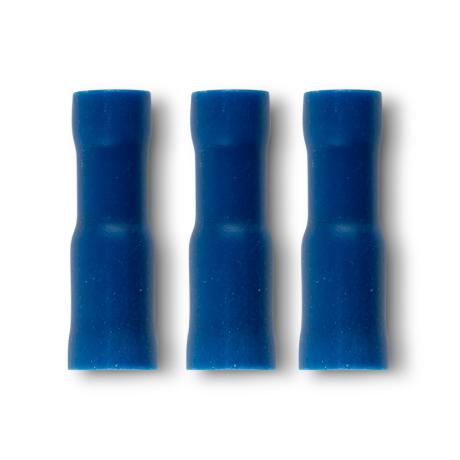

Crimp Terminal Pre-Insulated Bullet Receptacle 5mm | 1.5-2.5mm² Wire Size | 300V Rated | Blue | @Each by Wattmaster
Crimp Terminal Pre-Insulated Bullet Receptacle 5mm is designed for secure electrical connections, accommodating wire sizes from 1.5 to 2.5mm². With a durable three-piece construction and colour-coded PVC insulation, these terminals ensure easy identification and reliable performance in automotive, marine, and industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Terminal Pre-Insulated Bullet Receptacle 5mm | 1.5-2.5mm² Wire Size | 300V Rated | Blue | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCBRB5/100
Alternatively Known As: Pre-Insulated Bullet Terminal, Crimp Bullet Connector, Electrical Bullet Receptacle, Blue Bullet Terminal
Technical Specifications
- Terminal Type: Bullet Receptacle
- Terminal Size: 5mm
- Wire Size Range: 1.5-2.5mm²
- Insulation: Colour-coded PVC
- Voltage Rating: 300V max
- Operating Temperature: +105°C
- Pack Quantity: 100 pieces
- Dimensions (H x L x W): 20mm x 30mm x 10mm
- Weight: 0.1 kg
Key Features
- Pre–insulated double crimp terminals for secure connections
- Three piece construction enhances durability and reliability
- Colour–coded PVC insulation for easy identification
- Easy entry design for quick and efficient installation
- Rated for 300V maximum voltage
- Operating temperature up to +105°C
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper connection integrity.
Applications
- Electrical wiring and connections in automotive, marine, and industrial equipment
- Use in electrical panels and control systems
- Suitable for connecting wires in residential and commercial electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Pre-insulated design reduces risk of electrical faults and waste
- Durable materials extend product life, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Crimp Terminal Pre-Insulated Bullet Receptacle 5mm 1.5-2.5mm² Blue 100 Pack is available now for immediate purchase. Ideal for electrical wiring and connection applications in automotive, industrial, and residential settings.
