Crimp Terminal Pre-Insulated Flat Blade | 10mm Length | 1.5-2.5mm² Cable Compatibility | 600V Rated | by Wattmaster

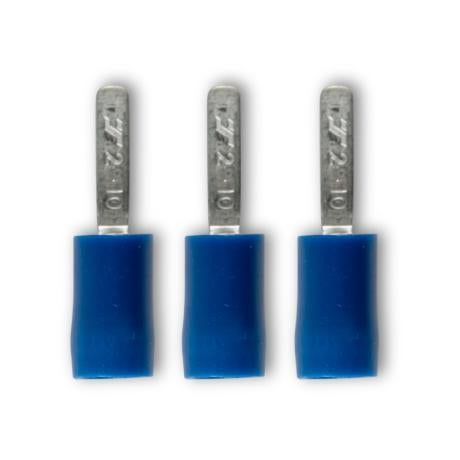

Crimp Terminal Pre-Insulated Flat Blade is designed for secure electrical connections, featuring a 10mm blade length and compatibility with 1.5-2.5mm² cables. Ideal for residential, commercial, and industrial applications, these terminals ensure reliable performance with a maximum voltage rating of 600V and an operating temperature of +105°C. The colour-coded PVC insulation allows for easy identification, making installation efficient and safe.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

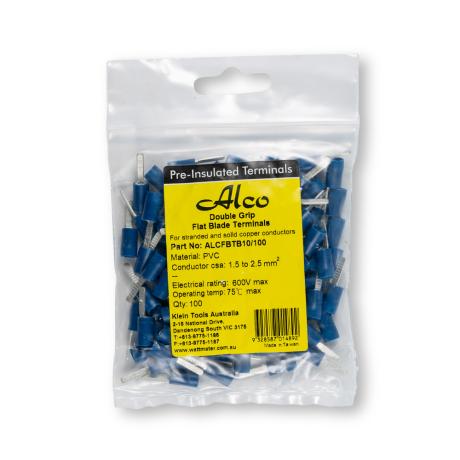

Product Name/Title: Crimp Terminal Pre-Insulated Flat Blade | 10mm Length | 1.5-2.5mm² Cable Compatibility | 600V Rated | by Wattmaster
Brand: Wattmaster
SKU: ALCFBTB10/100
Alternatively Known As: Pre-Insulated Flat Blade Terminal, Crimp Terminal Blue 1.5-2.5mm², Electrical Crimp Connector, Insulated Blade Terminal
Technical Specifications
- Terminal Type: Pre-insulated flat blade
- Blade Length: 10mm
- Cable Size Compatibility: 1.5-2.5mm²
- Voltage Rating: 600V max
- Operating Temperature: +105°C
- Insulation Material: Colour-coded PVC
- Construction: Three-piece
- Dimensions (H x L x W): 5mm x 20mm x 10mm
- Weight: 0.1 kg
Key Features
- Pre-insulated double crimp terminals for secure connections
- Three-piece construction enhances durability and reliability
- Colour-coded PVC insulation for easy identification
- Easy cable entry for efficient installation
- Rated for 600V maximum voltage
- Operating temperature up to +105°C
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards.
Applications
- Electrical wiring and connections in residential, commercial, and industrial settings
- Suitable for use in automotive and machinery electrical systems
- Ideal for secure and insulated cable terminations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- PVC insulation helps prevent electrical shorts and reduces risk of fire
- Durable construction reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster for specific warranty details.
Available Now
Available for immediate purchase, ideal for electrical wiring and connection applications in residential, commercial, and industrial environments.
