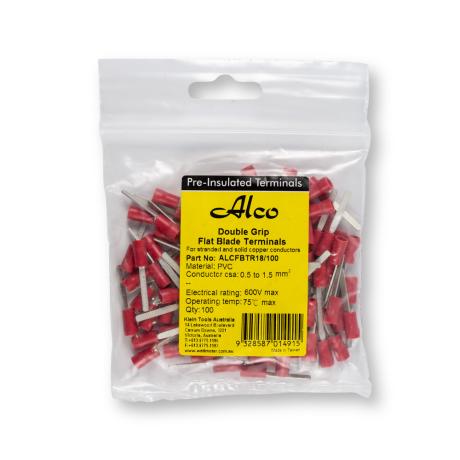

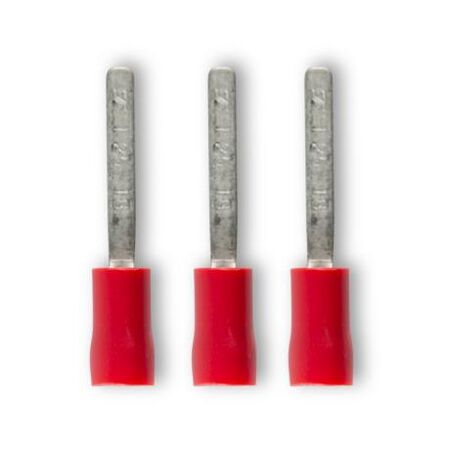

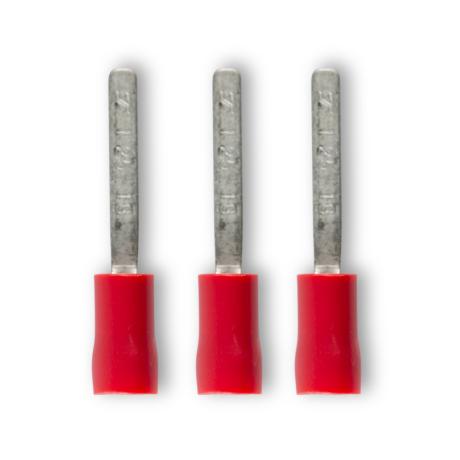

Crimp Terminal Pre-Insulated Flat Blade | 18mm Length | 0.5-1.5mm² Compatibility | PVC Insulation | by Wattmaster
Crimp Terminal Pre-Insulated Flat Blade is designed for secure electrical connections, featuring an 18mm blade length and compatibility with 0.5-1.5mm² cables. Ideal for residential, commercial, and industrial applications, these terminals ensure reliable performance with a maximum voltage rating of 600V and an operating temperature of +105°C. The colour-coded PVC insulation simplifies installation and enhances safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Terminal Pre-Insulated Flat Blade | 18mm Length | 0.5-1.5mm² Compatibility | PVC Insulation | by Wattmaster
Brand: Wattmaster
SKU: ALCFBTR18/100
Alternatively Known As: Pre-Insulated Flat Blade Terminal, Crimp Terminal Connector, Electrical Crimp Terminal, Flat Blade Connector
Technical Specifications
- Terminal Type: Pre-insulated flat blade
- Blade Length: 18mm
- Cable Size Compatibility: 0.5-1.5mm²
- Voltage Rating: 600V max
- Operating Temperature: +105°C
- Insulation Material: PVC
- Construction: Three-piece
- Dimensions (H x L x W): 2mm x 18mm x 6mm
- Weight: 0.1 kg
Key Features
- Pre-insulated double crimp terminals for secure connections
- Three-piece construction enhances durability and reliability
- Colour-coded PVC insulation for easy identification
- Easy cable entry for efficient installation
- Rated for maximum 600V
- Operating temperature up to +105°C
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards.
Applications
- Electrical wiring and connections in residential, commercial, and industrial settings
- Suitable for use in automotive and machinery electrical systems
- Ideal for secure and insulated cable terminations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Pre-insulated design reduces risk of electrical faults and energy loss
- Durable materials extend product life, reducing waste
- Colour-coded insulation aids in correct installation, minimizing errors and rework
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster for specific warranty details.
Available Now
Available for immediate purchase, ideal for electrical wiring and connection applications in residential, commercial, and industrial environments.
