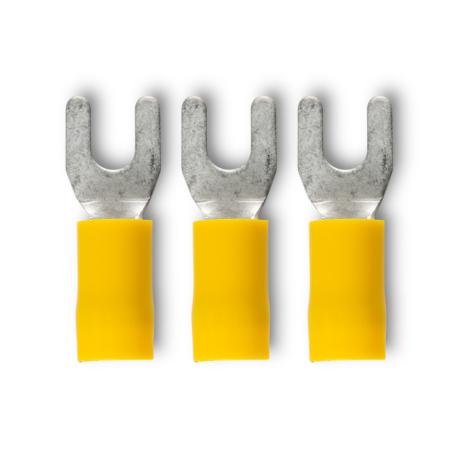

Crimp Terminal Pre-Insulated Fork 4mm Cable | 4-6mm² | 600V Rated | PVC Insulation | by Wattmaster
Crimp Terminal Pre-Insulated Fork 4mm Cable is designed for secure electrical connections, featuring a 4-6mm² cable size and a maximum voltage rating of 600V. Ideal for residential, commercial, and industrial applications, these terminals ensure reliable cable terminations with their durable three-piece construction and colour-coded PVC insulation for easy identification.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Terminal Pre-Insulated Fork 4mm Cable | 4-6mm² | 600V Rated | PVC Insulation | by Wattmaster
Brand: Wattmaster
SKU: ALCFY4/50
Alternatively Known As: Pre-Insulated Fork Terminal, Crimp Fork Terminal, Electrical Fork Connector, Insulated Cable Terminal
Technical Specifications
- Cable Size: 4-6mm²
- Fork Size: 4mm
- Voltage Rating: 600V max
- Operating Temperature: +105°C
- Insulation Material: PVC
- Construction: Three-piece pre-insulated double crimp terminal
- Dimensions (H x L x W): 40mm x 50mm x 10mm
- Weight: 0.1 kg
Key Features
- Pre-insulated double crimp terminals for secure connections
- Three-piece construction enhances durability and reliability
- Colour-coded PVC insulation for easy identification
- Easy cable entry for efficient installation
- Rated for 600V maximum voltage
- Operating temperature up to +105°C
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Electrical wiring and connections in residential, commercial, and industrial settings
- Suitable for use in automotive, machinery, and equipment wiring
- Ideal for secure and reliable cable terminations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Pre-insulated design reduces risk of electrical faults and improves safety
- Durable materials extend product life, reducing waste
- Colour-coded insulation aids in correct installation, minimizing errors and rework
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster for specific warranty details.
Available Now

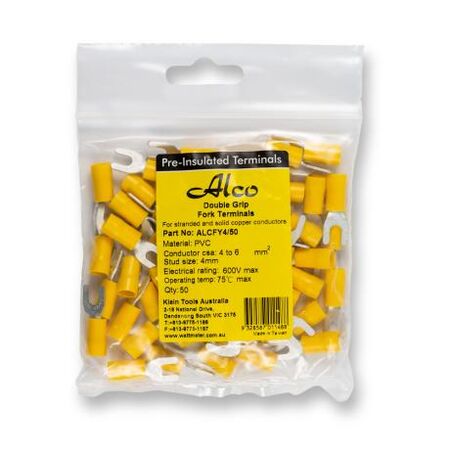

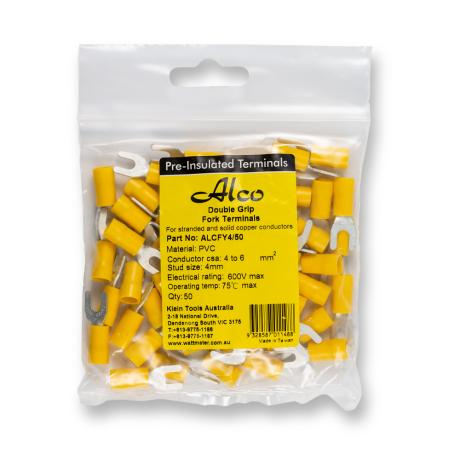

The Wattmaster Crimp Terminal Pre-Insulated Fork 4mm Cable 4-6mm² Yellow 50 Pack is available for immediate purchase, ideal for electrical wiring and connection applications.
