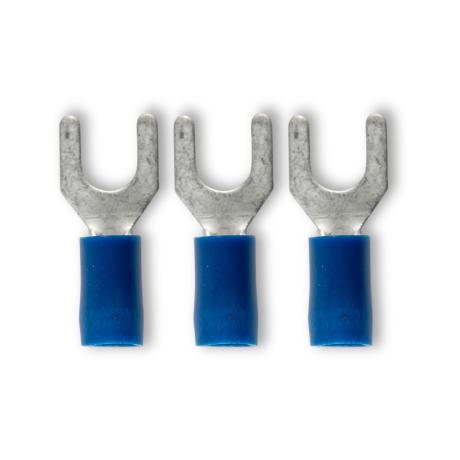

Crimp Terminal Pre-Insulated Fork 5mm Cable | 1.5-2.5mm² | Durable PVC Insulation | 600V Rated | by Wattmaster
Crimp Terminal Pre-Insulated Fork 5mm Cable is designed for secure electrical connections, accommodating cable sizes of 1.5-2.5mm². With durable PVC insulation and a voltage rating of 600V, these terminals are perfect for residential, commercial, and industrial applications. Ideal for electricians, they ensure reliable cable terminations and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Terminal Pre-Insulated Fork 5mm Cable | 1.5-2.5mm² | Durable PVC Insulation | 600V Rated | by Wattmaster
Brand: Wattmaster
SKU: ALCFB5/100
Alternatively Known As: Pre-Insulated Fork Terminal, Crimp Fork Terminal, Blue Fork Terminal, Cable Fork Connector
Technical Specifications
- Cable Size: 1.5-2.5mm²
- Fork Size: 5mm
- Insulation: Colour-coded PVC
- Voltage Rating: 600V max
- Operating Temperature: +105°C
- Construction: Three-piece
- Dimensions (H x L x W): 20mm x 30mm x 5mm
- Weight: 0.1 kg
Key Features
- Pre-insulated double crimp terminals for secure connections
- Three-piece construction enhances durability and reliability
- Colour-coded PVC insulation for easy identification
- Easy cable entry design
- Rated for 600V maximum voltage
- Operating temperature up to +105°C
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards.
Applications
- Electrical wiring and connections in residential, commercial, and industrial settings
- Suitable for use in automotive and machinery electrical systems
- Ideal for secure and reliable cable terminations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Pre-insulated design reduces risk of electrical faults and waste
- Durable materials extend product life and reduce replacement frequency
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now

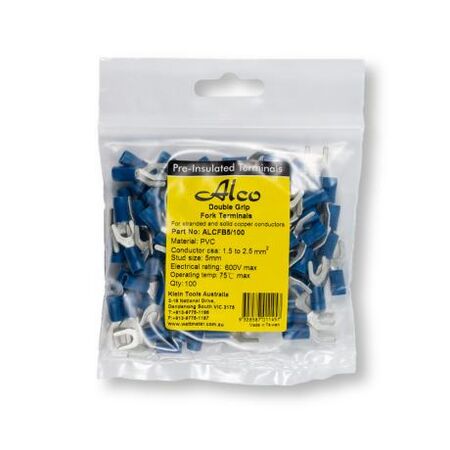

The Wattmaster Crimp Terminal Pre-Insulated Fork 5mm Cable 1.5-2.5mm² Blue 100 Pack is available for immediate purchase, ideal for electrical wiring and connection applications.
