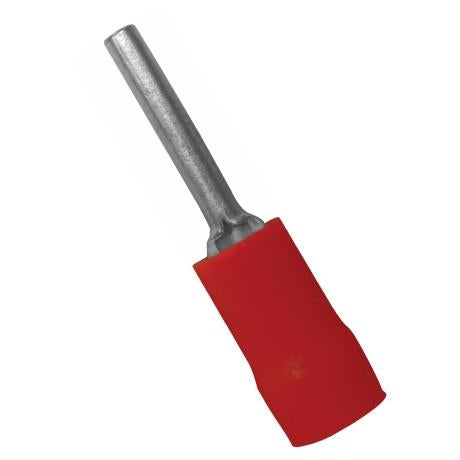

Crimp Terminal Pre-Insulated Pin 0.5-1.5mm² Red | 600V Rated | Durable Three-Piece Construction | @Each by Wattmaster
Crimp Terminal Pre-Insulated Pin 0.5-1.5mm² Red is designed for secure electrical connections, featuring a durable three-piece construction and rated for 600V maximum voltage. Ideal for residential, commercial, and industrial wiring applications, these terminals ensure reliable performance with easy entry design for quick installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Terminal Pre-Insulated Pin 0.5-1.5mm² Red | 600V Rated | Durable Three-Piece Construction | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCPINR/100
Alternatively Known As: Pre-Insulated Pin Terminal, Crimp Pin Terminal, Electrical Crimp Terminal, Insulated Wire Terminal
Technical Specifications
- Wire Size Range: 0.5-1.5mm²
- Voltage Rating: 600V max
- Operating Temperature: +105°C
- Insulation Material: Colour-coded PVC
- Construction: Three piece pre-insulated double crimp terminal
- Dimensions (H x L x W): 30mm x 40mm x 10mm
- Weight: 0.1 kg
Key Features
- Pre–insulated double crimp terminals for secure connections
- Three piece construction enhances durability and reliability

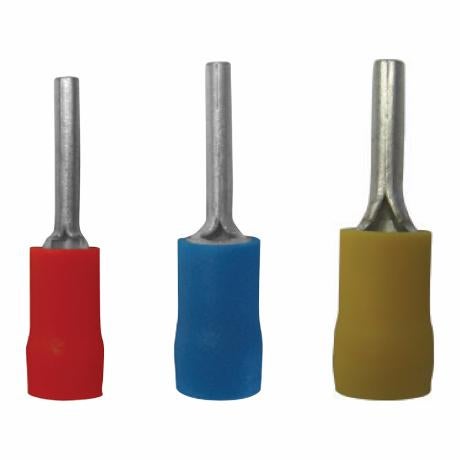

- Colour–coded PVC insulation for easy identification
- Easy entry design for quick and efficient installation
- Rated for 600V maximum voltage
- Operating temperature up to +105°C
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper crimping and electrical safety.
Applications
- Electrical wiring and connections in residential, commercial, and industrial settings
- Used for secure and reliable electrical terminal connections
- Suitable for automotive, machinery, and control panel wiring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- PVC insulation reduces risk of electrical faults and improves safety
- Durable construction reduces need for frequent replacements, minimizing waste
Warranty Information
Warranty against manufacturing defects as per Wattmaster standard policy.
Available Now
The Wattmaster Crimp Terminal Pre-Insulated Pin 0.5-1.5mm² Red 100 Pack is available now for immediate purchase. Ideal for electrical wiring and terminal connection applications.
