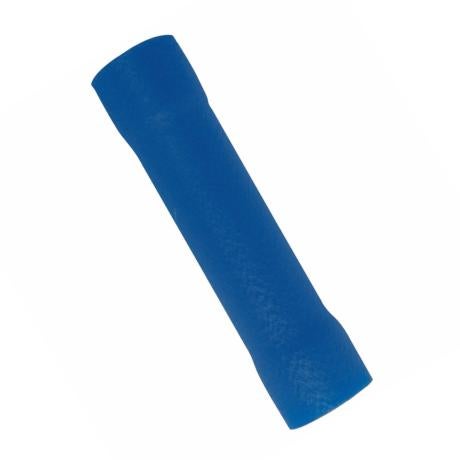

Crimp Terminal Pre-Insulated Splice 1.5-2.5mm² Blue | 600V Rated | Durable Three-Piece Design | @Each by Wattmaster
Crimp Terminal Pre-Insulated Splice 1.5-2.5mm² Blue is designed for secure electrical connections, featuring a durable three-piece construction and rated for 600V maximum voltage. Ideal for residential, commercial, and industrial wiring applications, these terminals ensure reliable splicing and joining of electrical wires, enhancing safety and reducing the risk of faults.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Terminal Pre-Insulated Splice 1.5-2.5mm² Blue | 600V Rated | Durable Three-Piece Design | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCSPLB/12
Alternatively Known As: Pre-Insulated Splice Terminal, Crimp Splice Connector, Electrical Wire Splice Terminal, Blue Insulated Crimp Terminal
Technical Specifications
- Wire Size Range: 1.5-2.5mm²
- Voltage Rating: 600V max
- Operating Temperature: +105°C
- Insulation Material: PVC
- Construction: Three-piece pre-insulated double crimp splice terminal
- Dimensions (H x L x W): 30mm x 50mm x 10mm
- Weight: 0.1 kg
Key Features
- Pre-insulated double crimp splice terminals for secure connections
- Three-piece construction enhances durability and reliability

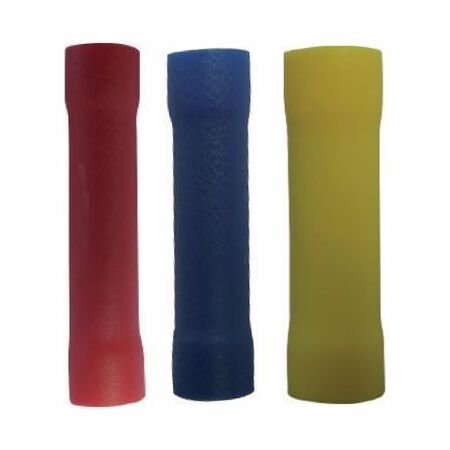

- Colour-coded PVC insulation for easy identification
- Easy wire entry for quick installation
- Rated for 600V maximum voltage
- Operating temperature up to +105°C
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards.
Applications
- Electrical wiring and connections in residential, commercial, and industrial installations
- Splicing and joining electrical wires securely
- Automotive and machinery electrical repairs and maintenance
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Pre-insulated terminals improve safety and reduce risk of electrical faults
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wattmaster Crimp Terminal Pre-Insulated Splice 1.5-2.5mm² Blue 12 Pack is available for immediate purchase, ideal for electrical wiring and splice applications.
