Trade Discount 17%

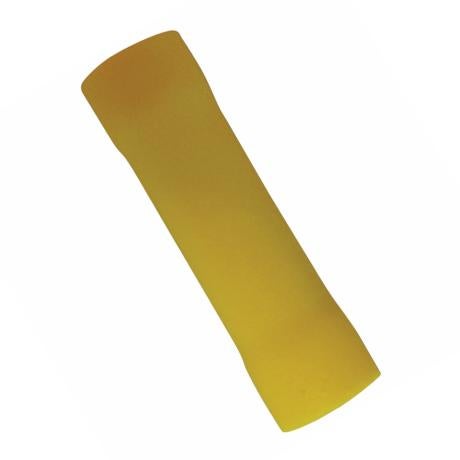

Crimp Terminal Pre-Insulated Splice 4-6mm² Yellow | 600V Rated | PVC Insulation | Durable Three-Piece Design | by Wattmaster
Crimp Terminal Pre-Insulated Splice 4-6mm² Yellow is designed for secure electrical connections, featuring a durable three-piece construction and colour-coded PVC insulation for easy identification. Rated for 600V and capable of operating at temperatures up to +105°C, these terminals are ideal for industrial, commercial, and automotive wiring applications, ensuring reliable performance and safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Terminal Pre-Insulated Splice 4-6mm² Yellow | 600V Rated | PVC Insulation | Durable Three-Piece Design | by Wattmaster
Brand: Wattmaster
SKU: ALCSPLY/50
Alternatively Known As: Pre-Insulated Splice Terminal, Crimp Splice Connector, Electrical Wire Splice Terminal, PVC Insulated Crimp Terminal
Technical Specifications
- Wire Size Compatibility: 4-6mm²
- Voltage Rating: 600V max
- Operating Temperature: +105°C
- Insulation Material: Colour-coded PVC
- Construction: Three piece double crimp splice terminal
- Dimensions (H x L x W): 30mm x 50mm x 10mm
- Weight: 0.1 kg
Key Features
- Pre–insulated double crimp splice terminals for secure connections
- Three piece construction for durability
- Colour–coded PVC insulation for easy identification
- Easy entry design
- Rated for 600V maximum voltage
- Operating temperature up to +105°C
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper crimping technique.
Applications
- Electrical wiring and connections
- Industrial and commercial electrical installations
- Automotive and machinery wiring
- General electrical maintenance and repair
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- PVC insulation helps protect connections, reducing risk of electrical faults and energy loss
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
The Wattmaster Crimp Terminal Pre-Insulated Splice 4-6mm² Yellow 50 Pack is available for immediate purchase, ideal for electrical wiring and splice applications.
