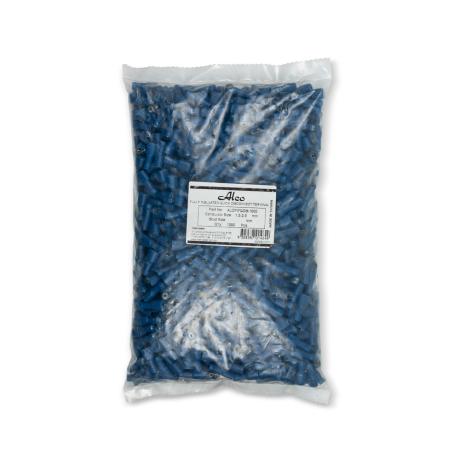

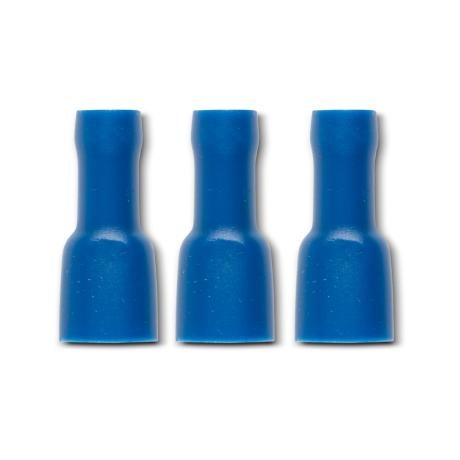

Crimp Terminal Quick Disconnect | Fully Insulated | 1.5-2.5mm² | 6.35mm Width | by Wattmaster
Crimp Terminal Quick Disconnects are designed for secure electrical connections, featuring fully insulated double crimp construction and colour-coded PVC insulation for easy identification. Ideal for automotive, industrial, and household wiring, these terminals ensure reliable performance with a maximum voltage rating of 300V and an operating temperature of +105°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Terminal Quick Disconnect | Fully Insulated | 1.5-2.5mm² | 6.35mm Width | by Wattmaster
Brand: Wattmaster
SKU: ALCFIFQDB/1000
Alternatively Known As: Quick Disconnect Terminal, Fully Insulated Crimp Terminal, Female Quick Disconnect Connector, PVC Insulated Terminal
Technical Specifications
- Conductor Size: 1.5-2.5mm²
- Terminal Width: 6.35mm
- Insulation: Colour-coded PVC
- Operating Temperature: +105°C
- Voltage Rating: 300V max
- Construction: Three piece fully insulated double crimp
- Dimensions (H x L x W): 15mm x 25mm x 6.35mm
- Weight: 0.5 kg
Key Features
- Fully insulated double crimp quick disconnect terminals
- Three piece construction for secure connection
- Colour-coded PVC insulation for easy identification
- Easy entry design
- Operating temperature up to +105°C
- Rated for conductor sizes 1.5-2.5mm²
- Maximum voltage rating of 300V
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper crimping and electrical safety.
Applications
- Electrical wiring connections in automotive, industrial, and household electrical systems
- Quick disconnect applications requiring secure and insulated terminal connections
- Suitable for use in control panels, machinery, and electrical appliances
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- PVC insulation helps prevent electrical shorts and reduces risk of fire
- Durable construction reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Available for immediate purchase, ideal for electrical wiring and quick disconnect applications.
