Crimp Terminal Quick Disconnect | Fully Insulated | 1.5-2.5mm² | 4.8mm Width | Blue | @Each by Wattmaster
Crimp Terminal Quick Disconnects are designed for secure electrical connections, featuring fully insulated double crimp construction for enhanced durability. Ideal for automotive, industrial, and household wiring, these terminals accommodate conductor sizes of 1.5-2.5mm² and are rated for 300V maximum voltage. With easy entry design and color-coded PVC insulation, they ensure quick and efficient installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

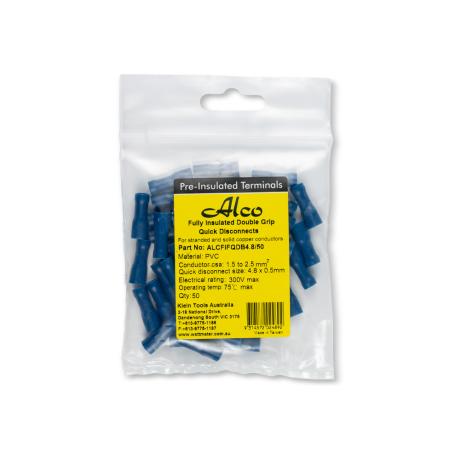

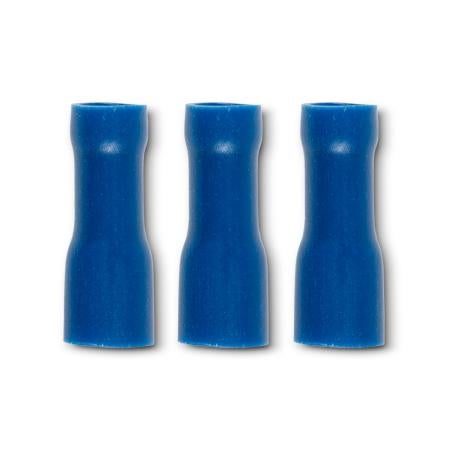

Product Name/Title: Crimp Terminal Quick Disconnect | Fully Insulated | 1.5-2.5mm² | 4.8mm Width | Blue | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCFIFQDB4.8/50
Alternatively Known As: Quick Disconnect Terminal, Fully Insulated Crimp Terminal, Female Spade Connector, PVC Insulated Terminal
Technical Specifications
- Conductor Size: 1.5-2.5mm²
- Voltage Rating: 300V max
- Operating Temperature: +105°C
- Terminal Width: 4.8mm
- Insulation Material: PVC
- Construction: Three piece, fully insulated double crimp
- Dimensions (H x L x W): 10mm x 20mm x 4.8mm
- Weight: 0.1 kg
Key Features
- Fully insulated double crimp quick disconnect terminals for secure connections
- Three piece construction enhances durability and reliability
- Colour-coded PVC insulation for easy identification
- Easy entry design for quick and efficient installation
- Operating temperature up to +105°C
- Suitable for conductor sizes 1.5-2.5mm²
- Rated for 300V maximum voltage
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper crimping and electrical safety.
Applications
- Electrical wiring connections in automotive, industrial, and household electrical systems
- Quick disconnect applications requiring secure and insulated terminal connections
- Suitable for use in control panels, machinery, and electrical appliances
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- PVC insulation helps prevent electrical shorts and reduces risk of fire
- Durable construction reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wattmaster Crimp Terminal Quick Disconnect Fully Insulated 1.5-2.5mm² Female 4.8mm Blue 50 Pack is available now for immediate purchase. Ideal for electrical wiring and quick disconnect applications.
