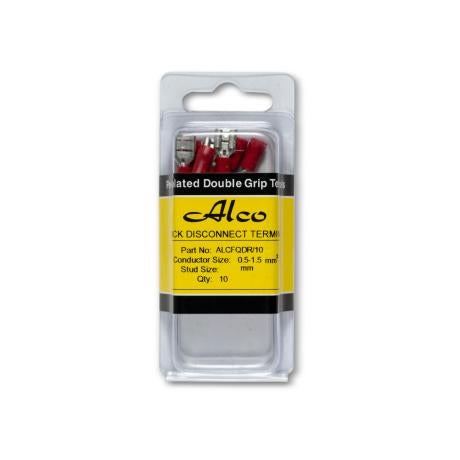

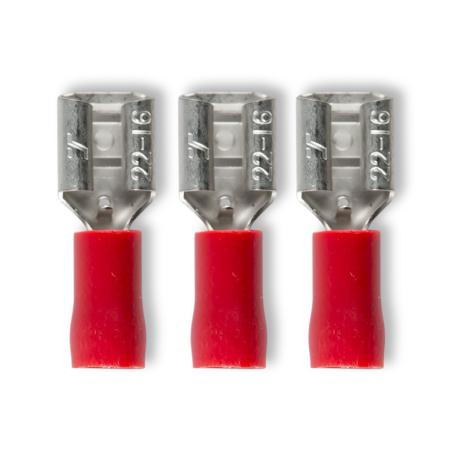

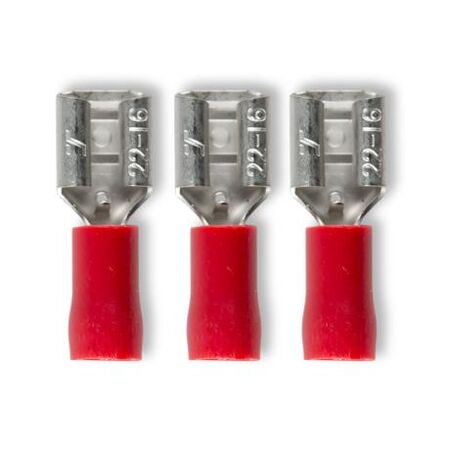

Crimp Terminal Quick Disconnect Insulated | 0.5-1.5mm² | 6.3mm Width | PVC Insulation | by Wattmaster
Crimp Terminal Quick Disconnect Insulated is designed for reliable electrical connections, accommodating conductor sizes of 0.5-1.5mm² with a 6.3mm width. Ideal for automotive, industrial, and household wiring, these terminals feature pre-insulated double crimp construction and colour-coded PVC insulation for easy identification. Rated for a maximum voltage of 300V and operating temperatures up to +105°C, they ensure safety and efficiency in quick disconnect applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Terminal Quick Disconnect Insulated | 0.5-1.5mm² | 6.3mm Width | PVC Insulation | by Wattmaster
Brand: Wattmaster
SKU: ALCFQDR/10
Alternatively Known As: Quick Disconnect Terminal, Insulated Crimp Terminal, Female Quick Disconnect, Electrical Terminal Connector
Technical Specifications
- Conductor Size: 0.5-1.5mm²
- Width: 6.3mm
- Insulation: Colour-coded PVC
- Operating Temperature: +105°C
- Voltage Rating: 300V max
- Construction: Three piece double crimp
- Dimensions (H x L x W): 15mm x 25mm x 6.3mm
- Weight: 0.1 kg
Key Features
- Pre-insulated double crimp quick disconnect terminals
- Three piece construction for secure connection
- Colour-coded PVC insulation for easy identification
- Easy entry design
- Operating temperature up to +105°C
- Rated for conductor sizes 0.5-1.5mm²
- Maximum voltage rating of 300V
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper crimping and electrical safety.
Applications
- Electrical wiring connections in automotive, industrial, and household electrical systems
- Quick disconnect applications requiring insulated terminals
- Suitable for use in control panels and electrical equipment
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Insulation reduces risk of short circuits and electrical faults, enhancing safety and reducing waste from damaged components
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wattmaster Crimp Terminal Quick Disconnect Insulated 0.5-1.5mm² Red is available for immediate purchase, ideal for electrical wiring and quick disconnect applications.
