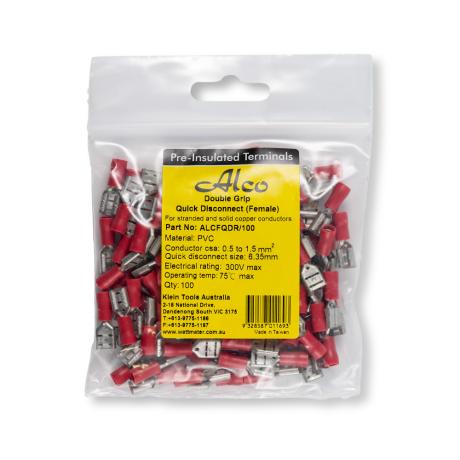

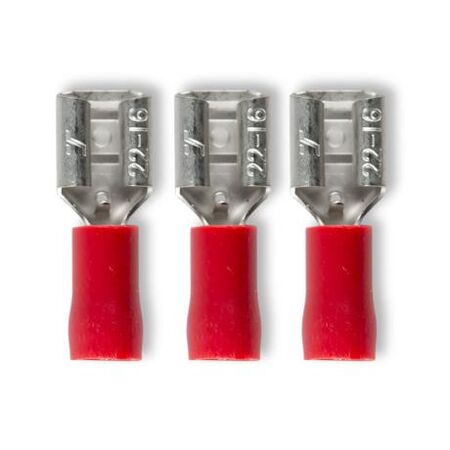

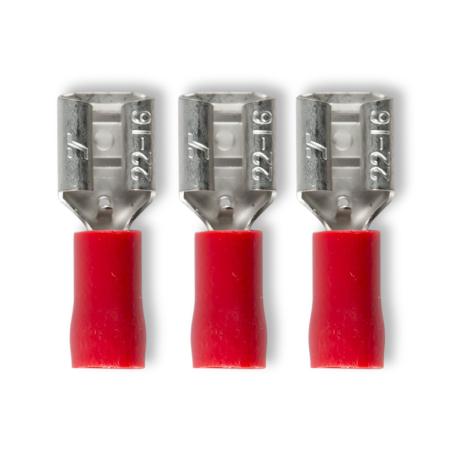

Crimp Terminal Quick Disconnect Insulated | 0.5-1.5mm² | 6.3mm Width | PVC Insulation | by Wattmaster
Crimp Terminal Quick Disconnect Insulated is designed for reliable electrical connections, accommodating conductor sizes from 0.5-1.5mm². With a secure three-piece construction and colour-coded PVC insulation, these terminals are perfect for automotive, industrial, and household applications. Rated for a maximum voltage of 300V and an operating temperature of +105°C, they ensure safety and durability in quick disconnect scenarios.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Terminal Quick Disconnect Insulated | 0.5-1.5mm² | 6.3mm Width | PVC Insulation | by Wattmaster
Brand: Wattmaster
SKU: ALCFQDR/100
Alternatively Known As: Quick Disconnect Terminal, Insulated Crimp Terminal, Female Quick Disconnect Connector, Electrical Terminal Connector
Technical Specifications
- Conductor Size: 0.5-1.5mm²
- Width: 6.3mm
- Operating Temperature: +105°C
- Voltage Rating: 300V max
- Material: PVC insulation with metal terminal
- Construction: Three piece double crimp design
- Dimensions (H x L x W): 15mm x 20mm x 6.3mm
- Weight: 0.1 kg
Key Features
- Pre-insulated double crimp quick disconnect terminals
- Three piece construction for secure connection
- Colour-coded PVC insulation for easy identification
- Easy entry design
- Operating temperature up to +105°C
- Rated for conductor size 0.5-1.5mm²
- Maximum voltage rating of 300V
Professional Installation Requirements
- Installation by a qualified electrician or trained professional is recommended to ensure secure and compliant electrical connections.
Applications
- Electrical wiring connections in automotive, industrial, and household electrical systems
- Quick disconnect applications requiring insulated terminals
- Suitable for use in control panels and electrical equipment
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Insulation reduces risk of short circuits and electrical faults, enhancing safety and reducing waste from damaged components
- Durable PVC insulation extends product life, reducing replacement frequency
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wattmaster Crimp Terminal Quick Disconnect Insulated 0.5-1.5mm² Red 6.3mm Width is available for immediate purchase, ideal for electrical wiring and quick disconnect applications.
