Crimp Terminal Quick Disconnect Insulated | 0.5-1.5mm² | 6.3mm Tab Width | Durable PVC Insulation | by Wattmaster
Crimp Terminal Quick Disconnect Insulated is designed for secure electrical connections, accommodating conductor sizes of 0.5-1.5mm² with a 6.3mm tab width. Ideal for automotive, industrial, and household applications, these terminals feature durable, colour-coded PVC insulation for easy identification and a maximum voltage rating of 300V, ensuring reliable performance in quick disconnect scenarios.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Terminal Quick Disconnect Insulated | 0.5-1.5mm² | 6.3mm Tab Width | Durable PVC Insulation | by Wattmaster
Brand: Wattmaster
SKU: ALCMDTABR/100
Alternatively Known As: Quick Disconnect Terminal, Insulated Male Tab Connector, Crimp Terminal Connector, Electrical Quick Disconnect
Technical Specifications
- Conductor Size: 0.5-1.5mm²
- Tab Width: 6.3mm
- Insulation: Colour-coded PVC
- Operating Temperature: +105°C
- Voltage Rating: 300V max
- Construction: Three-piece, double crimp
- Dimensions (H x L x W): 15mm x 20mm x 6.3mm
- Weight: 0.1 kg
Key Features
- Pre-insulated double crimp quick disconnect terminals for secure connections
- Three-piece construction enhances durability and reliability

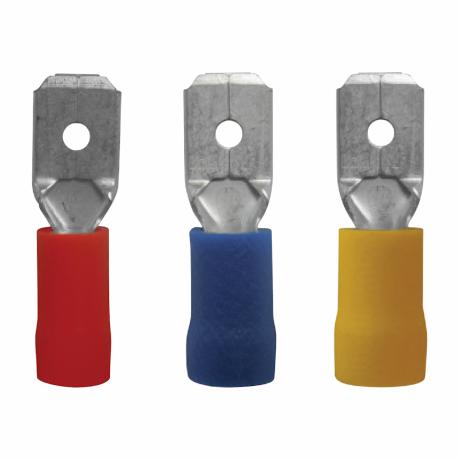

- Colour-coded PVC insulation for easy identification
- Easy entry design for quick and efficient installation
- Operating temperature up to +105°C
- Rated for conductor sizes 0.5-1.5mm²
- Maximum voltage rating of 300V
Professional Installation Requirements
- Installation by a qualified electrician or trained professional is recommended to ensure secure and compliant electrical connections.
Applications
- Electrical wiring connections in automotive, industrial, and household electrical systems
- Quick disconnect applications requiring reliable and insulated terminal connections
- Suitable for use in control panels, machinery, and electrical appliances
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Insulation reduces risk of short circuits and electrical faults, enhancing safety and reducing waste from damaged components
- Durable construction extends product life, reducing replacement frequency
Warranty Information
Warranty terms as provided by Wattmaster, typically covering manufacturing defects.
Available Now

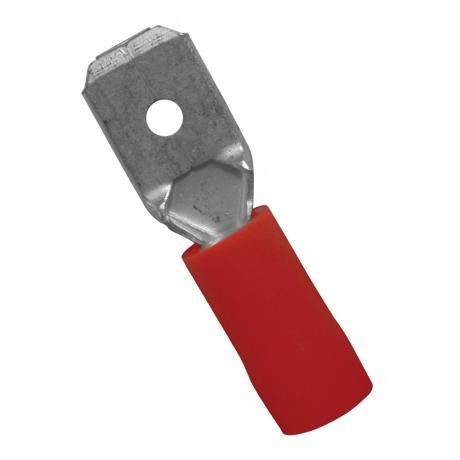

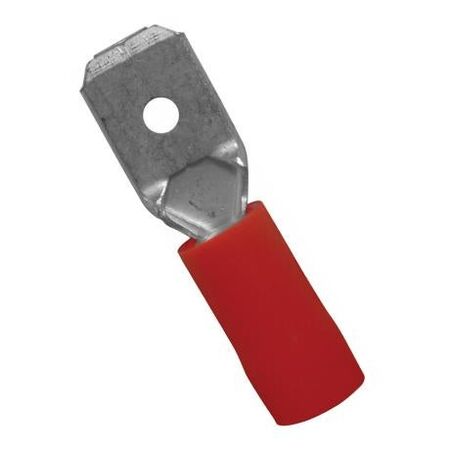

The Wattmaster Crimp Terminal Quick Disconnect Insulated 0.5-1.5mm² Male Tab Width 6.3mm Red is available for immediate purchase, ideal for electrical wiring and quick disconnect applications.
