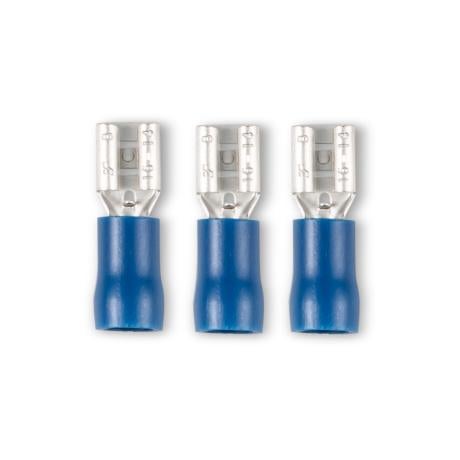

Crimp Terminal Quick Disconnect Insulated | 1.5-2.5mm² | 4.8mm Width | PVC Insulation | by Wattmaster
Crimp Terminal Quick Disconnect Insulated is designed for reliable electrical connections, accommodating conductor sizes of 1.5-2.5mm² with a 4.8mm width. Ideal for automotive, industrial, and household wiring, these terminals feature a durable PVC insulation that enhances safety and prevents electrical shorts. With a maximum voltage rating of 300V and a three-piece construction, they ensure secure and efficient connections for quick disconnect applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Terminal Quick Disconnect Insulated | 1.5-2.5mm² | 4.8mm Width | PVC Insulation | by Wattmaster
Brand: Wattmaster

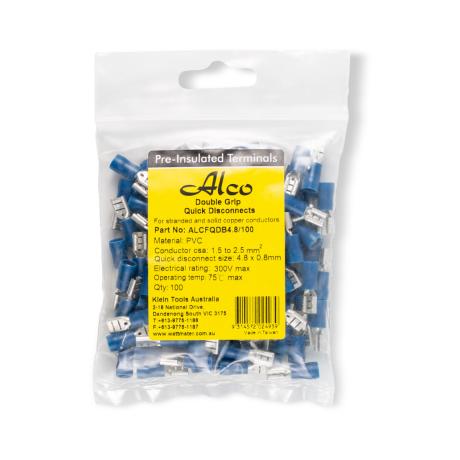

SKU: ALCFQDB4.8/100
Alternatively Known As: Quick Disconnect Terminal, Insulated Crimp Terminal, Blue Quick Disconnect, PVC Insulated Terminal
Technical Specifications
- Conductor Size: 1.5-2.5mm²
- Width: 4.8mm
- Material: PVC insulation with metal terminal
- Operating Temperature: +105°C
- Voltage Rating: 300V max
- Construction: Three piece double crimp
- Dimensions (H x L x W): 8mm x 20mm x 4.8mm
- Weight: 0.1 kg
Key Features
- Pre-insulated double crimp quick disconnect terminals
- Three piece construction for secure connections
- Colour-coded PVC insulation for easy identification
- Easy entry design
- Operating temperature up to +105°C
- Rated for conductor sizes 1.5-2.5mm²
- Maximum voltage rating of 300V
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper crimping and electrical safety.
Applications
- Electrical wiring connections in automotive, industrial, and household electrical systems
- Quick disconnect applications requiring insulated terminals
- Suitable for use in control panels and electrical equipment
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- PVC insulation helps prevent electrical shorts and reduces risk of fire
- Durable construction reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wattmaster Crimp Terminal Quick Disconnect Insulated 1.5-2.5mm² Blue is available for immediate purchase, ideal for electrical wiring and quick disconnect applications.
