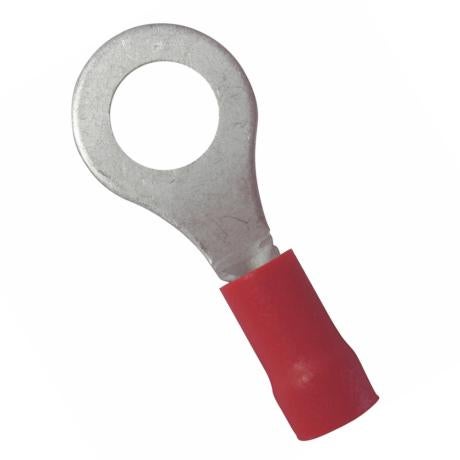

Crimp Terminal Ring 3.7mm | Pre-Insulated | 600V Rated | @Each by Wattmaster

BRAND: Wattmaster
SKU: ALCRR3.7/100
$30.10 List price: $36.40
+

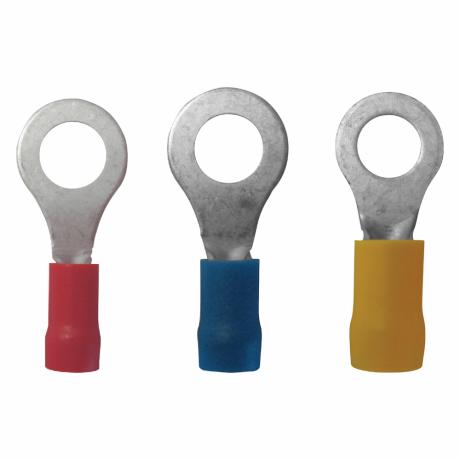

Crimp Terminal Ring 3.7mm is designed for secure electrical connections, accommodating cable sizes from 0.5-1.5mm². With pre-insulated, colour-coded PVC insulation and a robust three-piece construction, these terminals ensure safety and reliability in automotive and industrial applications. Ideal for professional electricians, they comply with AS/NZS 3000 standards for electrical installations.

Product Name/Title: Crimp Terminal Ring 3.7mm | Pre-Insulated | 600V Rated | @Each by Wattmaster

Brand: Wattmaster

SKU: ALCRR3.7/100

Alternatively Known As: Ring Terminal Connector, Pre-Insulated Ring Terminal, Crimp Ring Terminal, Electrical Ring Terminal

Technical Specifications
  • Terminal Size: 3.7mm ring diameter
  • Cable Size Range: 0.5-1.5mm²
  • Insulation: Colour-coded PVC
  • Voltage Rating: 600V max
  • Construction: Three piece double crimp
  • Dimensions (H x L x W): 3mm x 20mm x 10mm
  • Weight: 0.1 kg
Key Features
  • Pre–insulated double crimp ring terminal
  • Three piece construction for secure connection
  • Colour–coded PVC insulation for easy identification
  • Easy entry design
  • Rated for 600V maximum voltage
Professional Installation Requirements
  • Installation by a qualified electrician is recommended to ensure proper crimping and electrical safety.
Applications
  • Electrical wiring connections
  • Automotive wiring
  • Industrial electrical installations
  • General purpose electrical terminations
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • PVC insulation reduces risk of electrical shorts and improves safety
  • Durable construction extends product life reducing waste
Warranty Information

Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.

Available Now

Wattmaster Crimp Terminal Ring 3.7mm 0.5-1.5mm² Cable Red 100 Pack is available for immediate purchase, ideal for electrical wiring and connection applications.
