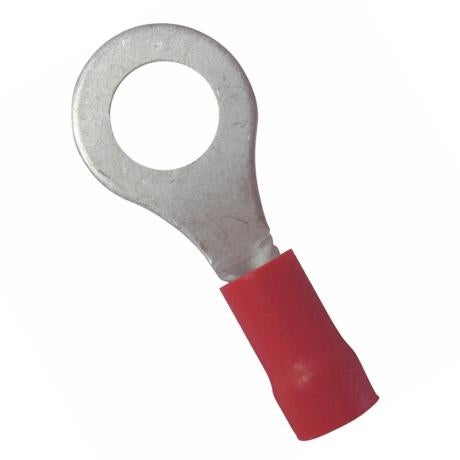

Crimp Terminal Ring 5mm | Pre-Insulated | 600V Rated | @Each by Wattmaster

BRAND: Wattmaster
SKU: ALCRR5/100
$28.80 List price: $34.80
+
Crimp Terminal Ring 5mm is designed for secure electrical connections, featuring a pre-insulated double crimp design and rated for 600V maximum voltage. Ideal for automotive and industrial wiring applications, these terminals ensure reliable performance with colour-coded PVC insulation for easy identification.

Product Name/Title: Crimp Terminal Ring 5mm | Pre-Insulated | 600V Rated | @Each by Wattmaster

Brand: Wattmaster

SKU: ALCRR5/100

Alternatively Known As: Ring Terminal Connector, Pre-Insulated Ring Terminal, Crimp Ring Terminal, Electrical Ring Terminal

Technical Specifications
  • Terminal Type: Ring
  • Ring Size: 5mm
  • Cable Size Range: 0.5-1.5mm²

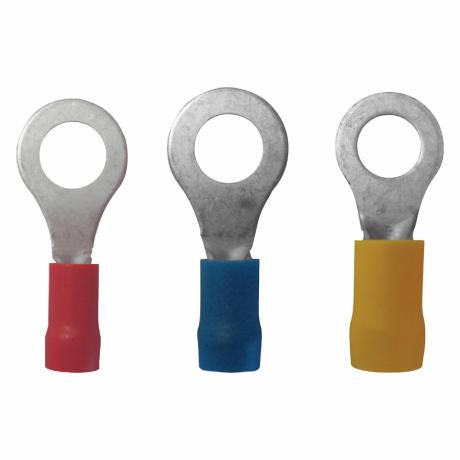

  • Insulation: Colour-coded PVC
  • Voltage Rating: 600V max
  • Construction: Three piece
  • Pack Quantity: 100
  • Dimensions (H x L x W): 20mm x 30mm x 10mm
  • Weight: 0.1 kg
Key Features
  • Pre–insulated double crimp ring terminal
  • Three piece construction for secure connection
  • Colour–coded PVC insulation for easy identification
  • Easy entry design
  • Rated for 600V maximum voltage
Professional Installation Requirements
  • Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards.
Applications
  • Electrical wiring connections
  • Automotive wiring
  • Industrial electrical installations
  • General purpose cable termination
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable PVC insulation reduces need for frequent replacements
  • Supports secure electrical connections reducing energy loss
Warranty Information

Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.

Available Now

The Wattmaster Crimp Terminal Ring 5mm 0.5-1.5mm² Cable Red 100 Pack is available now for immediate purchase. Ideal for electrical wiring and industrial applications.
