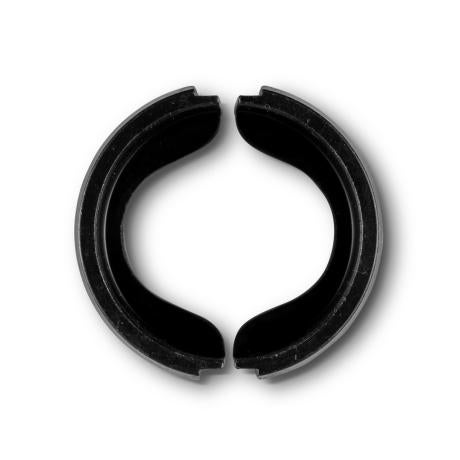

Crimper Die C-Connector Standard 12 Tonne | 120mm² Copper | Hardened Alloy Steel | Compatible with 12T Hydraulic Crimpers | by Wattmaster
The Crimper Die C-Connector Standard 12 Tonne is designed for crimping 120mm² copper conductors, making it ideal for underground earthing and heavy-duty electrical tasks. Crafted from hardened alloy steel with a black finish, this die is compatible with all common U-die 12T hydraulic crimpers, ensuring reliable and efficient connections for professionals in the electrical industry.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimper Die C-Connector Standard 12 Tonne | 120mm² Copper | Hardened Alloy Steel | Compatible with 12T Hydraulic Crimpers | by Wattmaster
Brand: Wattmaster
SKU: ALCK12-C120C
Alternatively Known As: 12 Tonne Crimping Die, Copper C-Connector Crimper Die, Hydraulic Crimping Die 120mm²
Technical Specifications
- Crimping Capacity: 120mm² copper conductors
- Material: Hardened alloy steel with black finish
- Compatible with: 12T hydraulic crimpers and battery/hydraulic crimpers (Izumi style)
- Suitable conductor sizes: 16mm² to 240mm²
- Application: Underground earthing, electrical connector crimping
- Dimensions (H x L x W): 50mm x 200mm x 150mm
- Weight: 1.5 kg
Key Features
- 120mm² Copper C-Connector
- Hardened alloy steel black finish crimping dies
- Compatible with all common U-die 12T hydraulic crimpers
- Also suits battery/hydraulic crimpers (Izumi style)
- Suitable for conductors from 16mm² to 240mm²
Professional Installation Requirements
- Professional use recommended; should be operated by trained personnel familiar with hydraulic crimping tools for safety and optimal performance.
Applications
- Underground earthing applications
- Crimping C profile copper connectors
- Use with 12T hydraulic crimpers for electrical and battery connections
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable hardened alloy steel construction reduces need for frequent replacements
- Supports reliable electrical connections that improve energy efficiency and safety
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Wattmaster Crimper Die C-Connector Standard 12 Tonne Suit 120mm² Copper is available for immediate purchase, ideal for electrical contractors and professionals working on underground earthing and heavy-duty crimping tasks.
