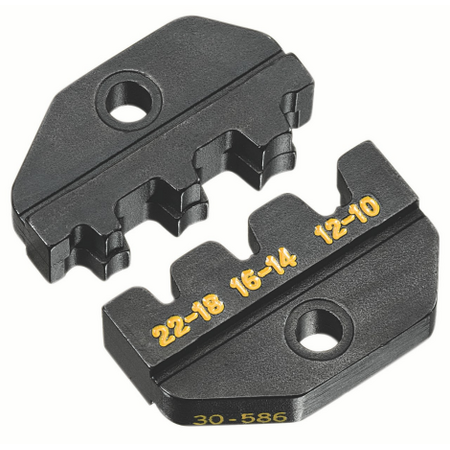

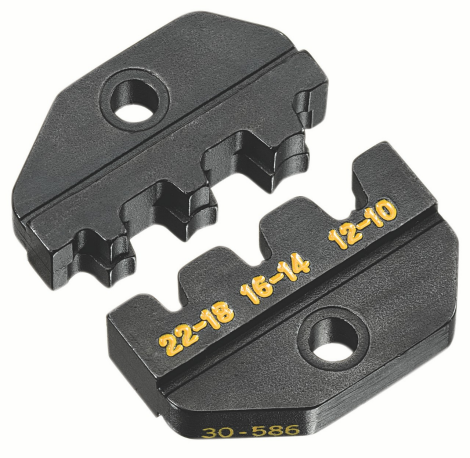

Crimpmaster Die Set for Non-Insulated Open Barrel Terminals | 10-22 AWG | Three Cavity Design | Easy Die Replacement | Black by Ideal Electrical
Crimpmaster die set for non-insulated open barrel terminals, compatible with IDEAL Crimpmaster Ratcheting Crimp Tool. Designed for 10-22 AWG wire gauges, this durable set ensures secure electrical connections, making it ideal for electricians and professionals in commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimpmaster™ Die Set Non-Insulated Open Barrel Terminals 10-22 AWG
Brand: Ideal Electrical
SKU: IDL30-586
Alternatively Known As: Crimp Die Set, Non-Insulated Terminal Die, Open Barrel Terminal Crimp Die, Crimpmaster Replacement Die
Technical Specifications
- Wire Gauge Range: 10-22 AWG
- Die Type: Non-insulated open barrel terminal
- Compatibility: IDEAL® Crimpmaster™ Ratcheting Crimp Tool (30-506 frame)
- Die Cavities: Three cavity die for 22-12 AWG
- Installation: Dieset removable and replaceable with screwdriver
- Colour: Black
- Insulation: No
- Dimensions (H x L x W): 30mm x 150mm x 100mm
- Weight: 0.2 kg
Key Features
- Terminal die-set compatible with IDEAL® Crimpmaster™ Ratcheting Crimp Tool
- Interchangeable diesets with 30-506 Crimpmaster tool frame
- Three cavity die for 22-12 AWG wire sizes
- Easy die removal and replacement using a slotted or Phillips screwdriver
- General purpose dieset not intended for calibrated tool applications
Professional Installation Requirements
- Recommended to be installed and used by qualified electricians or trained professionals to ensure proper crimping and electrical safety.
Applications
- Use with IDEAL® Crimpmaster™ Ratcheting Crimp Tool for crimping non-insulated open barrel terminals
- Suitable for commercial type connectors
- General purpose crimping for 10-22 AWG wire gauges
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces waste by extending tool life
- Enables precise crimping to ensure secure electrical connections, reducing risk of failures and rework
Warranty Information
Limited 1 Year warranty.
Available Now
The Crimpmaster™ Die Set Non-Insulated Open Barrel Terminals 10-22 AWG is available for immediate purchase, ideal for electrical professionals requiring reliable crimping dies for commercial connectors.
