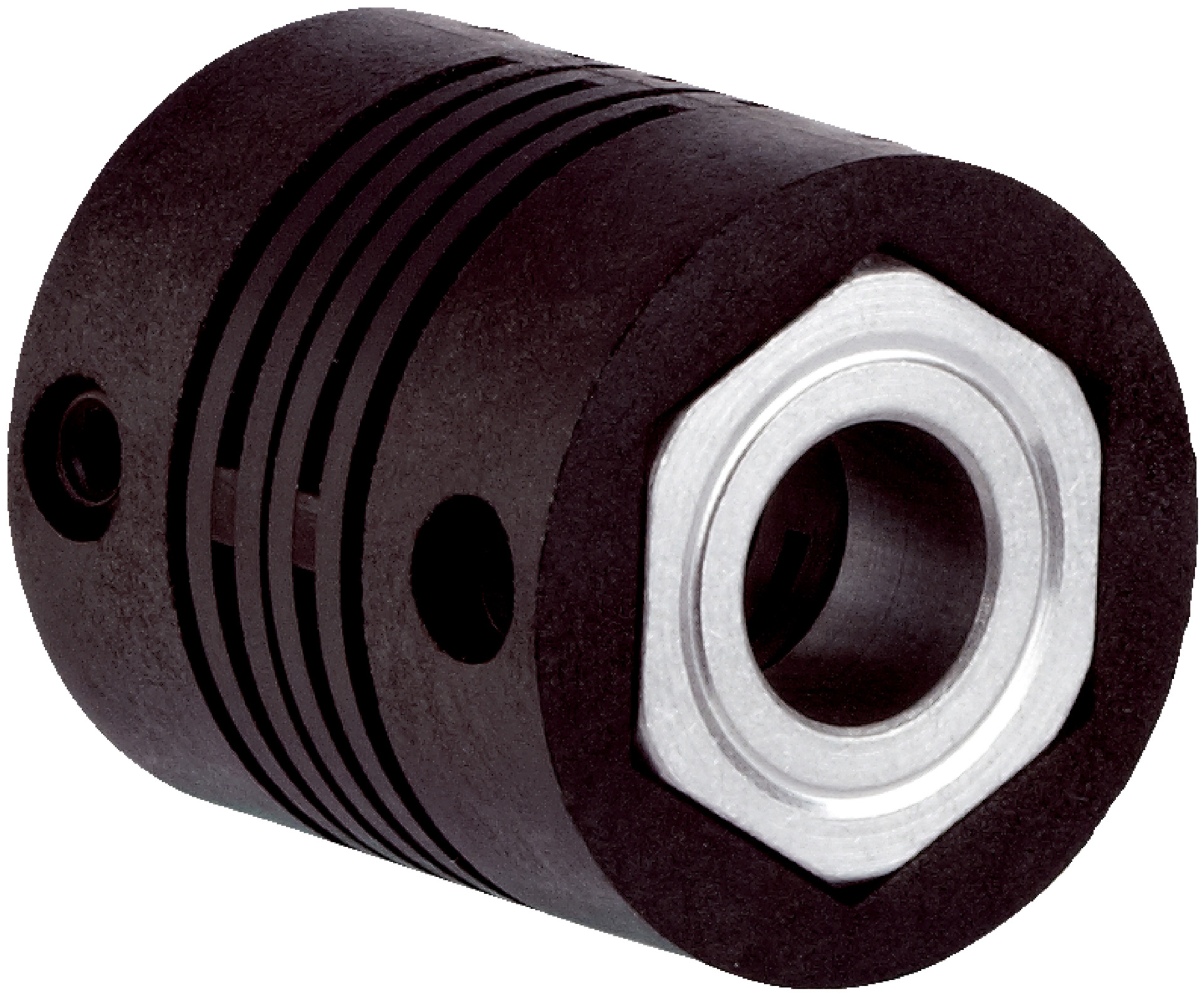

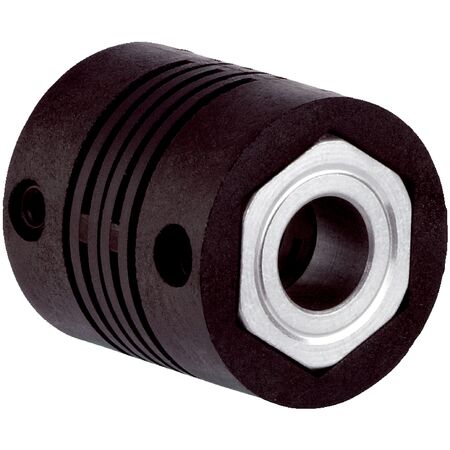

Cross-Slotted Shaft Coupling KUP-0606-S | Maximum Speed 10,000 RPM | 80 Ncm Torque | by SICK
The KUP-0606-S cross-slotted shaft coupling is engineered for mechanical power transmission systems, featuring a maximum speed of 10,000 RPM and a torque capacity of 80 Ncm. With a robust design made from fiber-glass reinforced polyamide and aluminum, it ensures precise shaft alignment in industrial machinery and automation applications, making it a reliable choice for engineers and technicians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Shaft diameter: 6 mm / 6 mm
- Maximum shaft offset: radial ±0.3 mm, axial ±0.2 mm, angular ±3°
- Maximum speed: 10,000 rpm
- Operating temperature: –10° to +80 °C
- Maximum torque: 80 Ncm
- Material: fiber-glass reinforced polyamide, aluminum hub
- Dimensions (H x L x W): 20mm x 30mm x 30mm
- Weight: 0.1 kg
Key Features
- Cross-slotted coupling design
- Maximum shaft offset: radial ±0.3 mm, axial ±0.2 mm, angular ±3°
- Maximum speed up to 10,000 rpm
- Operating temperature range from –10° to +80 °C
- Maximum torque capacity of 80 Ncm
- Constructed from fiber-glass reinforced polyamide with aluminum hub
Professional Installation Requirements
- Installation by qualified mechanical technician recommended to ensure proper shaft alignment and coupling performance.
Applications
- Mechanical power transmission systems
- Shaft alignment and adaptation in industrial machinery
- Automation and robotics requiring precise shaft coupling
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Lightweight design contributes to energy-efficient machinery operation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK KUP-0606-S shaft coupling is available for immediate purchase, ideal for industrial and automation applications requiring precise shaft adaptation.
