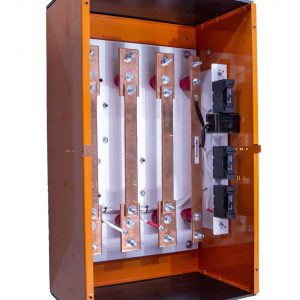

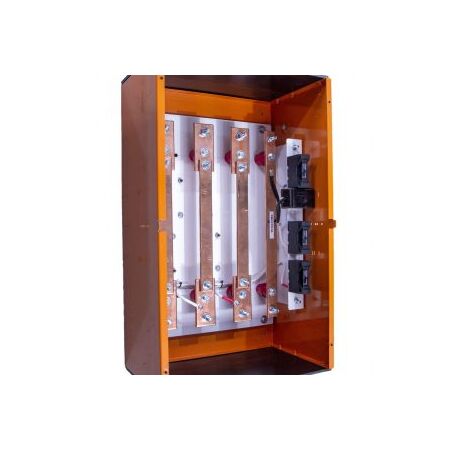

CT Chamber 630A 850x600x250mm Type T Tray Orange Bovara
Bovara 630A CT chamber features 850H x 600W x 250D 2mm mild steel body, IP20, split gland plates and Type T CT tray, X15 orange gloss. CTs not included.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 630A CT Chamber, Type T CT Enclosure, CT Metering Chamber, CT Metering Cubicle
Technical Specifications
- Current Rating: 630 A
- Applicable CT Type: Type T
- Ingress Protection: IP20
- Material: 2 mm mild steel
- Finish: Orange X15 gloss powder coating
- Gland Plates: Split gland plates supplied fitted
- CT Tray: Type T configuration
- Cable Entry: Top and bottom entry with side knockouts
- Cover: Lift-off cover with provision for sealing
- Conductor Capacity: One 300 mm² conductor per phase or two 185 mm² conductors per phase
- Included: Earth stud
- Not Included: Current transformers, SPD and M.E.N.
- Dimensions (H x L x W): 850mm x 250mm x 600mm
- Weight: 38 kg
Key Features
- Designed for 630A Type T current transformer metering applications
- Durable 2mm mild steel enclosure construction
- Orange X15 gloss powder-coated finish
- Split gland plates supplied fitted
- Top and bottom cable entry
- Side cable-entry knockout points
- Lift-off cover with sealing provision
- Suitable for commercial and industrial low-voltage metering installations
- Current transformers supplied separately
Professional Installation Requirements
- Installation, wiring and connection must be carried out by a licensed electrician or suitably qualified switchboard professional in accordance with applicable network-service-provider requirements, AS/NZS 3000 and AS/NZS 61439.
Applications
- Commercial CT metering installations
- Industrial CT metering installations
- Low-voltage switchboards rated up to 630A
- Electrical distribution boards requiring Type T CT accommodation
- Utility and network-approved metering arrangements
Standards & Compliance
- AS/NZS 61439 series for low-voltage switchgear and controlgear assemblies
- AS/NZS 3000 Wiring Rules for electrical installation and connection requirements
- Applicable electricity network Service and Installation Rules for CT metering installations
Environmental Benefits
- Mild steel construction can be recycled at end of service life
- Durable powder-coated finish helps extend service life and reduce replacement waste
- Long-life enclosure construction supports repair, reuse and maintenance of the wider switchboard assembly
Warranty Information
Bovara warranty details should be confirmed with the authorised distributor at the time of purchase. Australian Consumer Law guarantees apply where relevant.
Available Now
Available through authorised Bovara distributors in Australia.
