CT Chambers and Main Switch Enclosures Grey or 630A Echo Boards
Echo Boards CT Chambers and Main Switch Enclosures Grey or 630A — suited for building and fitting out LV switchgear enclosures.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications

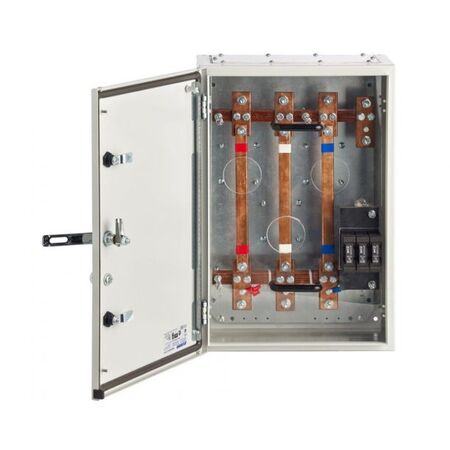

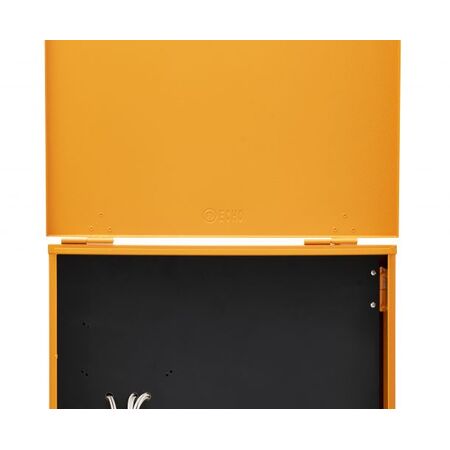

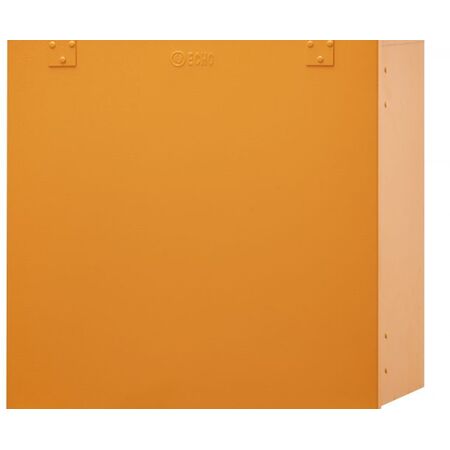

- Material: Metal hinged enclosure in grey or orange
- Current Ratings: Remote CT Chambers up to 630A
- Circuit Breakers: Adjustable 100-250A, 160-400A, 252-630A 3P

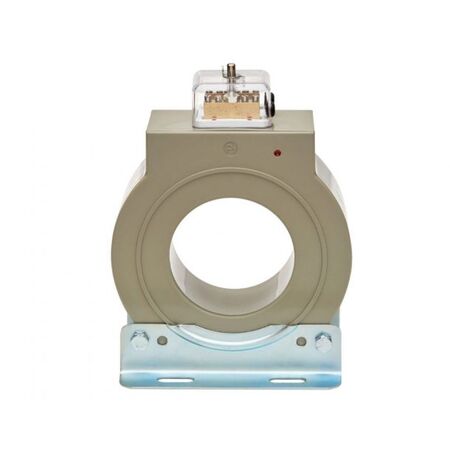

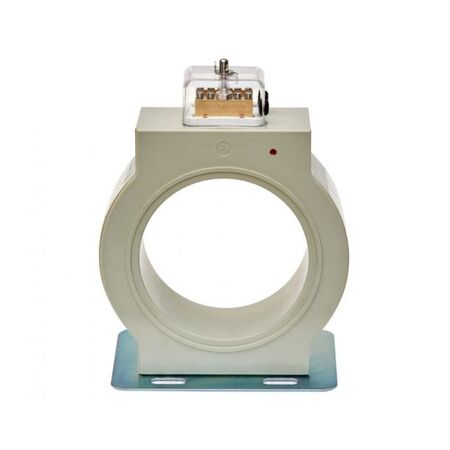

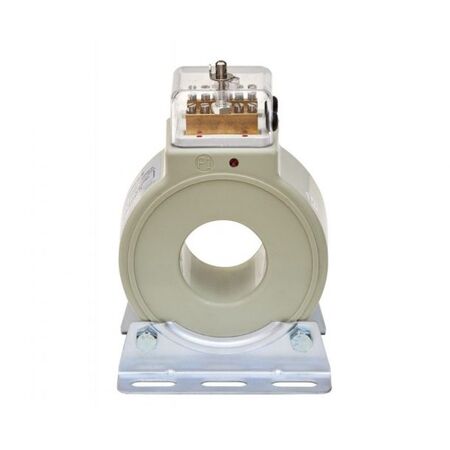

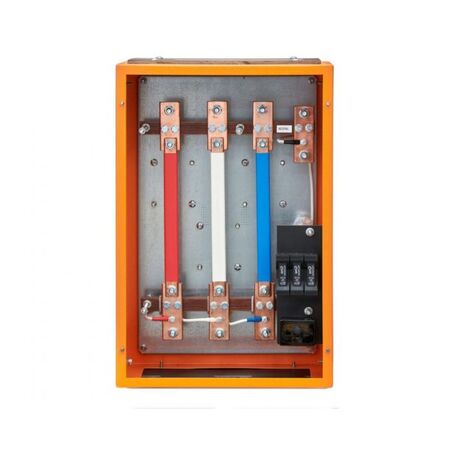

- CT Types: 'S' Type 200A, 'T' Type 400A, 'W' Type 800A
- Wiring: Internally wired and wall mount
- Tested to AS61439.1 and AS61439.2 standards
- Dimensions (H x L x W): 600mm x 300mm x 400mm
- Weight: 15 kg
Key Features

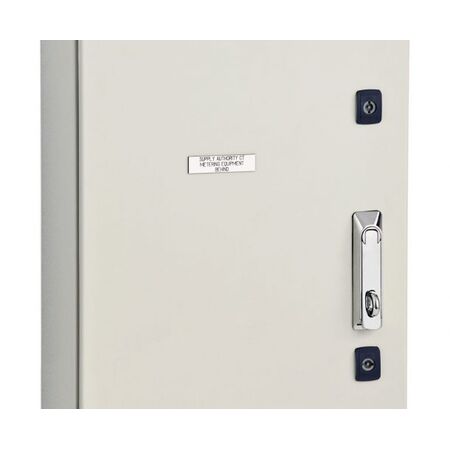

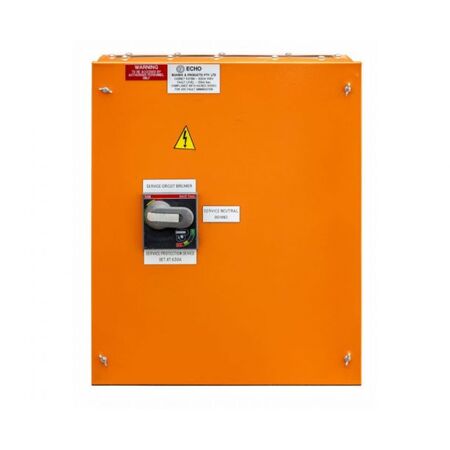

- Grey or orange metal hinged enclosure

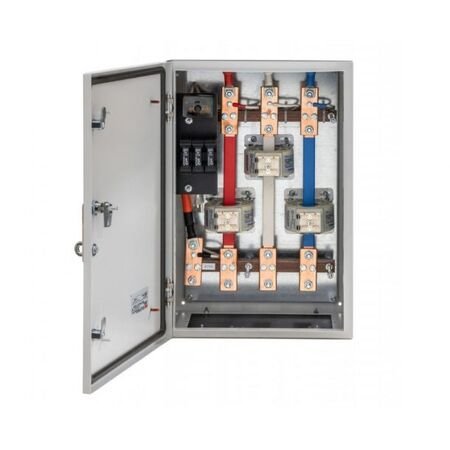

- Remote CT Chambers up to 630A and wall mount options

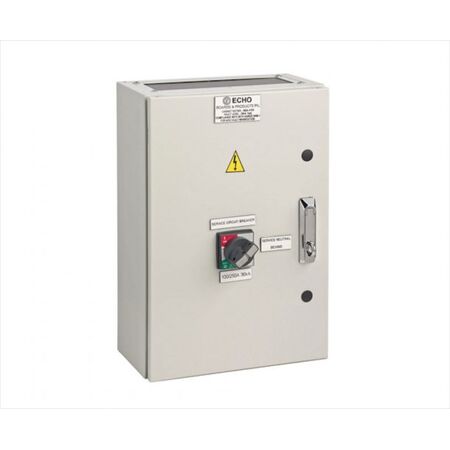

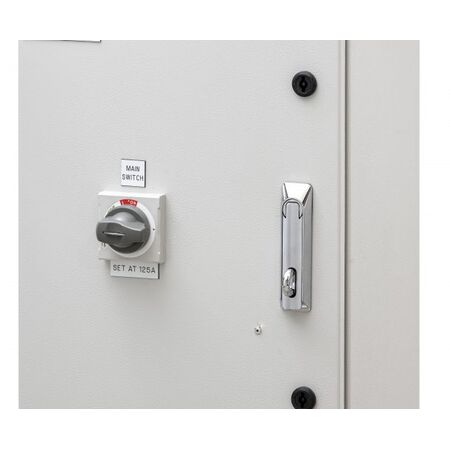

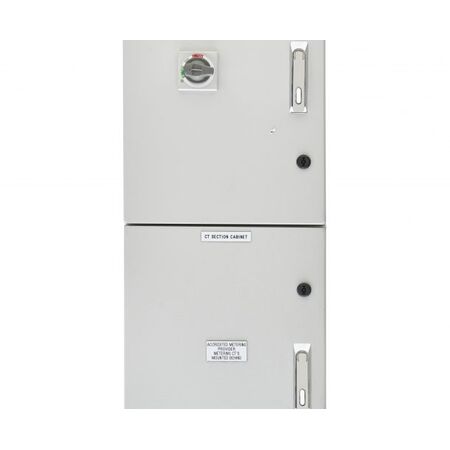

- Mounted Main Switch Enclosure with CT Chamber available

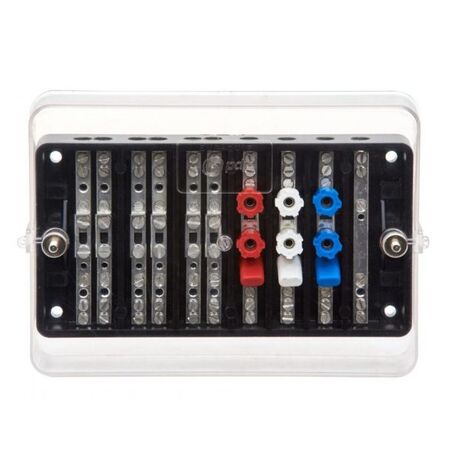

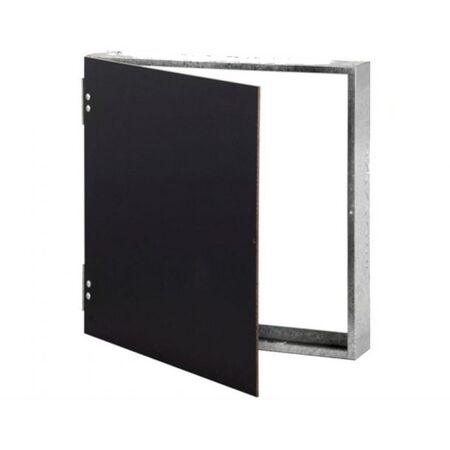

- Meter panel and surround with test block available as part of the board or remote mounted

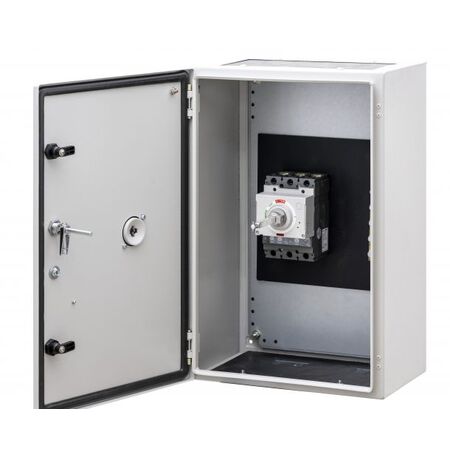

- Adjustable circuit breakers for 100-250A, 160-400A, and 252-630A

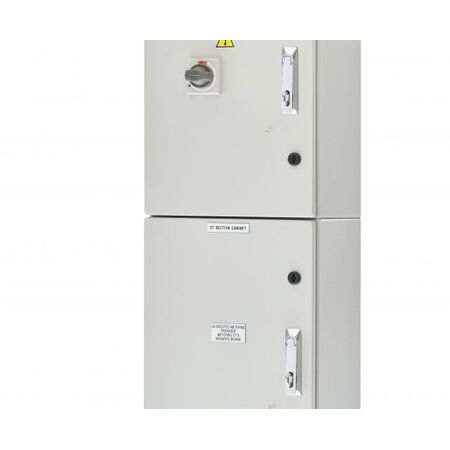

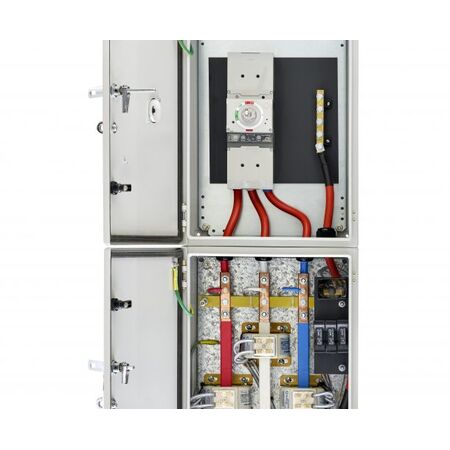

- Combination main switch enclosures with CT chambers supplied and installed
- Internally wired and wall mount design

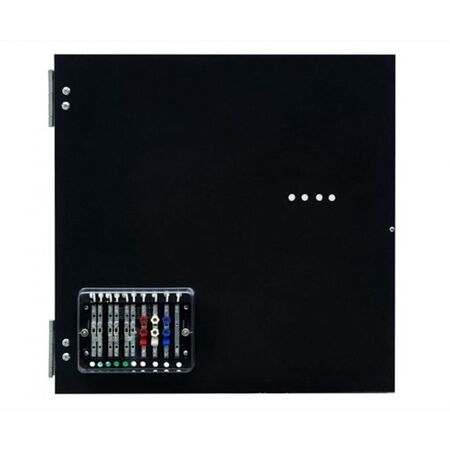

- Panel surrounds drilled out for CT meter and fitted with test block
- Wired assembly tested to AS61439.1 and AS61439.2
Professional Installation Requirements
- Professional installation by a licensed electrician is required to ensure compliance with electrical safety standards and proper wiring.
Applications
- Electrical distribution and metering installations
- Industrial and commercial electrical switchgear setups
- Wall-mounted main switch and CT chamber installations
Standards & Compliance
- Complies with AS/NZS 61439.1 – Low-voltage switchgear and controlgear assemblies - General rules
- Complies with AS/NZS 61439.2 – Power switchgear and controlgear assemblies
Environmental Benefits
- Durable metal construction extends product lifespan reducing waste
- Supports efficient electrical metering and management to optimize energy use
Warranty Information
Standard manufacturer warranty applies, typically 1 year against defects.
Available Now
Echo Boards CT Chambers and Main Switch Enclosures are available now for immediate purchase. Ideal for electrical distribution and metering applications in commercial and industrial settings.
