CT Chambers and Main Switch Enclosures | Grey or Orange Metal | Remote CT Chambers up to 630A | Wall Mount by Echo Boards
CT Chambers and Main Switch Enclosures with grey or orange metal hinged design and remote CT chambers up to 630A—ideal for industrial and commercial electrical installations. Built for safety and efficiency, with adjustable circuit breakers and wall mount options.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

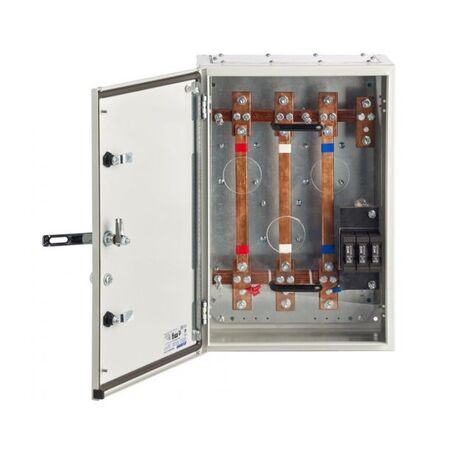

Product Name/Title: CT Chambers and Main Switch EnclosuresCT Chambers and Main Switch Enclosures
Brand: Echo Boards
SKU: MS BOX 250
Alternatively Known As: Current Transformer Chambers, Main Switch Boxes, Electrical Enclosures, CT Meter Enclosures, Circuit Breaker Enclosures
Technical Specifications

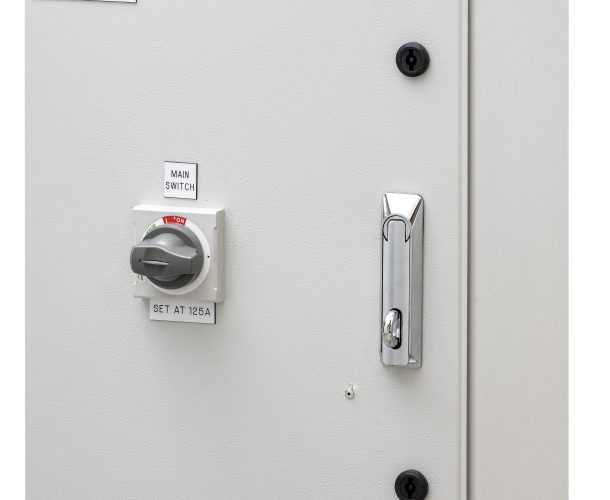

- Adjustable circuit breakers: MS BOX 250 (100-250A), MS BOX 400 (160-400A), MS BOX 630 (252-630A)
- Combination enclosures include main switch and CT chamber with ‘S’, ‘T’, or ‘W’ type CTs
- Panels include meter panel, surround, and test block supplied loose
- Wired assembly tested to AS61439.1 and AS61439.2 standards
- Wall mount installation
- Dimensions (H x L x W): 600mm x 250mm x 400mm
- Weight: 15 kg
Key Features

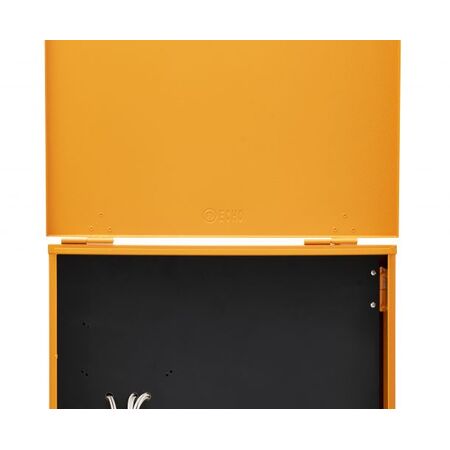

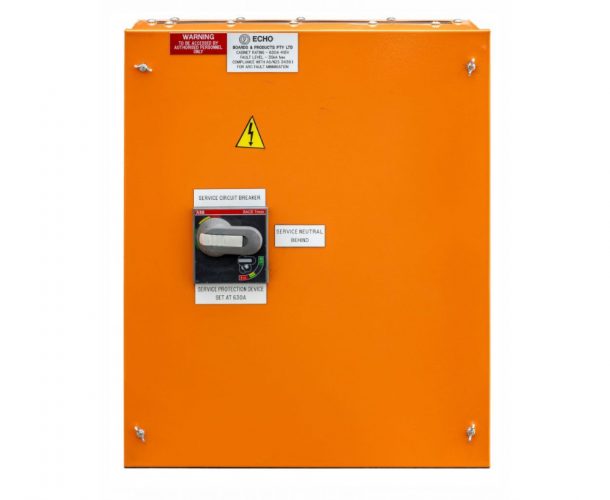

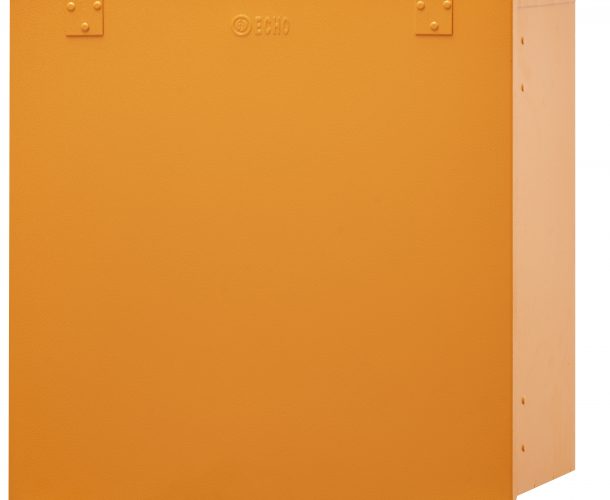

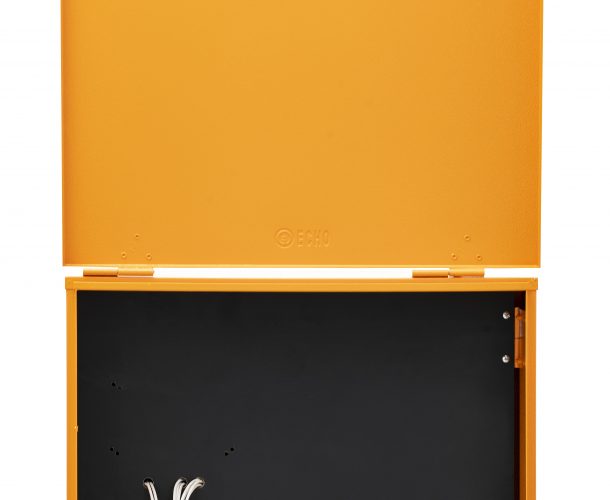

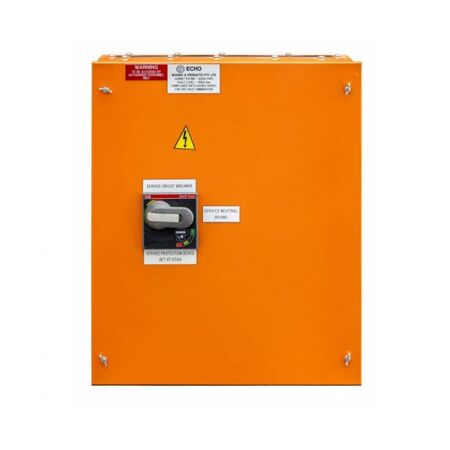

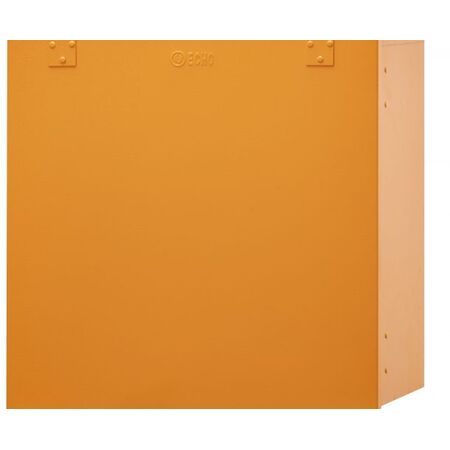

- Grey or orange metal hinged enclosure

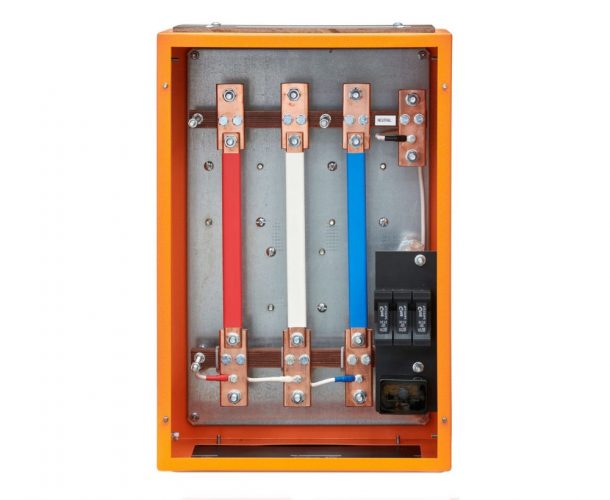

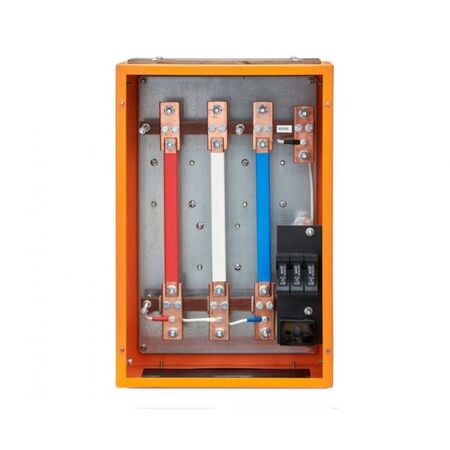

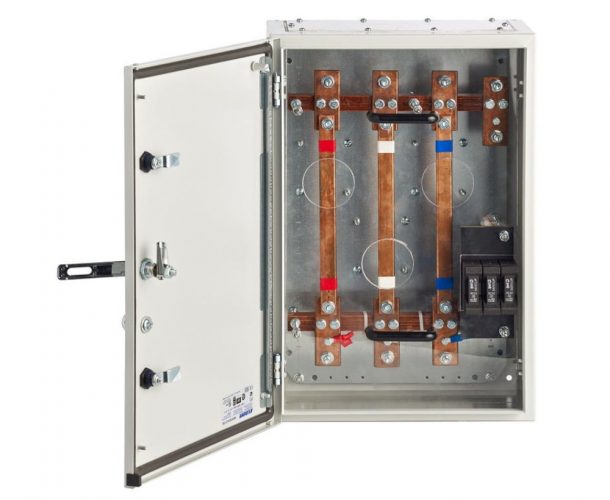

- Remote CT Chambers up to 630A and wall mount options

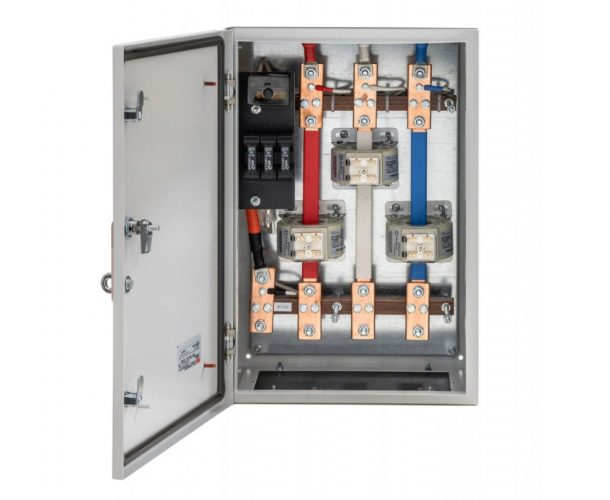

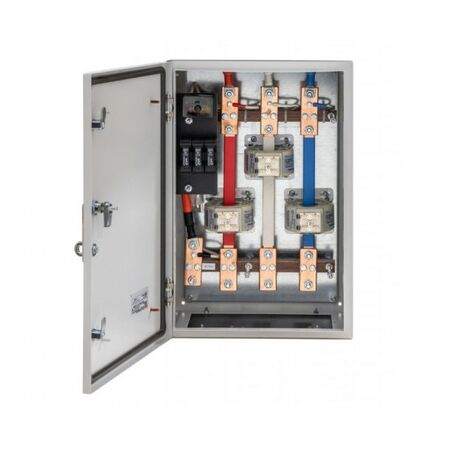

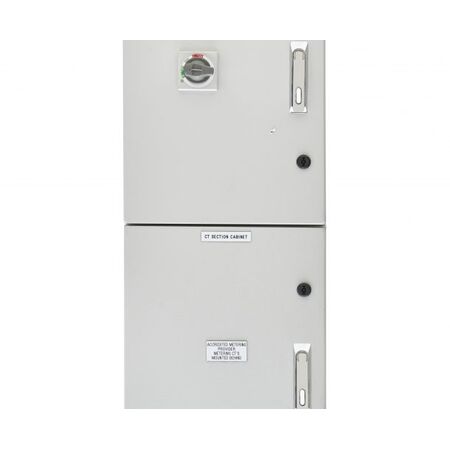

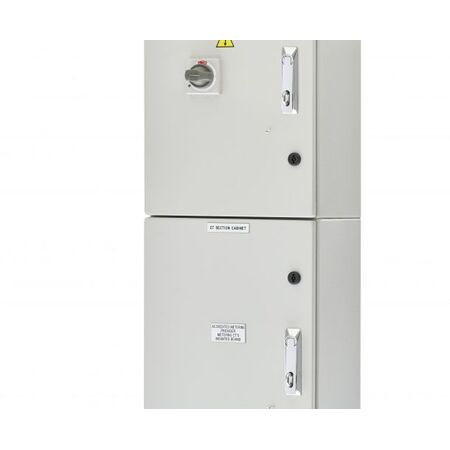

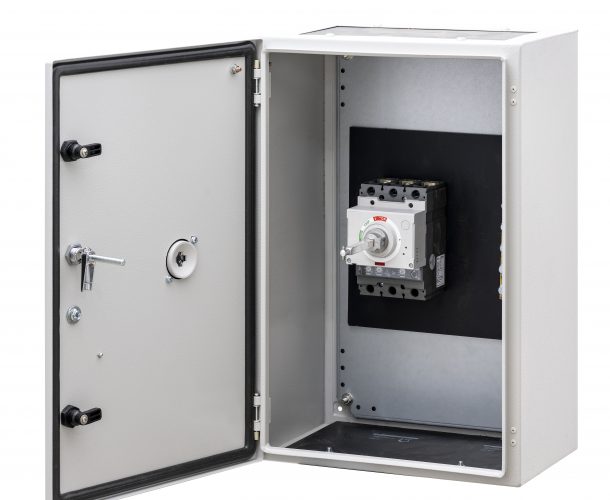

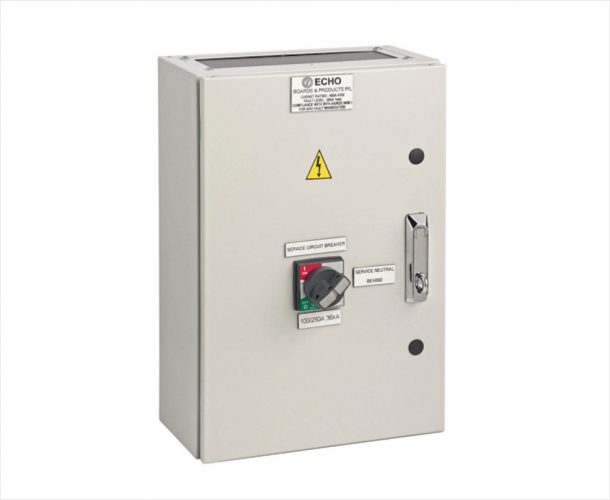

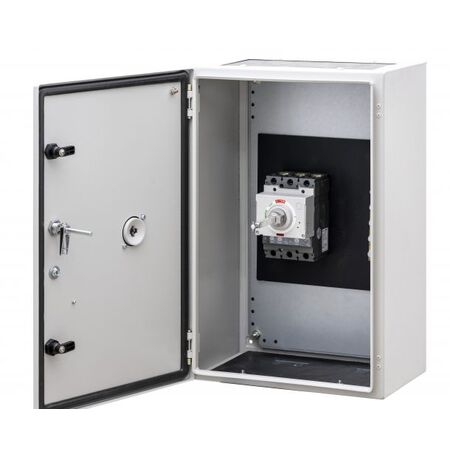

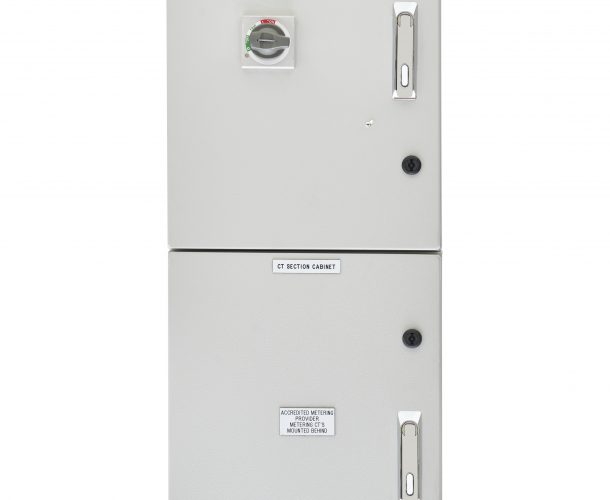

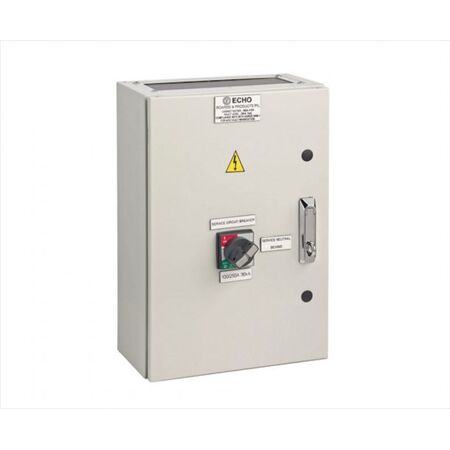

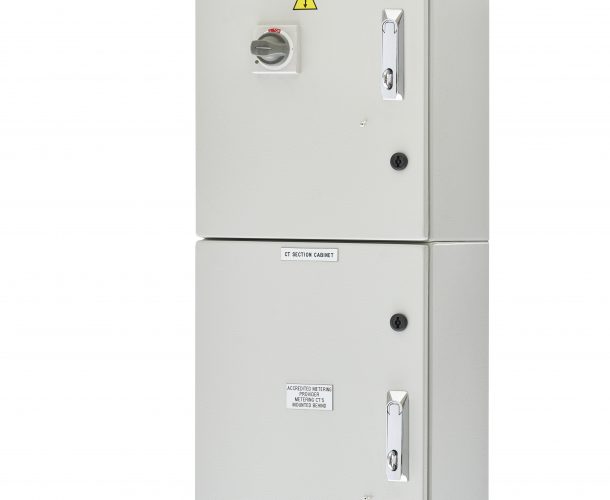

- Mounted Main Switch Enclosure with CT Chamber available

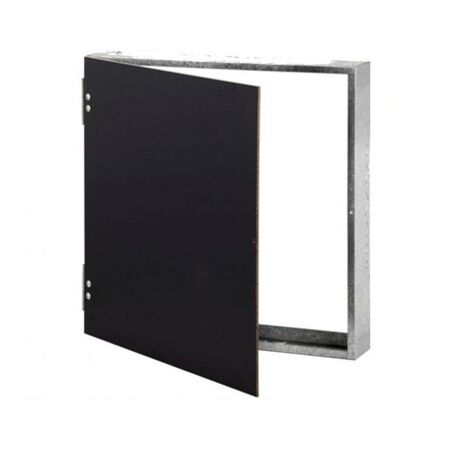

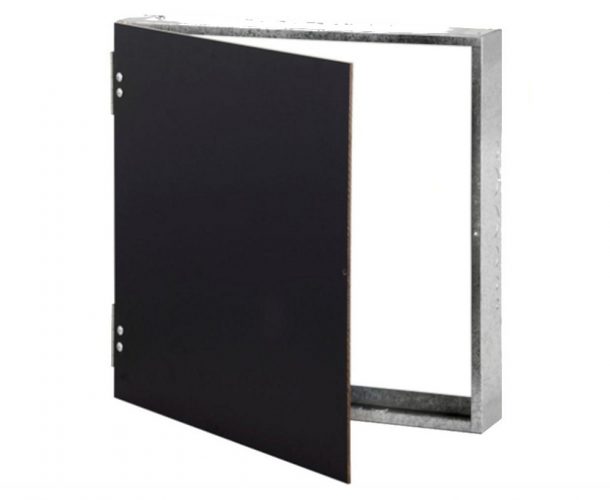

- Meter panel and surround with test block available as part of the board or remote mounted
- Adjustable circuit breakers ranging from 100-630A

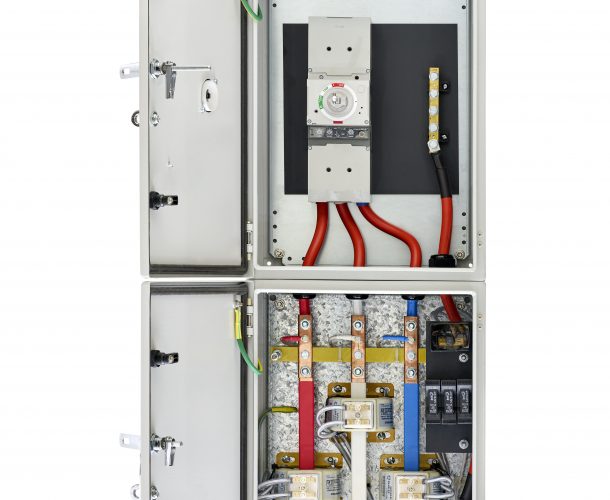

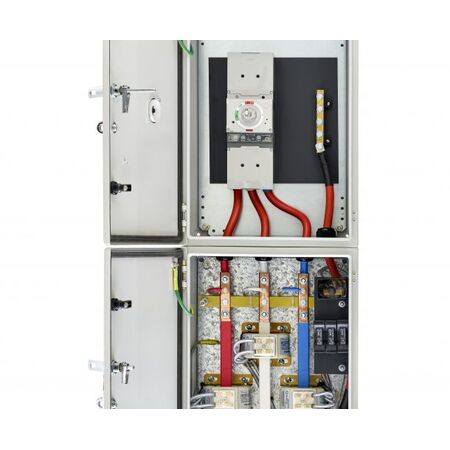

- Combination main switch enclosures with CT chambers supplied and installed

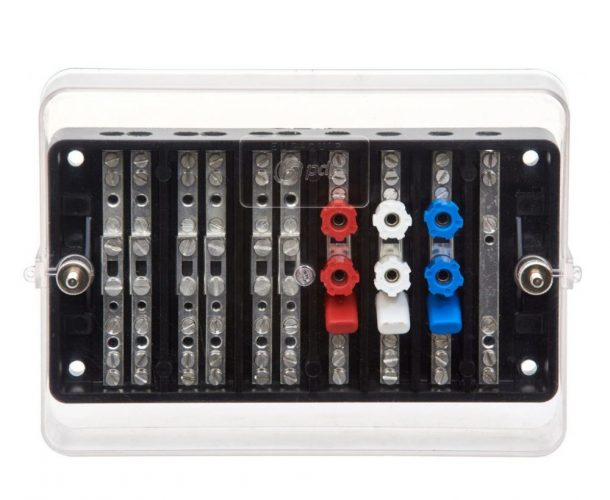

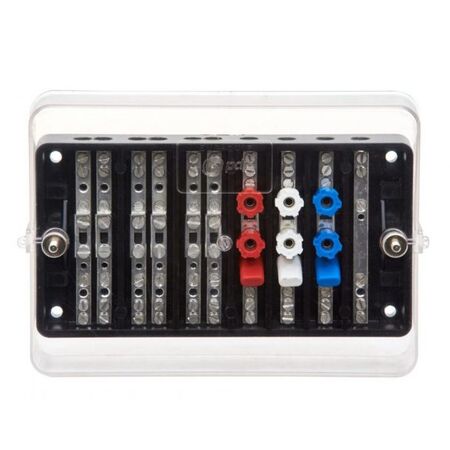

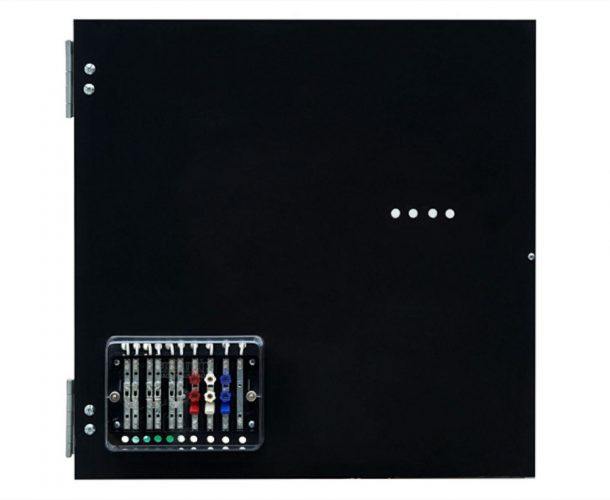

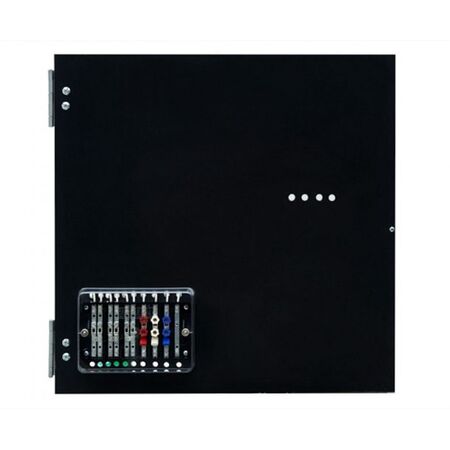

- Panels drilled out for CT meter and fitted with test block

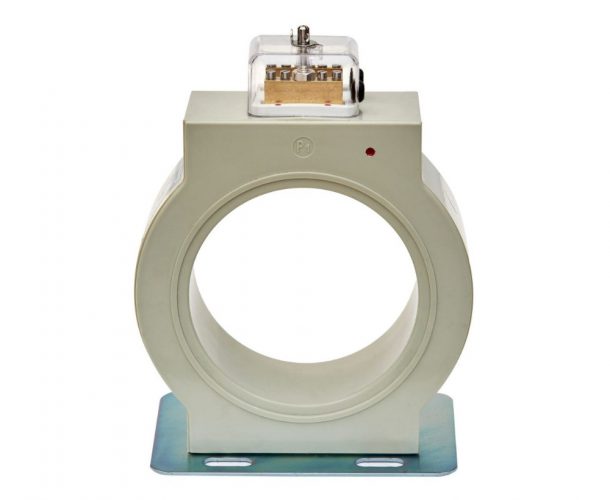

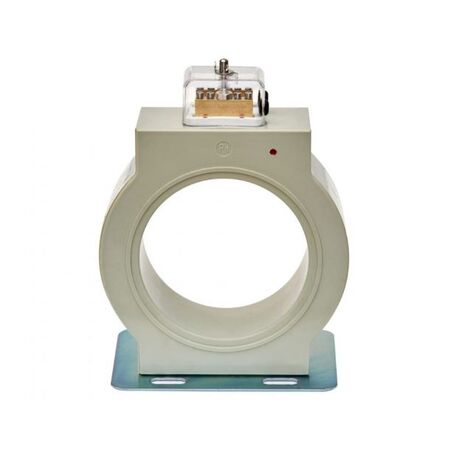

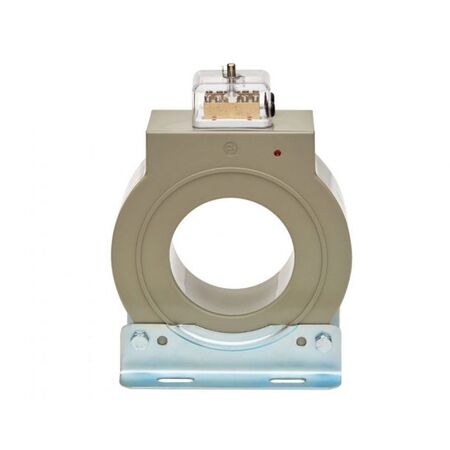

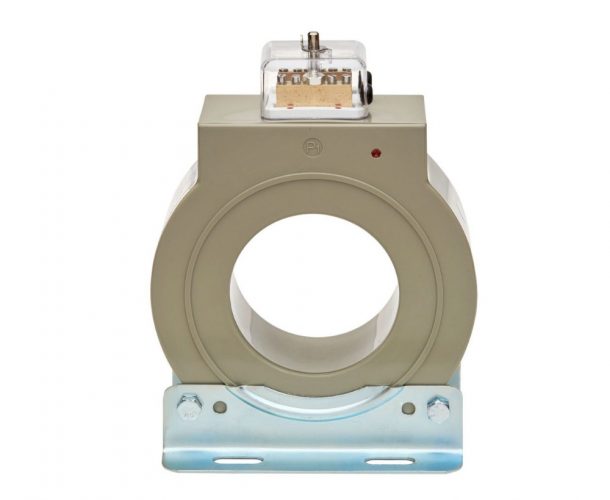

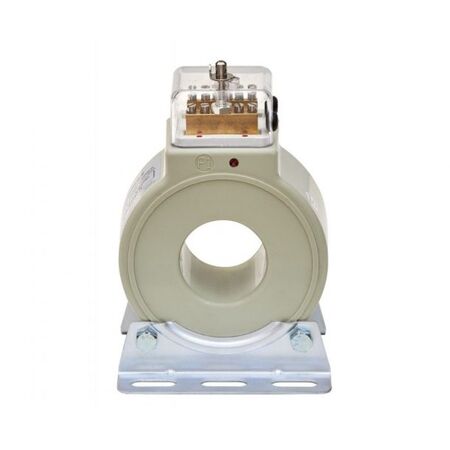

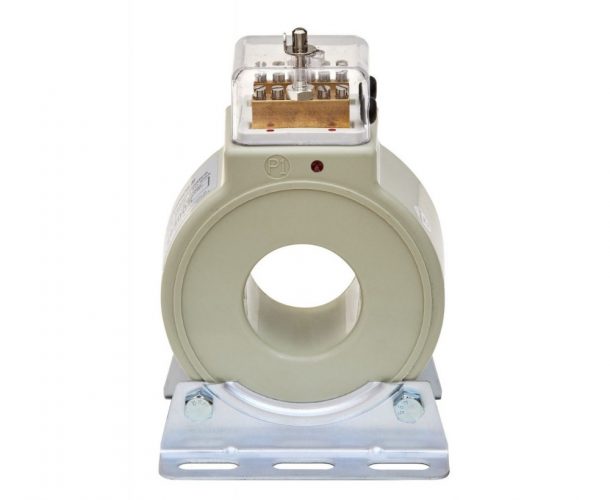

- Metering Current Transformers available in ‘S’, ‘T’, and ‘W’ types
- Wired assembly tested to AS61439.1 and AS61439.2
Professional Installation Requirements
- Professional installation by a licensed electrician is required to ensure compliance with electrical safety standards and proper integration with electrical systems.
Applications
- Electrical installations requiring CT chambers and main switch enclosures
- Industrial and commercial electrical distribution boards
- Wall-mounted electrical switchgear setups
Standards & Compliance
- Complies with AS/NZS 61439.1 – Low-voltage switchgear and controlgear assemblies – General rules
- Complies with AS/NZS 61439.2 – Power switchgear and controlgear assemblies
Environmental Benefits
- Durable metal construction extends product lifespan reducing waste
- Supports efficient electrical metering and safety, promoting energy management
Warranty Information
Standard manufacturer warranty applies. Please refer to Echo Boards for specific warranty details.
Available Now
Echo Boards CT Chambers and Main Switch Enclosures are available now for immediate purchase. Ideal for industrial and commercial electrical distribution applications.
