CT Chambers and Main Switch Enclosures | Grey or Orange Metal | Remote CT Chambers up to 630A | Wall Mount by Echo Boards
CT Chambers and Main Switch Enclosures with grey or orange metal hinged design and remote CT chambers up to 630A—ideal for industrial and commercial electrical installations. Built for safety and compliance, with adjustable circuit breakers and wall mount options for versatile use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

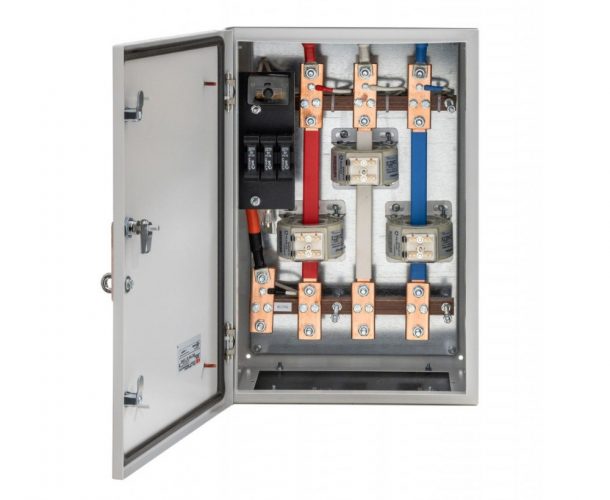

Product Name/Title: CT Chambers and Main Switch EnclosuresCT Chambers and Main Switch Enclosures
Brand: Echo Boards
SKU: MS BOX 400
Alternatively Known As: Current Transformer Chambers, Main Switch Boxes, CT Enclosures, Electrical Meter Enclosures, Circuit Breaker Enclosures
Technical Specifications
- Material: Metal hinged enclosure available in grey or orange
- Circuit Breaker Ratings: MS BOX 250 (100-250A), MS BOX 400 (160-400A), MS BOX 630 (252-630A)

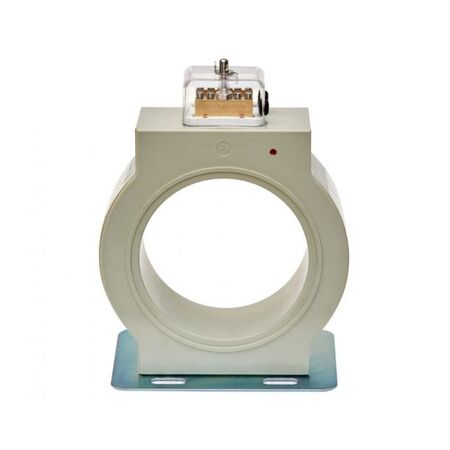

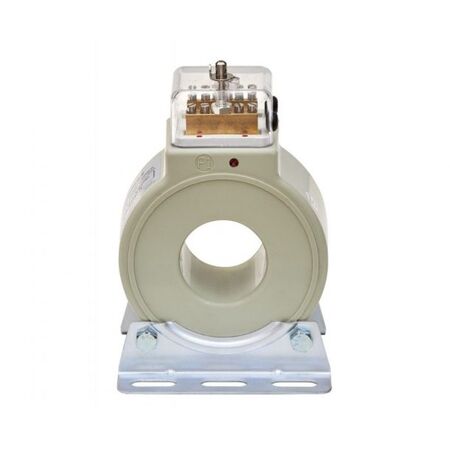

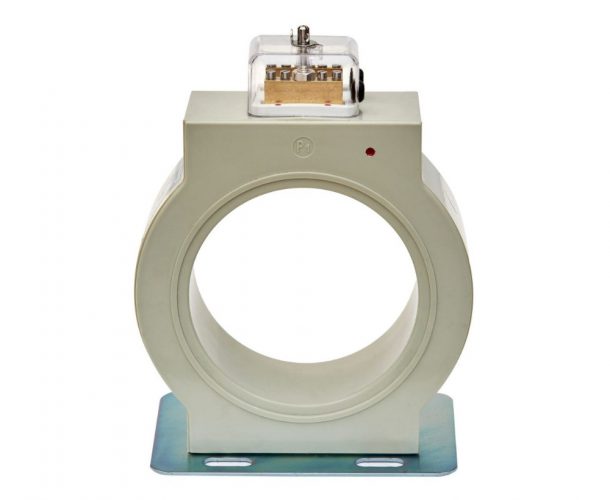

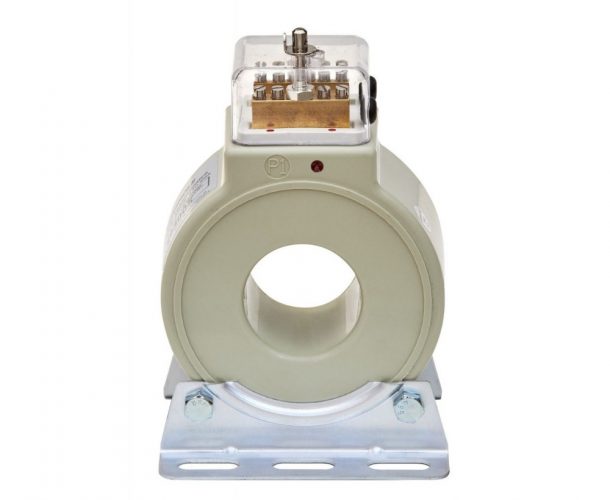

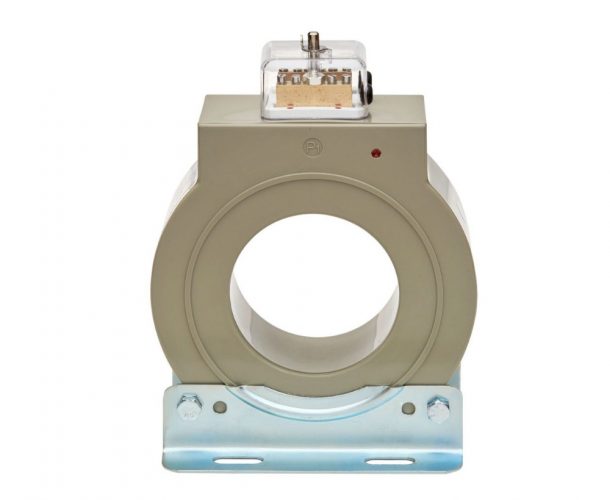

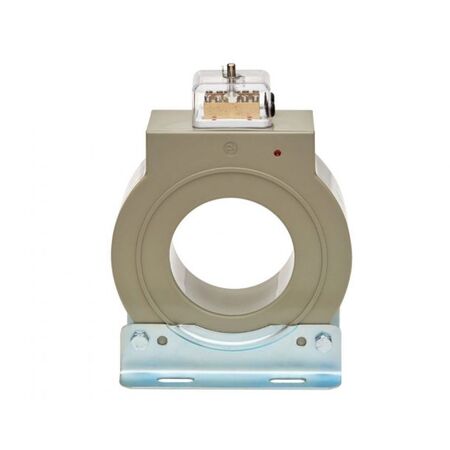

- CT Types: 'S' Type 200A, 'T' Type 400A, 'W' Type 800A
- Combination Enclosures: Internally wired and wall mount with panel and surround and test block supplied loose
- Compliance: Wired assembly tested to AS61439.1 and AS61439.2
- Dimensions (H x L x W): 600mm x 250mm x 400mm
- Weight: 15 kg
Key Features

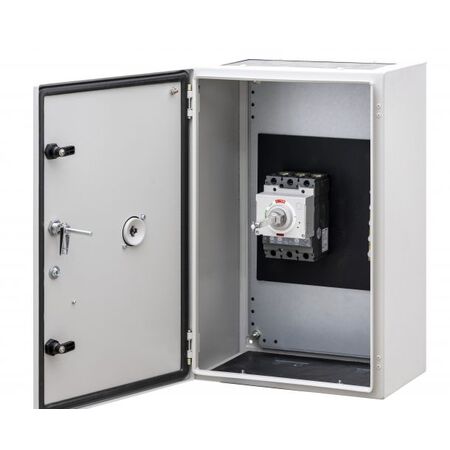

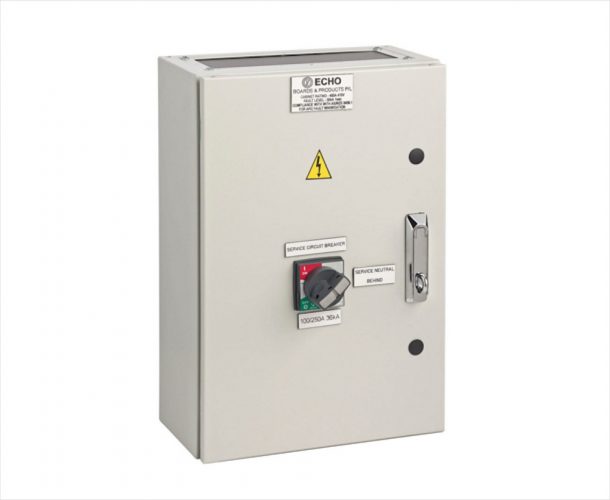

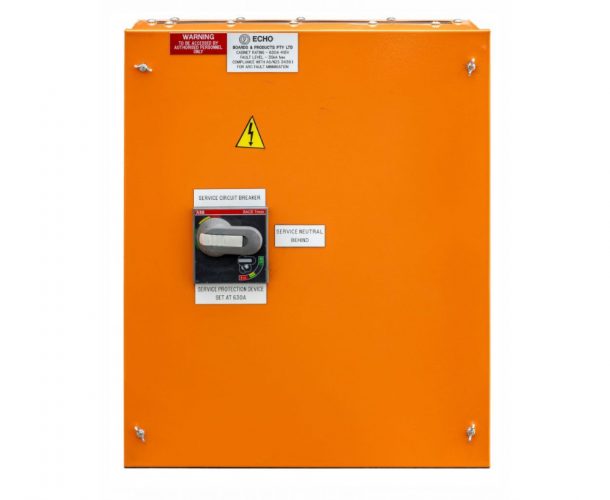

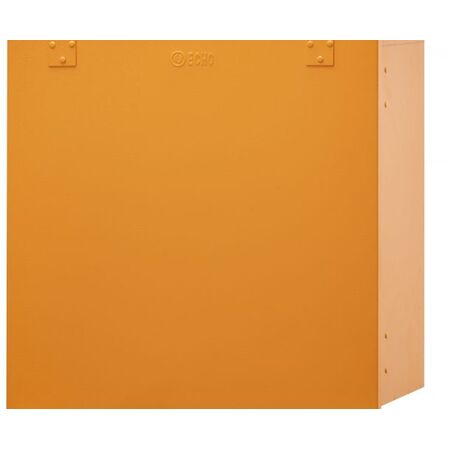

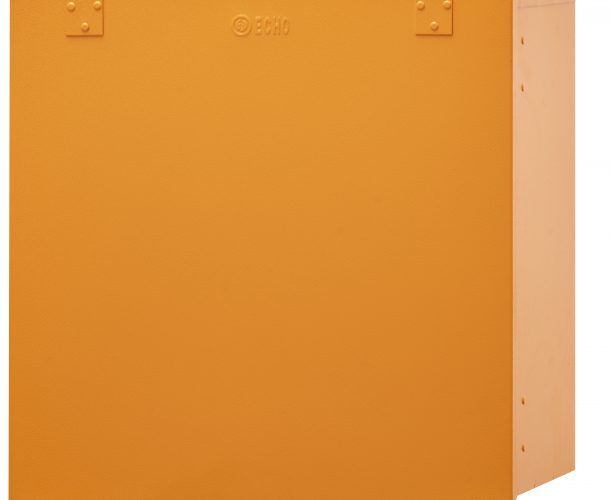

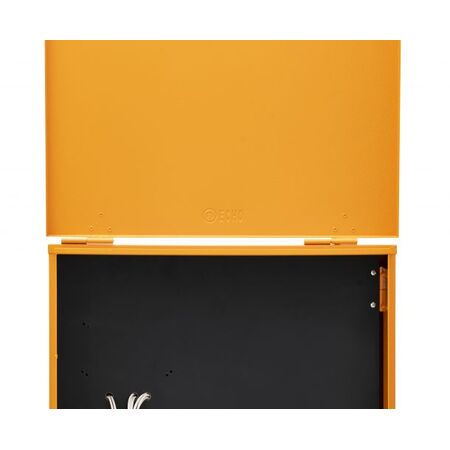

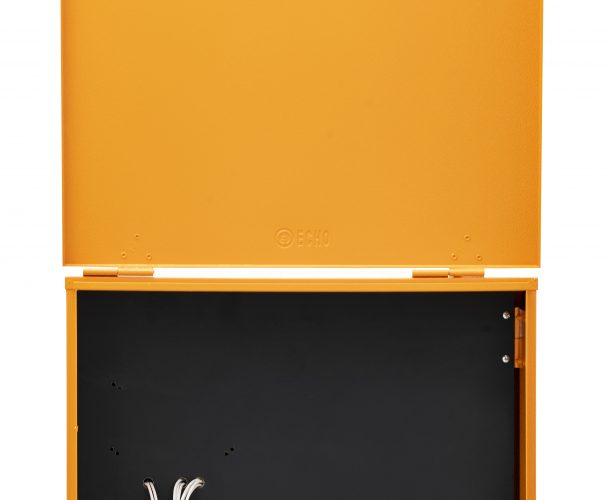

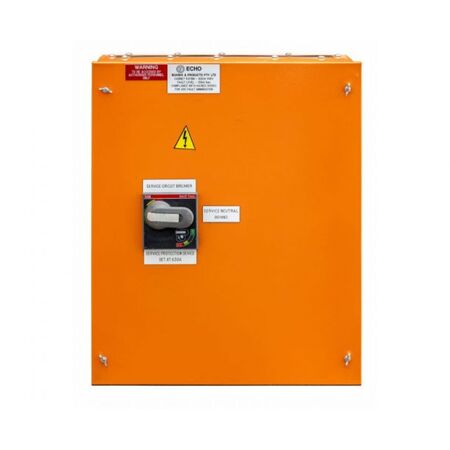

- Grey or orange metal hinged enclosure

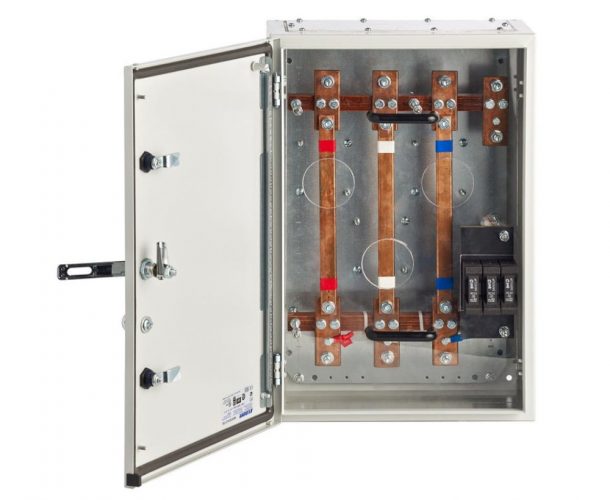

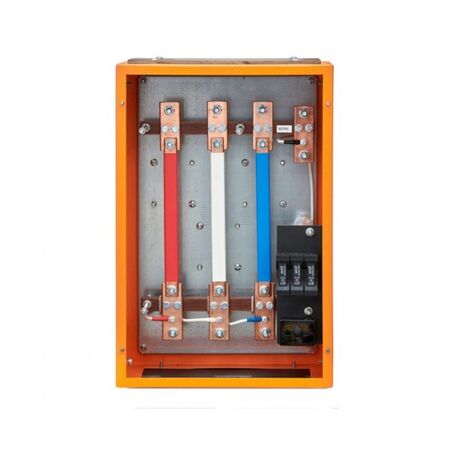

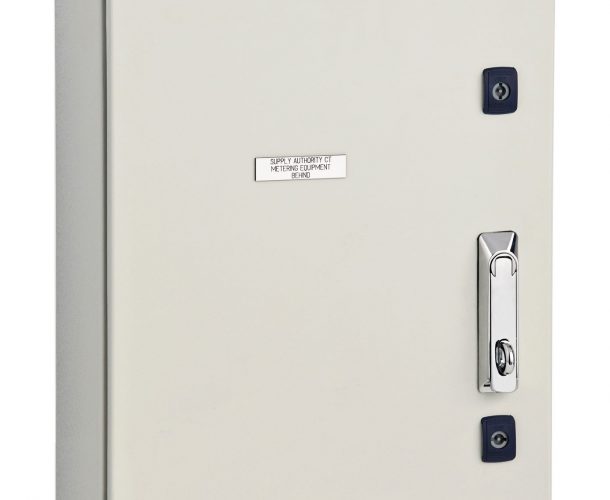

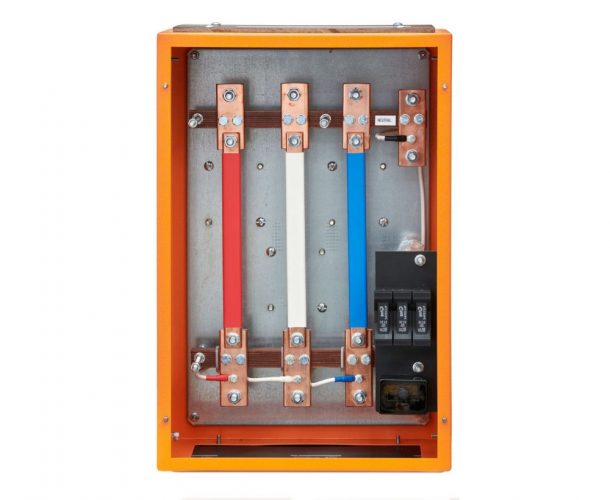

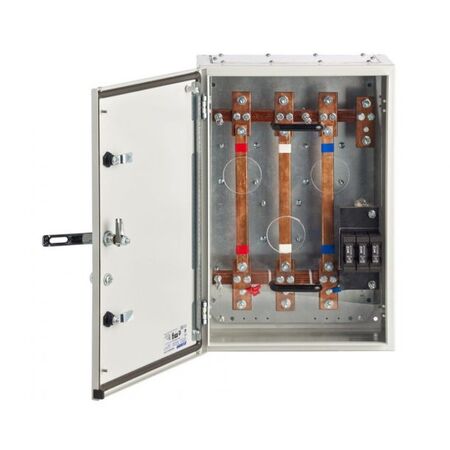

- Remote CT Chambers up to 630A and wall mount options

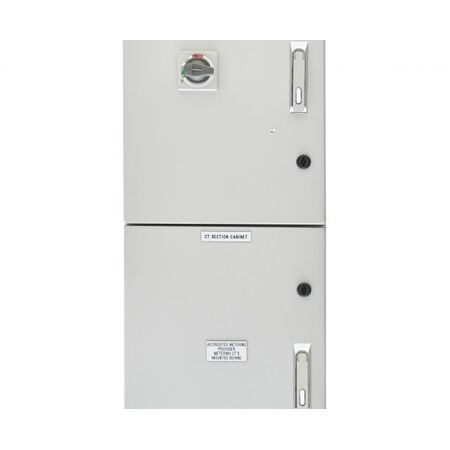

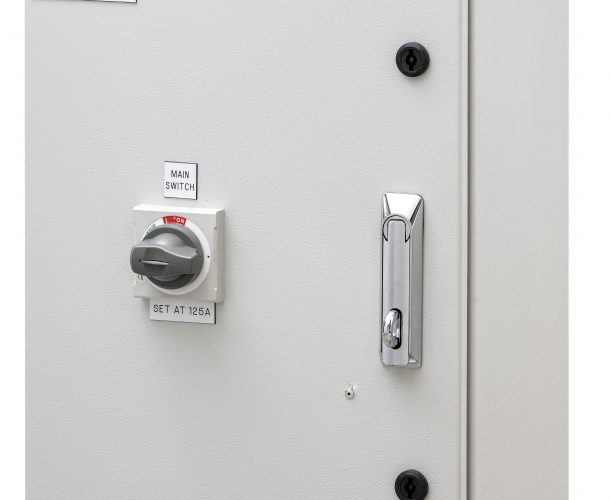

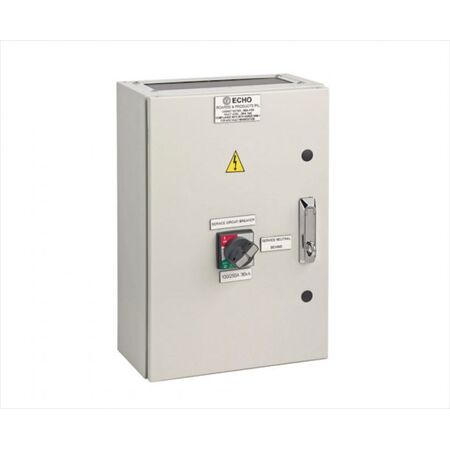

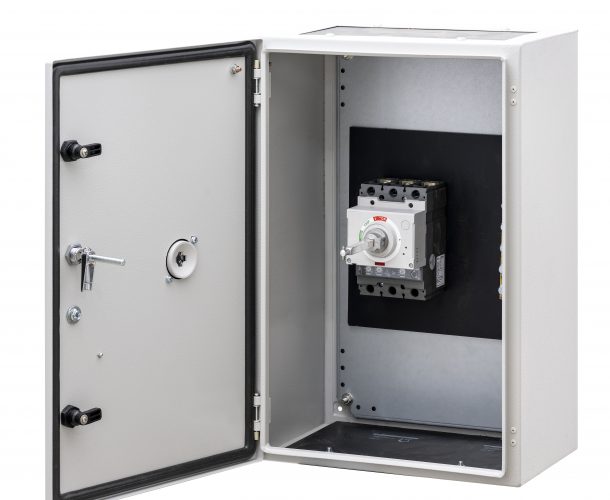

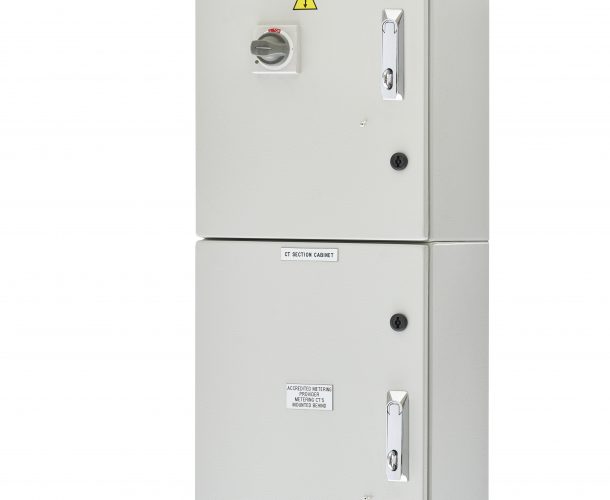

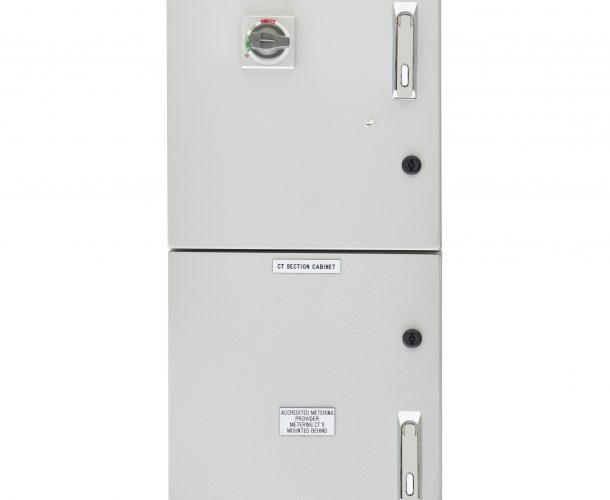

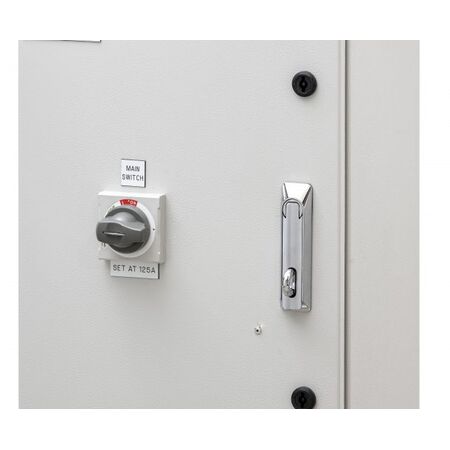

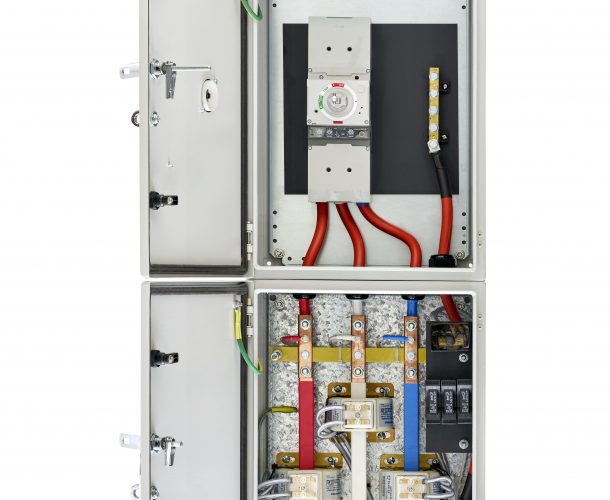

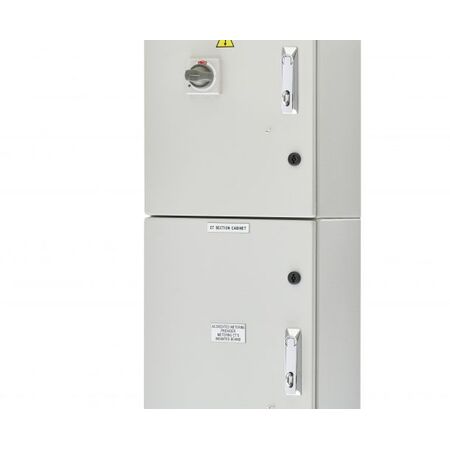

- Mounted Main Switch Enclosure with CT Chamber available

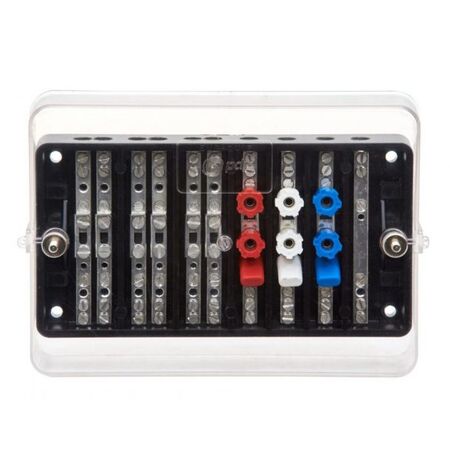

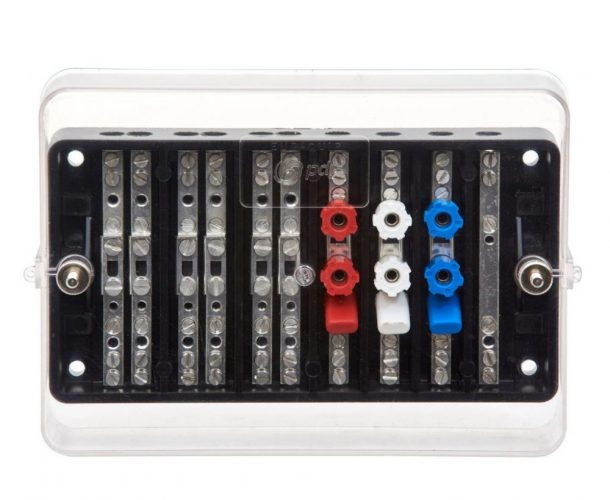

- Meter panel and surround with test block available as part of the board or remote mounted
- Adjustable circuit breakers ranging from 100A to 630A

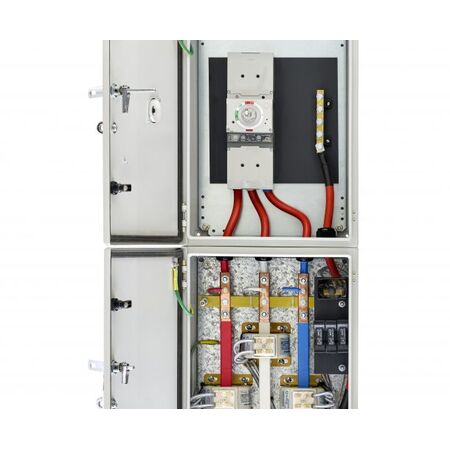

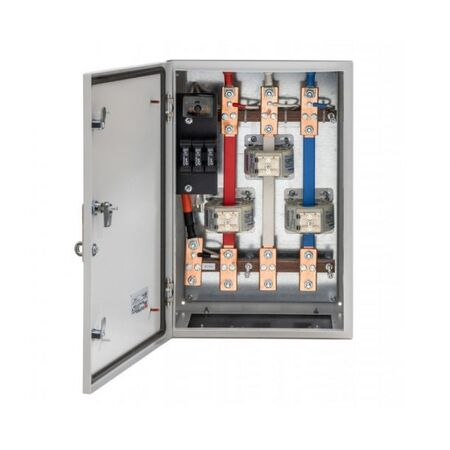

- Combination main switch enclosures with CT chambers supplied and installed
- Internally wired and wall mount design

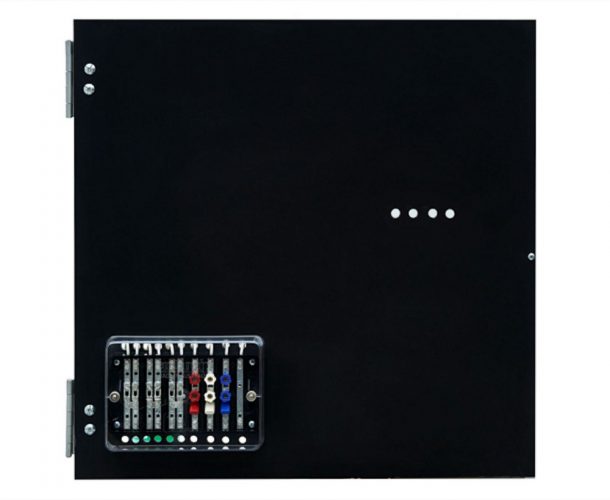

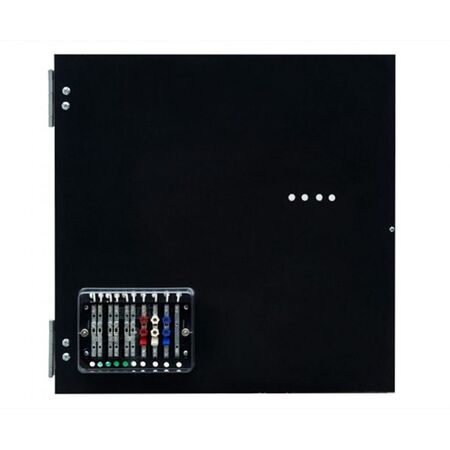

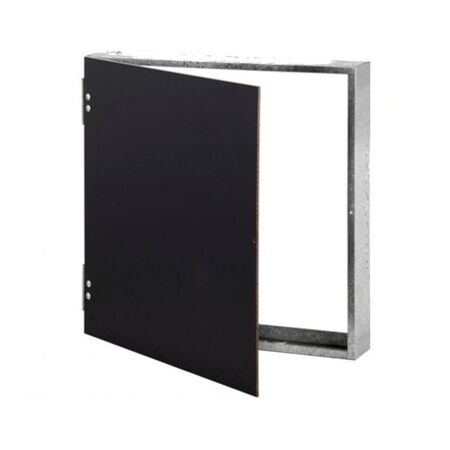

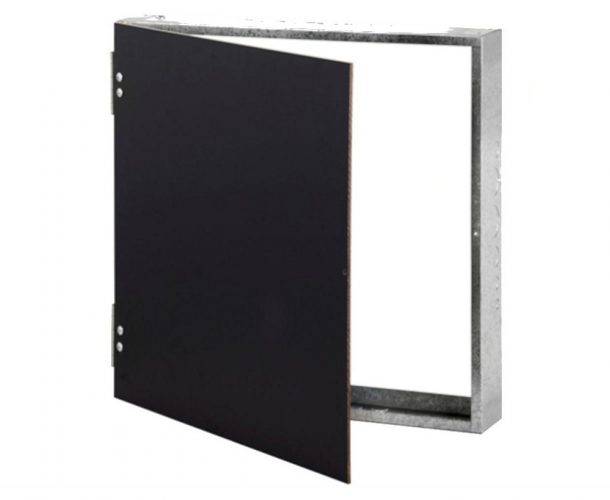

- Panel surrounds drilled out for CT meter and fitted with test block
- Wired assembly tested to AS61439.1 and AS61439.2
Professional Installation Requirements
- Installation by a licensed electrician is required to ensure compliance with electrical safety standards and proper wiring.
Applications
- Electrical installations requiring CT chambers and main switch enclosures
- Industrial and commercial electrical panels
- Metering and circuit breaker housing
Standards & Compliance
- Complies with AS/NZS 61439.1 – Low-voltage switchgear and controlgear assemblies – General rules
- Complies with AS/NZS 61439.2 – Power switchgear and controlgear assemblies
Environmental Benefits
- Durable metal construction reduces need for frequent replacements
- Supports efficient electrical metering and safety, contributing to energy management
Warranty Information
Standard manufacturer warranty applies. Please refer to Echo Boards for specific warranty details.
Available Now
Echo Boards CT Chambers and Main Switch Enclosures are available now for immediate purchase. Ideal for industrial, commercial, and residential electrical installations requiring reliable CT and main switch housing.
