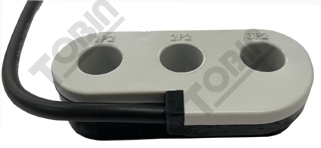

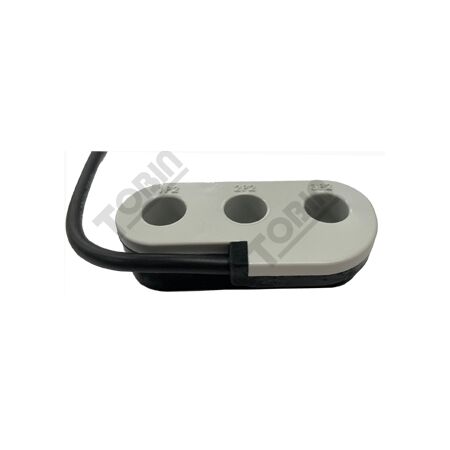

CT MC3-125 125A 250mA Secondary Cable | 3 IN1 Compact Transformer | Pre-Wired 2 Metres | by Tobin
The CT MC3-125 125A 250mA Secondary Cable is a 3 IN1 compact current transformer designed for precise electrical metering and monitoring. With a primary current rating of 125A and a pre-wired 2 metre secondary cable, it’s perfect for residential, commercial, and industrial applications. This transformer supports energy management systems, ensuring efficient power usage and compliance with AS/NZS 3000 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CT MC3-125 125A 250mA Secondary Cable | 3 IN1 Compact Transformer | Pre-Wired 2 Metres | by Tobin
Brand: Tobin
SKU: M73122
Alternatively Known As: Current Transformer 125A, CT 125A 3 IN1, Compact Current Transformer 125A
Technical Specifications
- Primary Current Rating: 125A
- Secondary Current: 250mA
- Cable Length: 2 metres pre-wired
- Type: 3 IN1 Compact Current Transformer
- Dimensions (H x L x W): 50mm x 100mm x 50mm
- Weight: 0.5 kg
Key Features
- 3 IN1 compact current transformer
- Rated for 125A primary current
- Pre-wired with 2 metre secondary cable
- 250mA secondary current output
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper connection.
Applications
- Electrical metering and monitoring in residential, commercial, and industrial electrical installations
- Current measurement for energy management systems
- Integration with circuit protection and control devices
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables accurate energy monitoring to support energy efficiency initiatives
- Supports integration with energy management systems to reduce power consumption
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Tobin CT MC3-125 125A 250mA Secondary 2 Metre Cable is available now for immediate purchase. Ideal for electrical metering and energy management applications.
