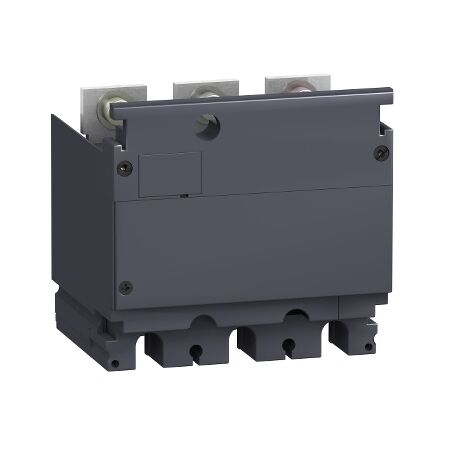

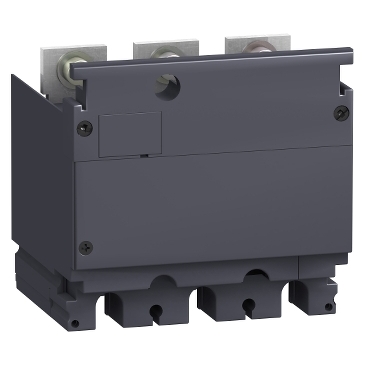

CT Module 3P 125A | 5A Secondary Output | Compatible with NSX Circuit Breakers | by Clipsal
The CT Module 3P 125A is a current transformer module designed for accurate current measurement in electrical distribution panels. With a primary current rating of 125A and a 5A secondary output, it is compatible with ComPact NSX100/160/250 circuit breakers, making it ideal for energy monitoring systems and industrial switchboards. Ensure professional installation for compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CT Module 3P 125A | 5A Secondary Output | Compatible with NSX Circuit Breakers | by Clipsal
Brand: Clipsal
SKU: SCHLV429461
Alternatively Known As: Clipsal current transformer module, 3 phase CT module, 125A CT module, SCHLV429461, NSX CT module
Technical Specifications
- Type: Current Transformer Module
- Number of Poles: 3
- Primary Current: 125A
- Secondary Output: 5A
- Voltage Output: Compatible with metering devices
- Compatibility: ComPact NSX100/160/250 circuit breakers
- Mounting: Panel mount
- Dimensions (H x L x W): 80mm x 120mm x 90mm
- Weight: 0.7 kg
Key Features
- Current transformer module for 3 poles
- Rated for 125A primary current
- 5A secondary output
- Compatible with ComPact NSX100/160/250 circuit breakers
- Facilitates accurate current measurement and monitoring
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with Australian electrical standards and safe operation.
Applications
- Electrical distribution panels
- Energy monitoring systems
- Industrial switchboards
- Commercial and residential metering
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables precise energy monitoring, supporting energy efficiency initiatives
- Assists in load management to reduce unnecessary power consumption
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal CT Module 3P 125 5A (SCHLV429461) is available for immediate purchase. Ideal for electrical distribution panels and energy monitoring applications.
