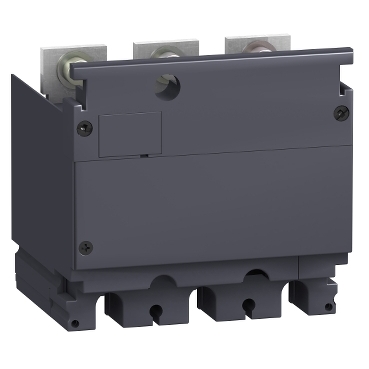

CT Module 3P 150 5A | Three-Phase Current Transformer | High Accuracy | Compact Design | @Pack of 1 | by Clipsal
The CT Module 3P 150 5A is a three-phase current transformer module designed for precise electrical metering in commercial and industrial applications. With a primary current of 150A and a secondary current of 5A, it ensures high accuracy and reliable performance. Its compact design allows for easy integration into switchboards, making it ideal for energy management systems and power monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CT Module 3P 150 5A | Three-Phase Current Transformer | High Accuracy | Compact Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLV430561
Alternatively Known As: Clipsal 3 Phase CT Module, Clipsal Current Transformer 150/5A, SCHLV430561 CT, Clipsal CT 3P 150A, Clipsal LV430561
Technical Specifications
- Type: Three-phase current transformer module
- Primary current: 150A
- Secondary current: 5A
- Frequency: 50/60Hz
- Accuracy class: 1
- Insulation voltage: 720V
- Mounting: DIN rail or panel mount
- Operating temperature: -5°C to +40°C
- Dimensions (H x L x W): 100mm x 80mm x 120mm
- Weight: 1.2 kg
Key Features
- Three-phase current transformer module
- Primary current: 150A, Secondary current: 5A
- High accuracy for reliable metering
- Compact and robust design
- Easy integration into switchboards
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules and local regulations.
Applications
- Commercial and industrial electrical metering
- Energy management systems
- Switchboards and distribution panels
- Power monitoring and protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables precise energy monitoring for improved energy efficiency
- Supports load management and reduction of unnecessary power consumption
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal CT Module 3P 150/5A (SCHLV430561) is available for immediate purchase. Ideal for commercial and industrial switchboards requiring accurate current measurement.
