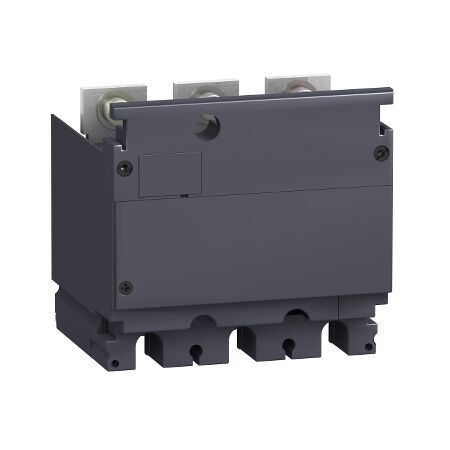

CT Module 3P 250A 5A | Current Transformer for 3-Phase Systems | Accurate Measurement | by Clipsal
The CT Module 3P 250A 5A is a current transformer module designed for 3-phase systems, offering a primary current rating of 250A and a secondary output of 5A. Ideal for electrical switchboards and energy monitoring systems, it ensures accurate current measurement and monitoring, making it perfect for industrial and commercial power distribution.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CT Module 3P 250A 5A | Current Transformer for 3-Phase Systems | Accurate Measurement | by Clipsal
Brand: Clipsal
SKU: SCHLV431569
Alternatively Known As: Current Transformer Module 3P 250A 5A, Clipsal SCHLV431569, NSX250 CT Module, 3-Phase CT Module 250A, Clipsal Current Transformer 250A
Technical Specifications
- Type: Current Transformer Module
- Primary Current: 250A
- Secondary Output: 5A
- Poles: 3 (Three-phase)
- Compatible with: ComPact NSX250 circuit breakers
- Voltage output for metering integration
- Dimensions (H x L x W): 80mm x 100mm x 120mm
- Weight: 1.2 kg
Key Features
- Current transformer module for 3-phase systems
- Compatible with ComPact NSX250 circuit breakers
- 250A primary current rating
- 5A secondary output
- 3-pole configuration
- Facilitates accurate current measurement and monitoring
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with Australian electrical standards and safe operation.
Applications
- Electrical switchboards
- Energy monitoring systems
- Industrial and commercial power distribution
- Integration with circuit breakers for metering and protection
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient energy monitoring and management
- Supports load optimization to reduce energy waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal CT Module 3P 250 5A (SCHLV431569) is available for immediate purchase. Ideal for integration in commercial and industrial switchboards requiring accurate current measurement and monitoring.
