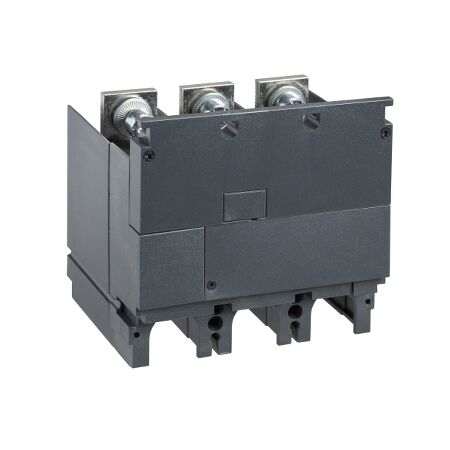

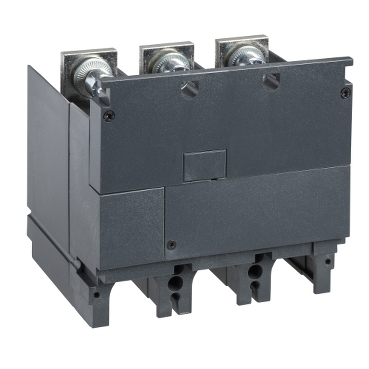

CT Module 3P 400A 5A | High Accuracy Current Transformer | Compact Design | by Clipsal
The CT Module 3P 400A 5A is a high-accuracy current transformer module designed for three-phase systems. With a primary current rating of 400A and a secondary output of 5A, it ensures reliable energy measurement for commercial and industrial applications. Its compact design allows for easy integration into panels, making it ideal for energy monitoring and metering systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CT Module 3P 400A 5A | High Accuracy Current Transformer | Compact Design | by Clipsal
Brand: Clipsal
SKU: SCHLV432653
Alternatively Known As: Clipsal 3 Phase CT Module, Clipsal Current Transformer 400A 5A, SCHLV432653 CT, Clipsal LV432653, 3P 400A CT Module
Technical Specifications
- Type: Current Transformer Module
- Phases: 3 (Three-phase)
- Primary Current: 400A
- Secondary Current: 5A
- Accuracy Class: 1
- Frequency: 50/60Hz
- Mounting: Panel or DIN rail
- Insulation Voltage: 720V AC
- Operating Temperature: -5°C to +40°C
- Dimensions (H x L x W): 80mm x 100mm x 120mm
- Weight: 0.8 kg
Key Features
- Three-phase current transformer module
- Rated for 400A primary and 5A secondary output
- High accuracy for reliable energy measurement
- Compact design for easy integration into panels
- Suitable for use with energy meters and monitoring devices
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Commercial and industrial electrical panels
- Energy monitoring and metering systems
- Switchboards and distribution boards
- Power quality analysis
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables precise energy monitoring to support energy efficiency initiatives
- Assists in reducing unnecessary power consumption through accurate load measurement
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal CT Module 3P 400 5A (SCHLV432653) is available for immediate purchase. Ideal for commercial and industrial energy monitoring and metering applications.
